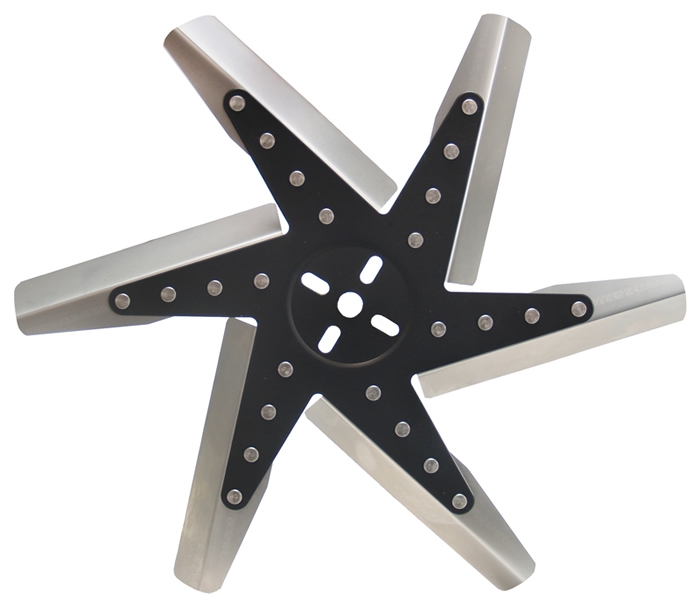

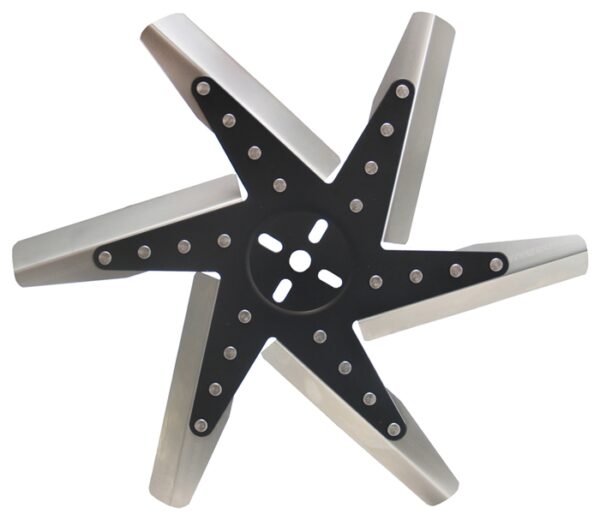

17″ High Performance Stainless Steel Reverse Rotation Flex Fan, Black Hub

Description

This 17″ high performance, reverse rotation flex fan features 6 stainless steel blades and a black powder coated hub and is rated for engine speeds up to 8,000 rpm. Great for applications where space is at a premium.

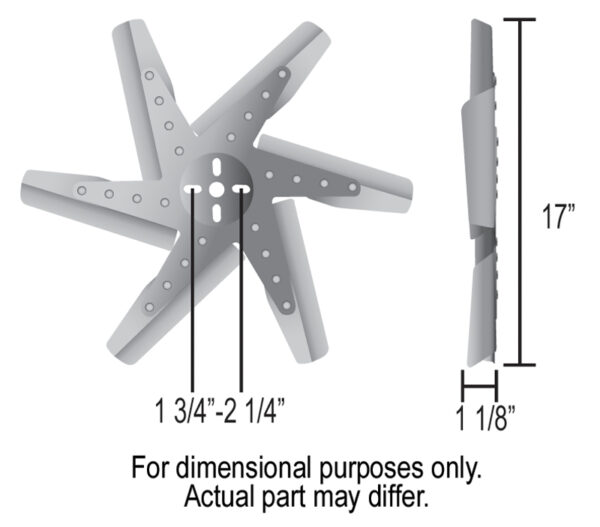

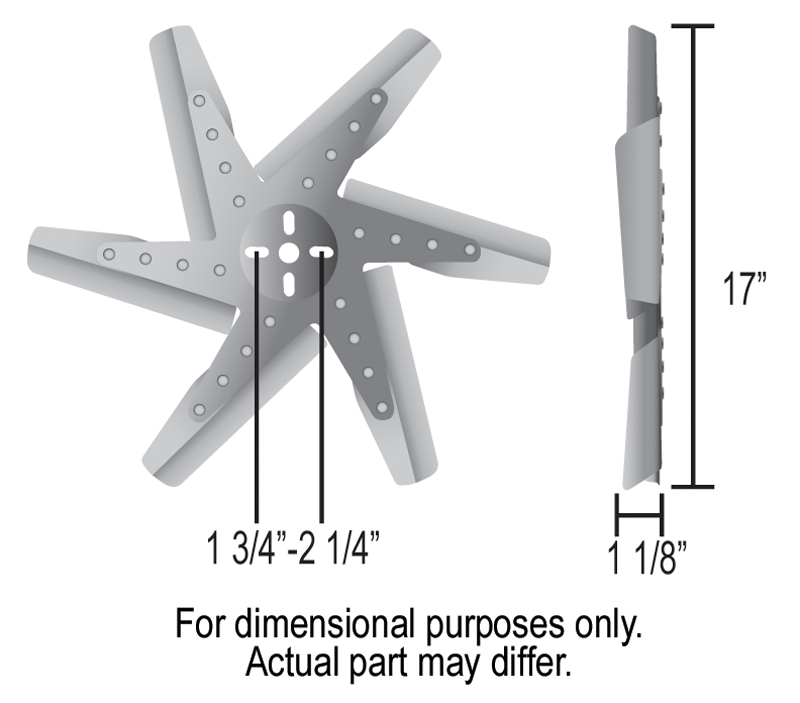

Specifications

• Diameter: 17″
• Flange bolt spacing: 1-3/4′ – 2-1/4″
• Depth: 1-1/8″
• Mounting surface to front: 1/4″
• Mounting surface to rear: 7/8″
• Blade pitch: 50°
• Rotation: Reverse (counter clockwise)
• Hub construction: Powder coated black steel
• Blade construction: Stainless steel

Features

• Stainless steel fan blades
• Black powder coated hub
• Rated up to 8,000 RPM
• 17″ reverse rotation flex fan design
