GM Thermostatic Sandwich Adapter Kit with 1/2″ NPT Ports

Description

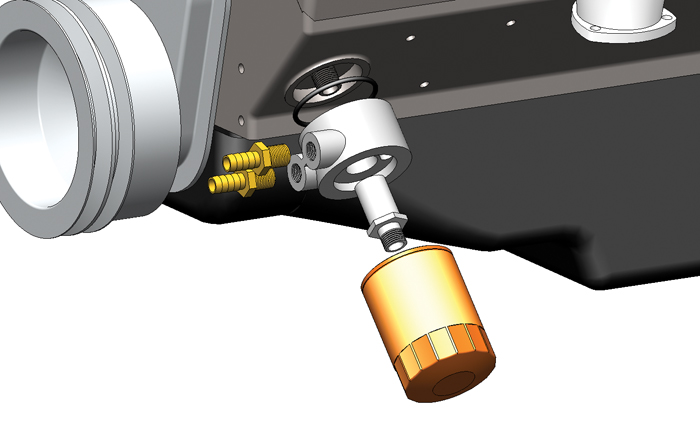

High quality die-cast aluminum thermostatic sandwich adapter with 1/2″ NPT ports and an O-ring diameter of 3 1/2″, this adapter provides external oil lines to allow the addition of an engine oil cooler to most 1963-2007 GM V-8 engines. It installs between the stock engine oil filter landing and the oil filter. Stock filter is retained. Kit includes sleeve nut and hose barb fittings.

Specifications

• Sandwich Adapter type: C
• Adapter thread size: 13/16″-16
• Adapter o-ring size: 3-1/2″
• Adapter thickness: 2-1/4″
• Adapter inlet size: 1/2″ NPT
• Aluminum Barb size: 1/2″

Features

• Provides external oil lines for oil coolers without relocating the factory oil filter
• Cast form high quality aluminum
• Maintain factory equivalent oil filter
• GM Type C Sandwich Adapter with 13/16″-16 thread size, fits most applications *see application guide for specific applications
• GM applications with 3-1/2″ O-ring/filter diameter
• Complete Kit includes 1/2″ hose barb fittings, sandwich adapter, sleeve nuts & O-ring
