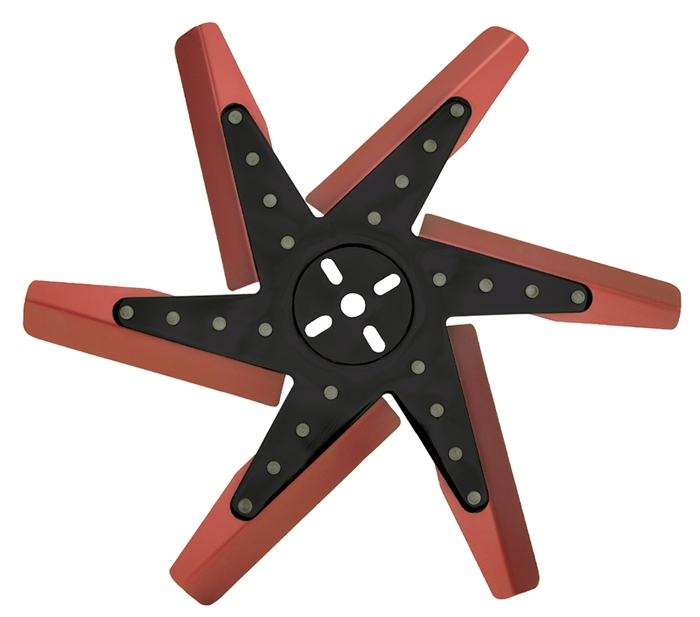

17″ High Performance Aluminum Standard Rotation Flex Fan, Red Blade with Black Hub

Description

This 17″ high performance, standard rotation flex fan features 6 red anodized aluminum blades and a black powder coated steel hub and is rated for engine speeds up to 8,000 rpm. Popular with hot rodders and muscle car owners, a perfect solution for applications where space is at a premium.

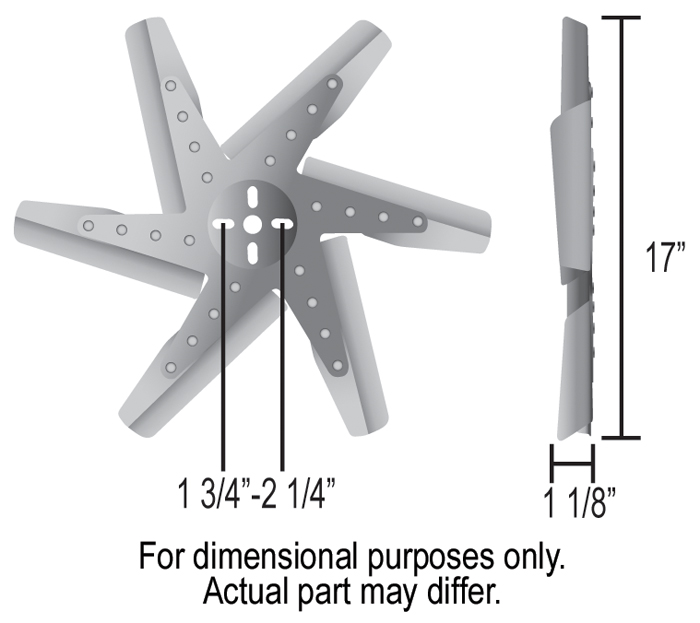

Specifications

• Diameter: 17″
• Flange bolt spacing: 1-3/4′ – 2-1/4″
• Depth: 1-1/8″
• Mounting surface to front: 1/4″
• Mounting surface to rear: 7/8″
• Blade pitch: 50°
• Rotation: Standard (clockwise)
• Hub construction: Powder coated black steel
• Blade construction: Anodized red aluminum

Features

• Red anodized aluminum fan blades
• Black powder coated hub
• Rated up to 8,000 RPM
• 17″ standard rotation flex fan design
