10 Row Series 10000 Stack Plate Cooler, -6AN

Description

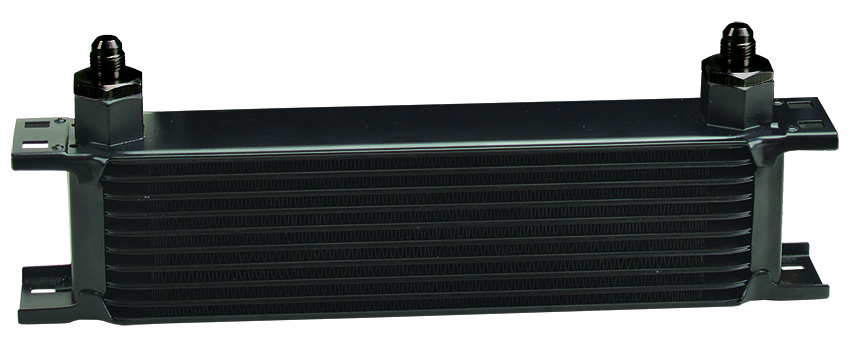

Our most efficient heat exchanger, the all aluminum 10 row Stacked Plate cooler features sturdy furnace brazed construction, full 2″ deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -6AN male adapter fittings.

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -6AN male
• Width: 13″
• Height: 4-7/16″
• Depth: 2″
• Inlet dim: 10″
• Mounting: 12-1/4″ x 2-7/8″
• BTU Rating: 20,000
• Fluid Capacity: 6oz

Features

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 10 row cooler design
• Male -6AN aluminum O-ring inlet fittings
• BTU Rating: 20,000
• Cooler capacity is an additional 6oz
