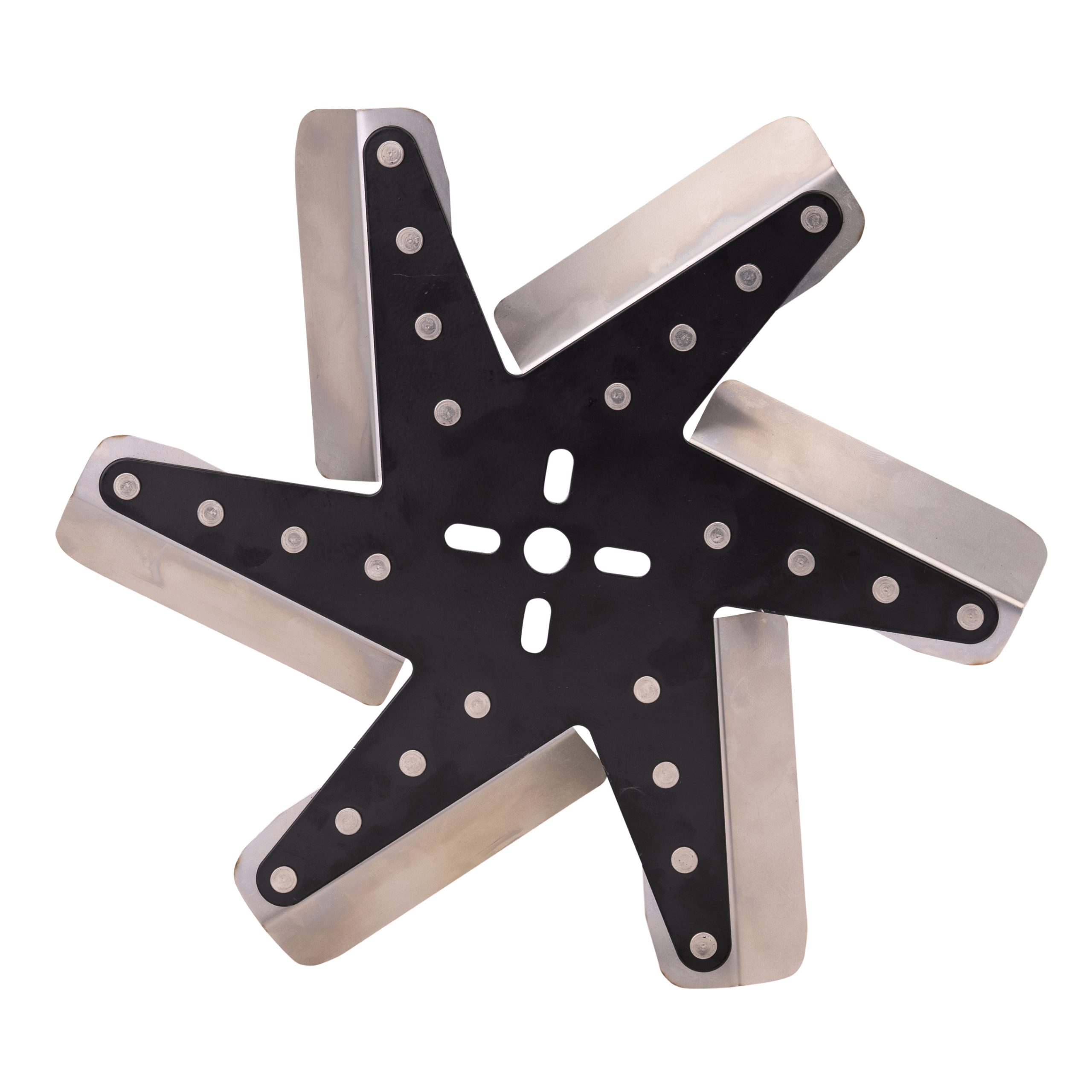

13” High Performance Stainless Steel Standard Rotation Flex Fan, Black Hub

Description

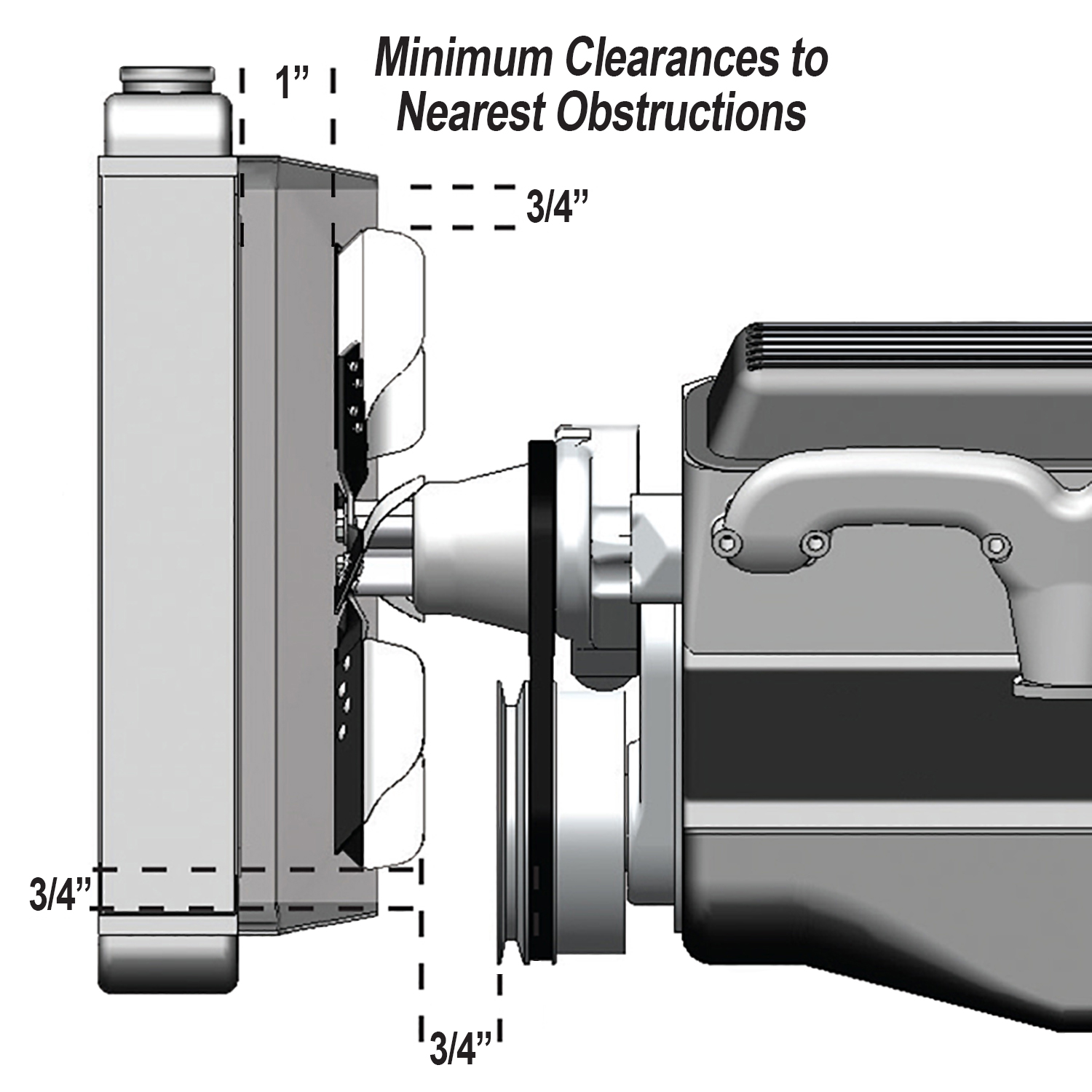

Rated for engine speeds up to 8,000 rpm, these high performance standard rotation flex fans include 6 stainless steel blades and a black powder coated hub. A very good choice for applications with limited space between the radiator and water pump.

Specifications

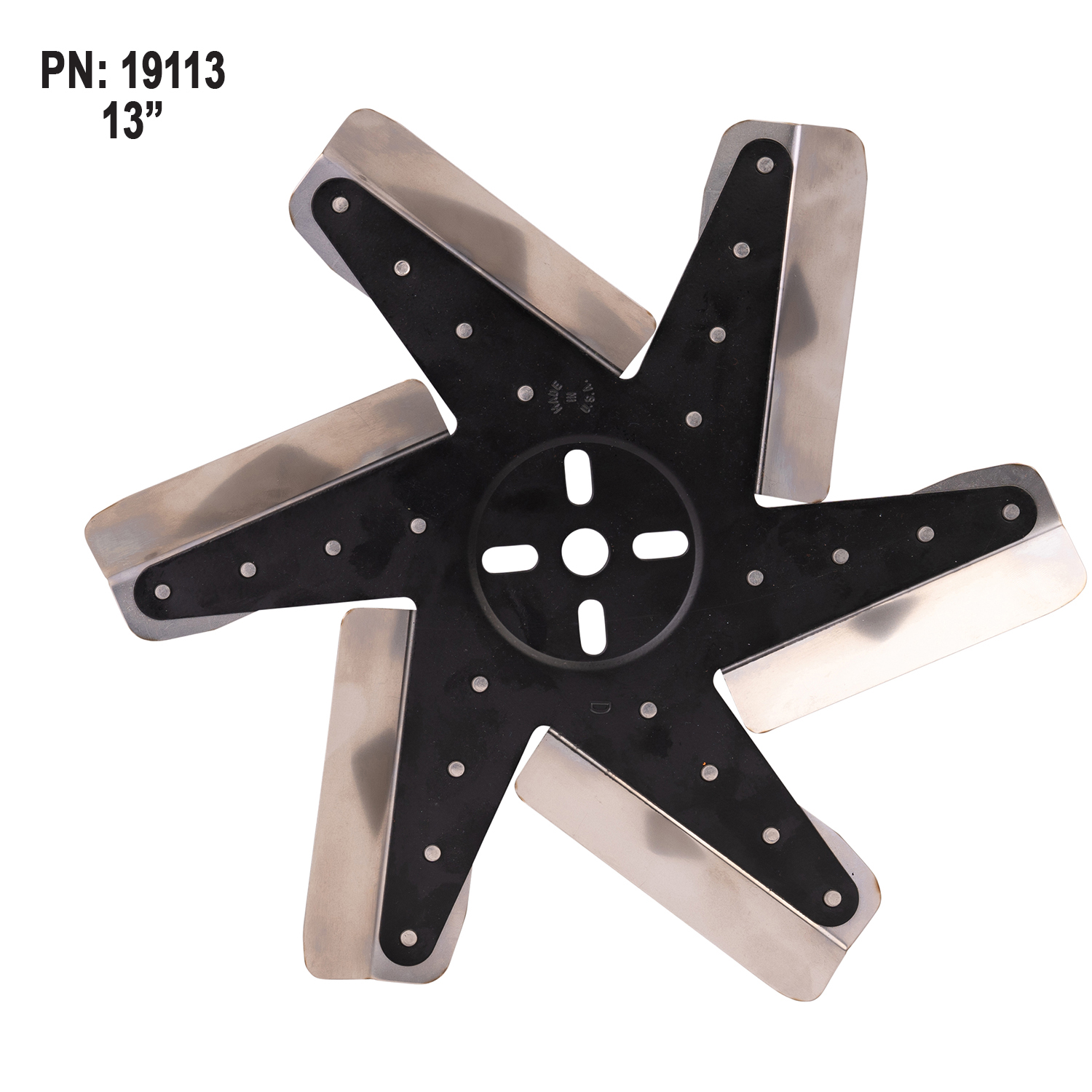

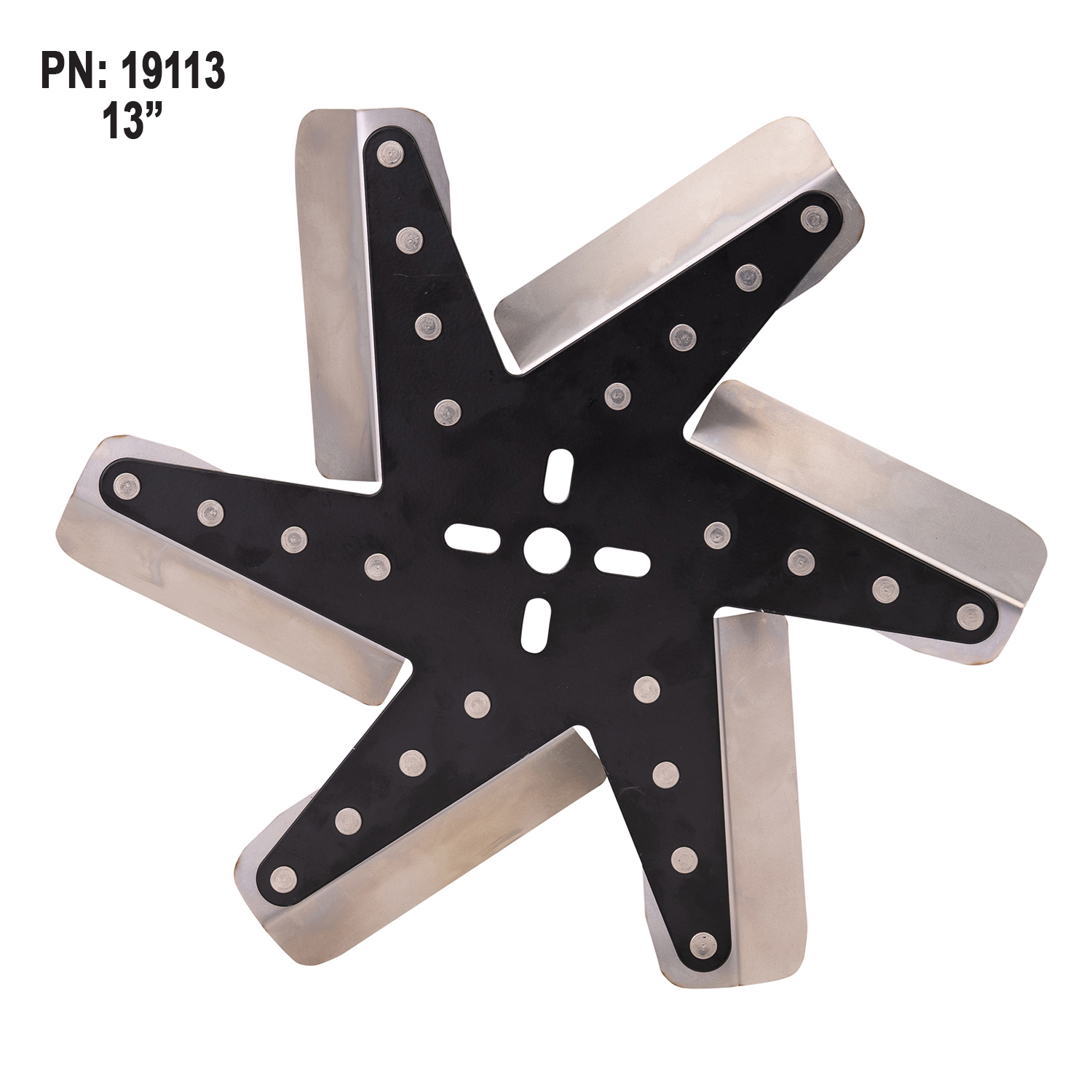

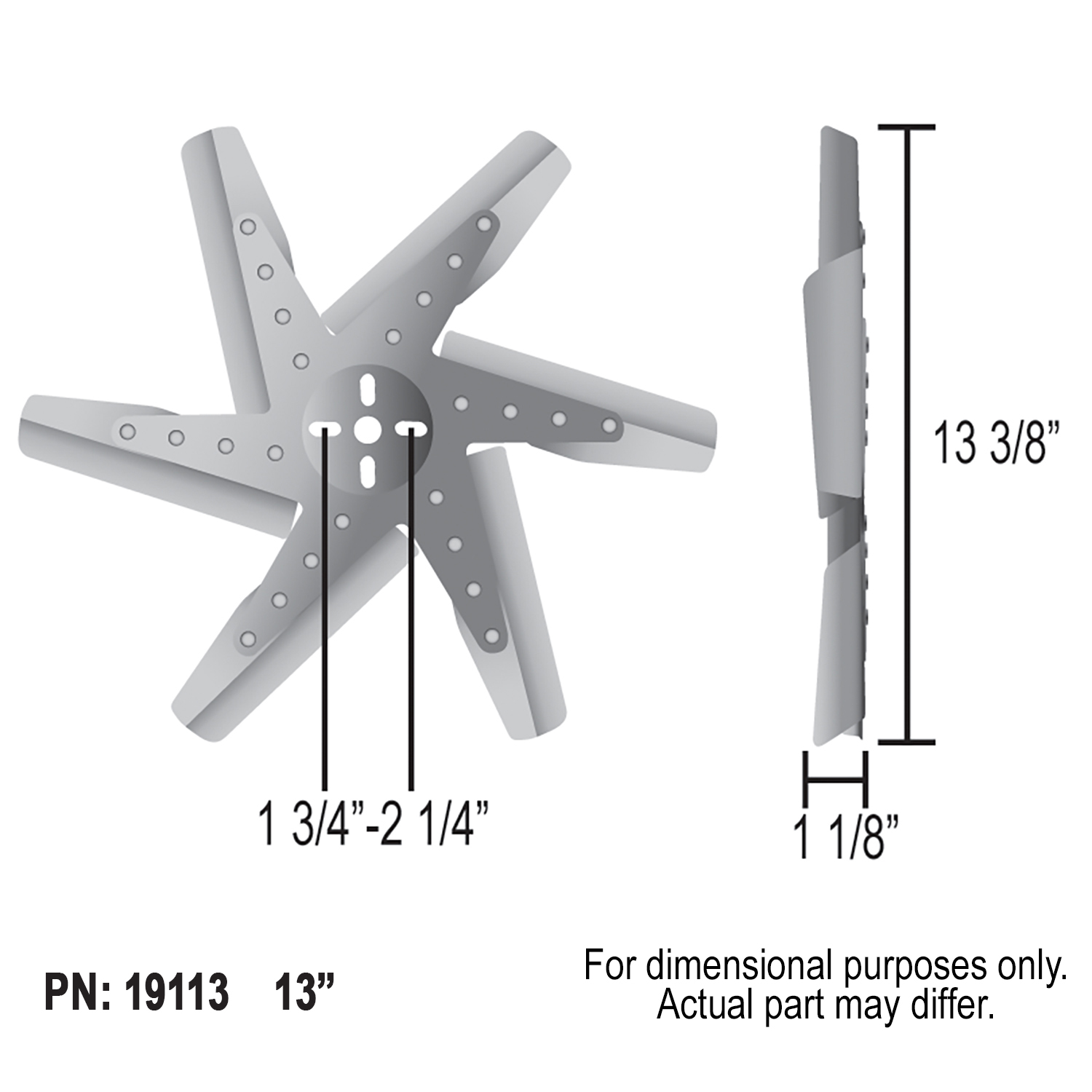

• PN 19113 Diameter: 13 3/8”

Following specifications apply to all diameters

• Depth: 1-1/8″
• Flange bolt spacing: 1-3/4′ – 2-1/4″
• Mounting surface to front: 1/4″
• Mounting surface to rear: 7/8″
• Pilot Hole: 5/8″
• Blade pitch: 50°
• Rotation: Standard (clockwise)
• Hub construction: Powder coated black steel
• Blade construction: Stainless steel

Features

• Stainless steel fan blades
• Black powder coated hub
• Rated up to 8,000 RPM
• Standard rotation flex fan design
