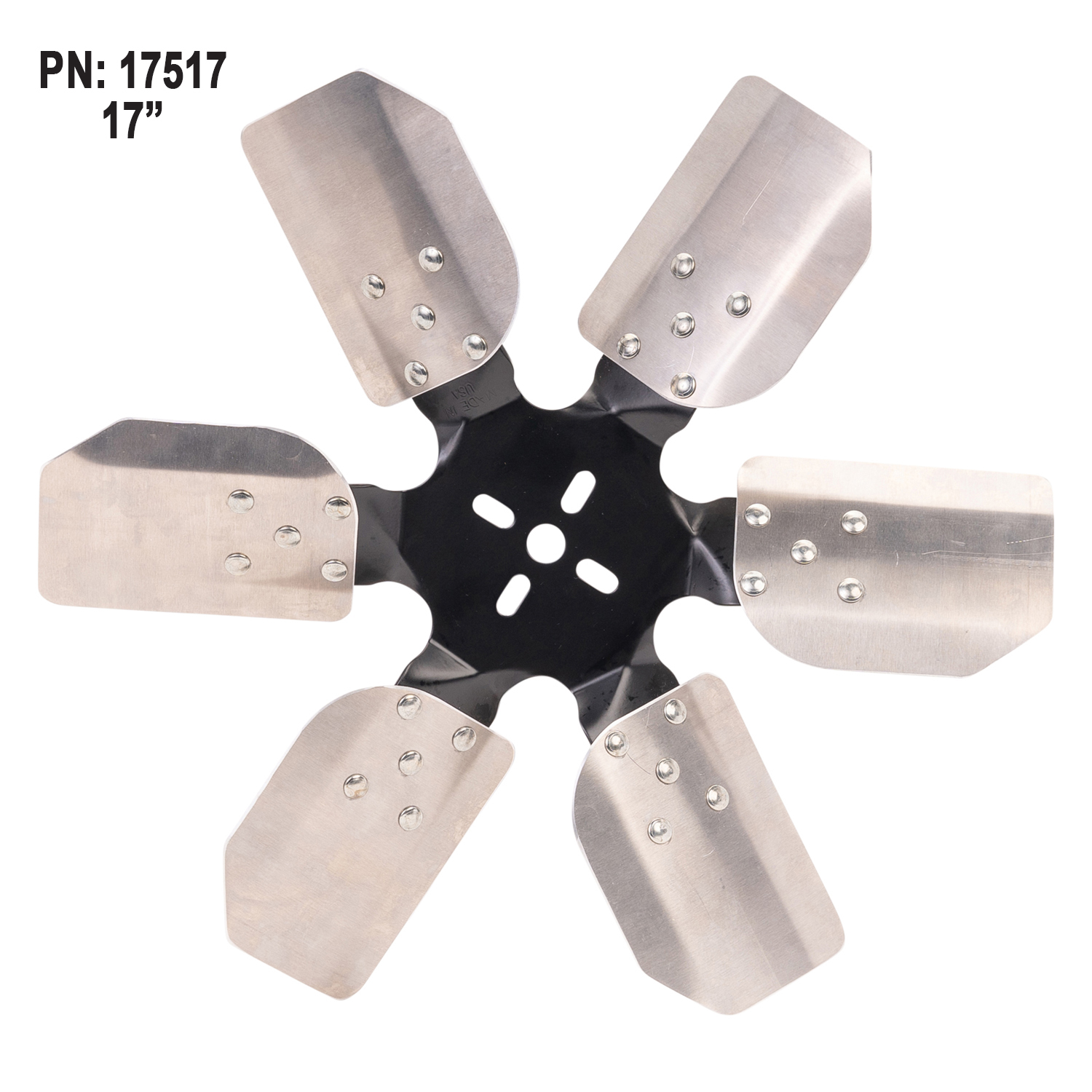

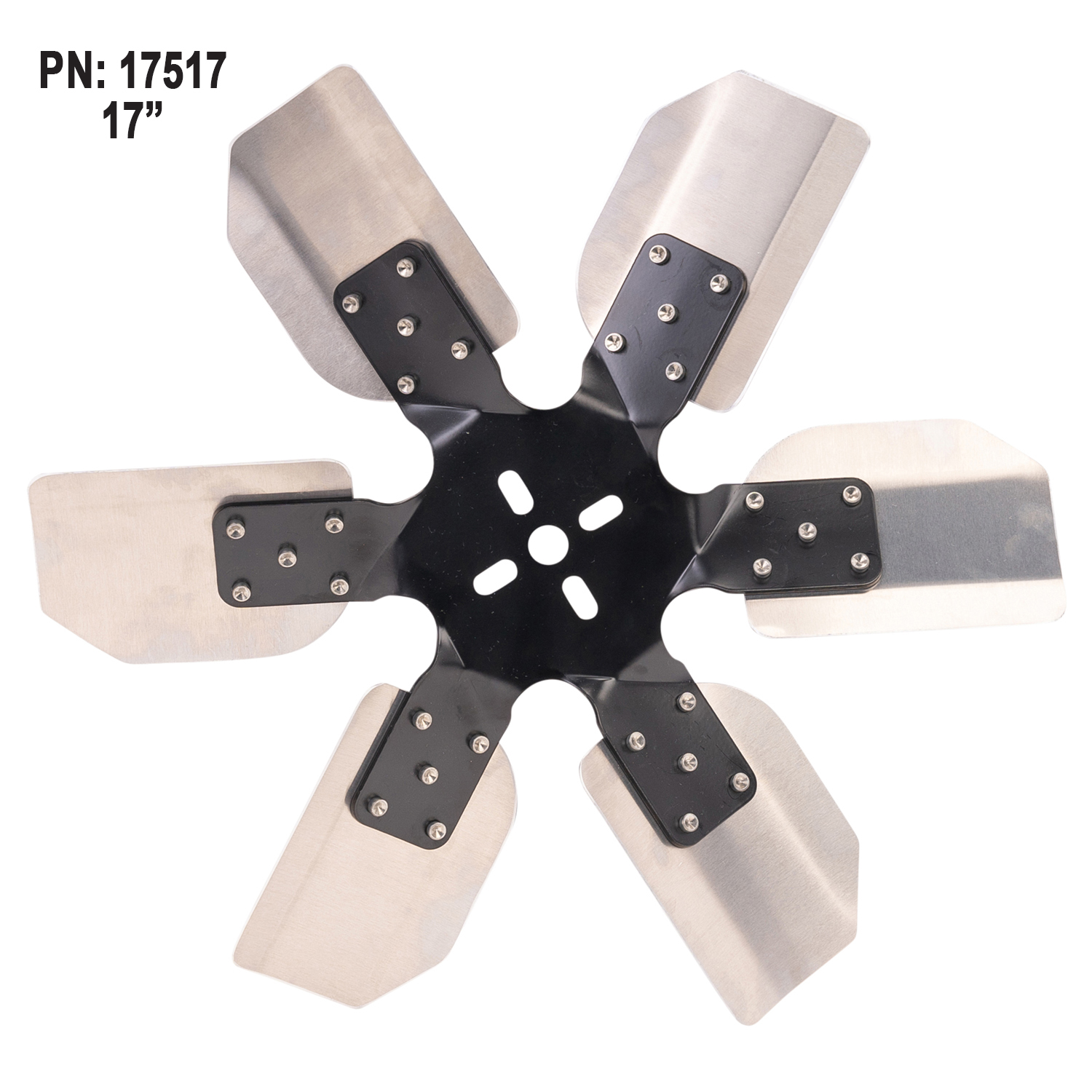

17” Standard Rotation Rigid Race Fan, Aluminum Blade

Description

Providing maximum full time airflow across the rpm range, this standard rotation 17″ rigid race fan features a sturdy black powder coated steel hub, 6 aluminum fan blades and is rated up to 8,000 rpm.

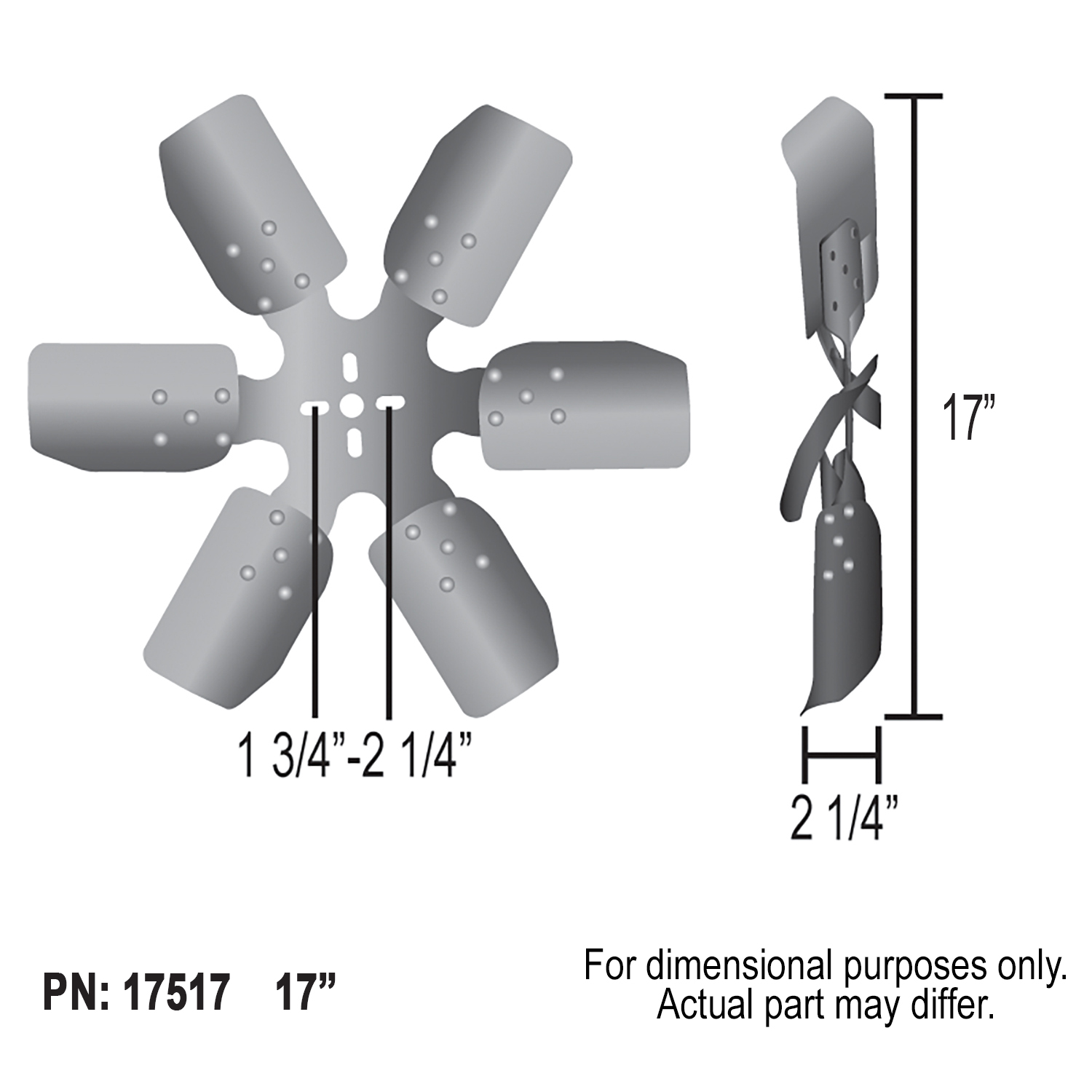

Specifications

• Diameter: 16-3/4″
• Flange bolt spacing: 1-3/4″ – 2-1/4″
• Depth: 2-1/4″
• Mounting surface to front: 1-9/16″
• Mounting surface to rear: 3/4″
• Blade pitch: 28°
• Rotation: Standard (clockwise)
• Hub construction: Powder coated black steel
• Blade construction: Aluminum

Features

• Aluminum fan blades
• Maximum full time airflow
• Rated up to 8,000 RPM
• 17″ standard rotation rigid fan design
• Perfect replacement for fan clutch and fan
