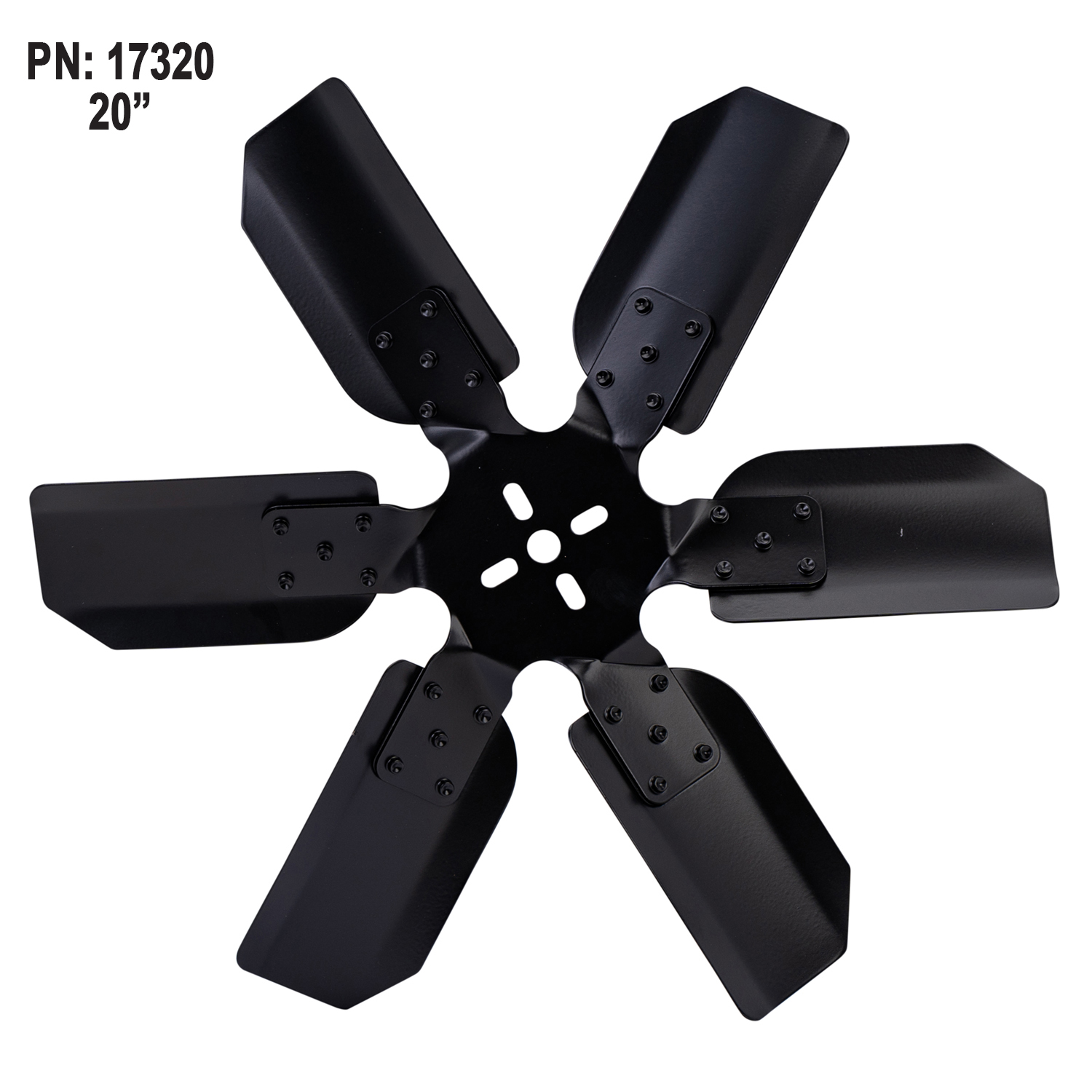

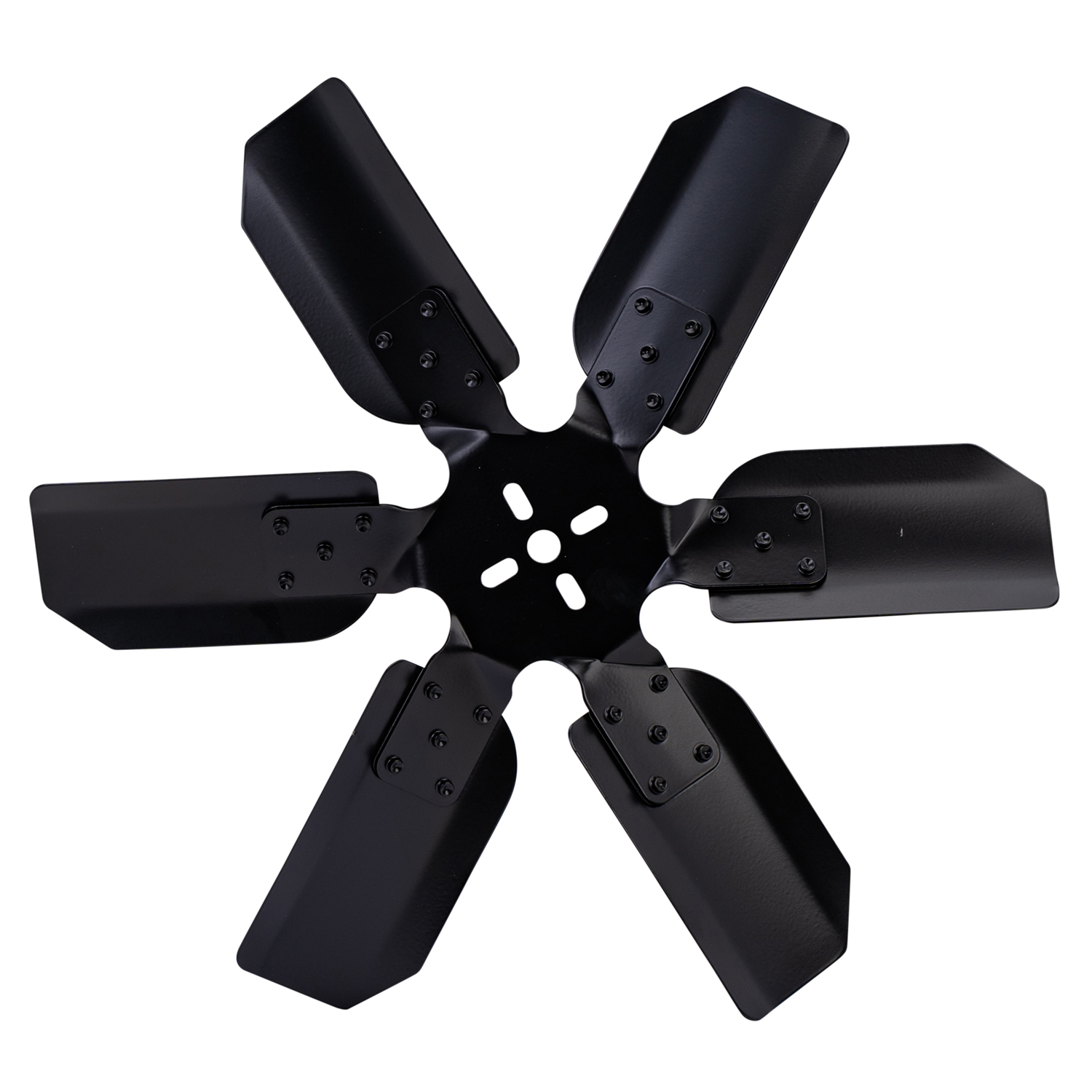

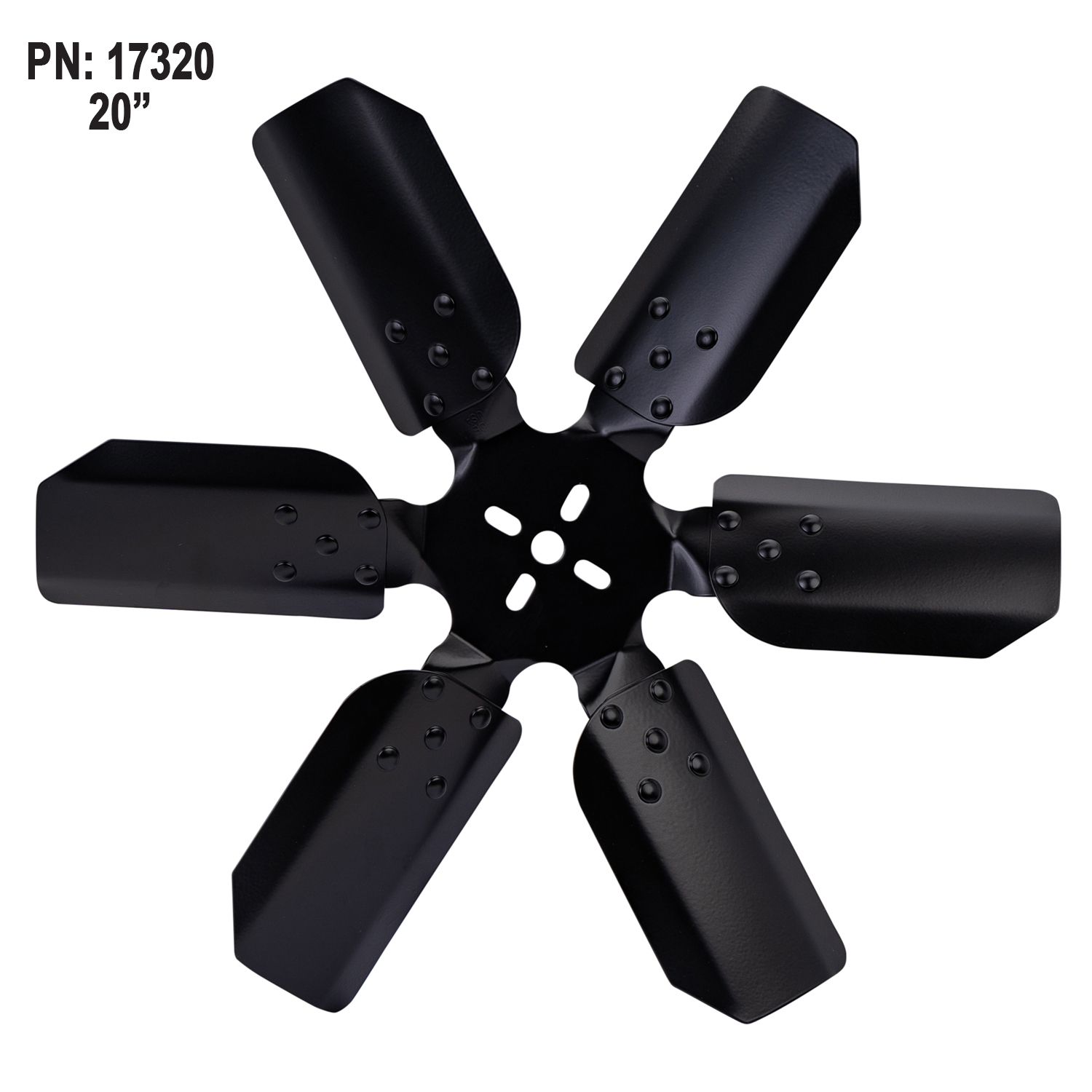

20″ Standard Rotation Rigid Race Fan, Steel Blade

Description

Providing maximum full time airflow across the rpm range, this standard rotation 20″ rigid race fan features a sturdy steel hub, 6 steel fan blades and is rated up to 8,000 rpm. Comes finished in durable black powder coat.

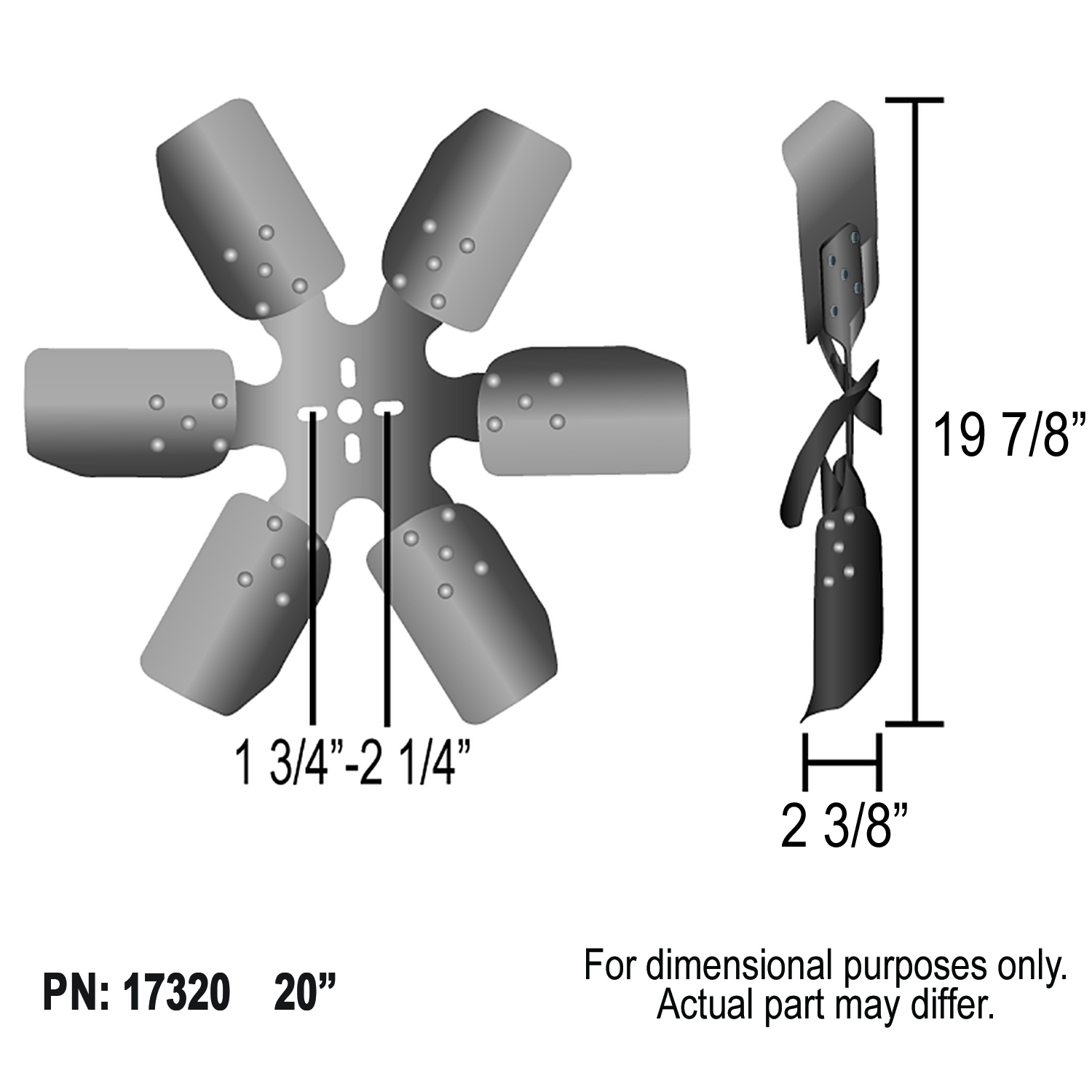

Specifications

• Diameter: 19-7/8″
• Flange bolt spacing: 1-3/4″ – 2-1/4″
• Depth: 2-3/8″
• Mounting surface to front: 1-9/16″
• Mounting surface to rear: 13/16″
• Blade Pitch: 28°
• Rotation: Standard (clockwise)
• Construction: Powder coated black steel

Features

• Steel fan blades
• Maximum full time airflow
• Rated up to 8,000 RPM
• 20″ standard rotation rigid fan design
