Description

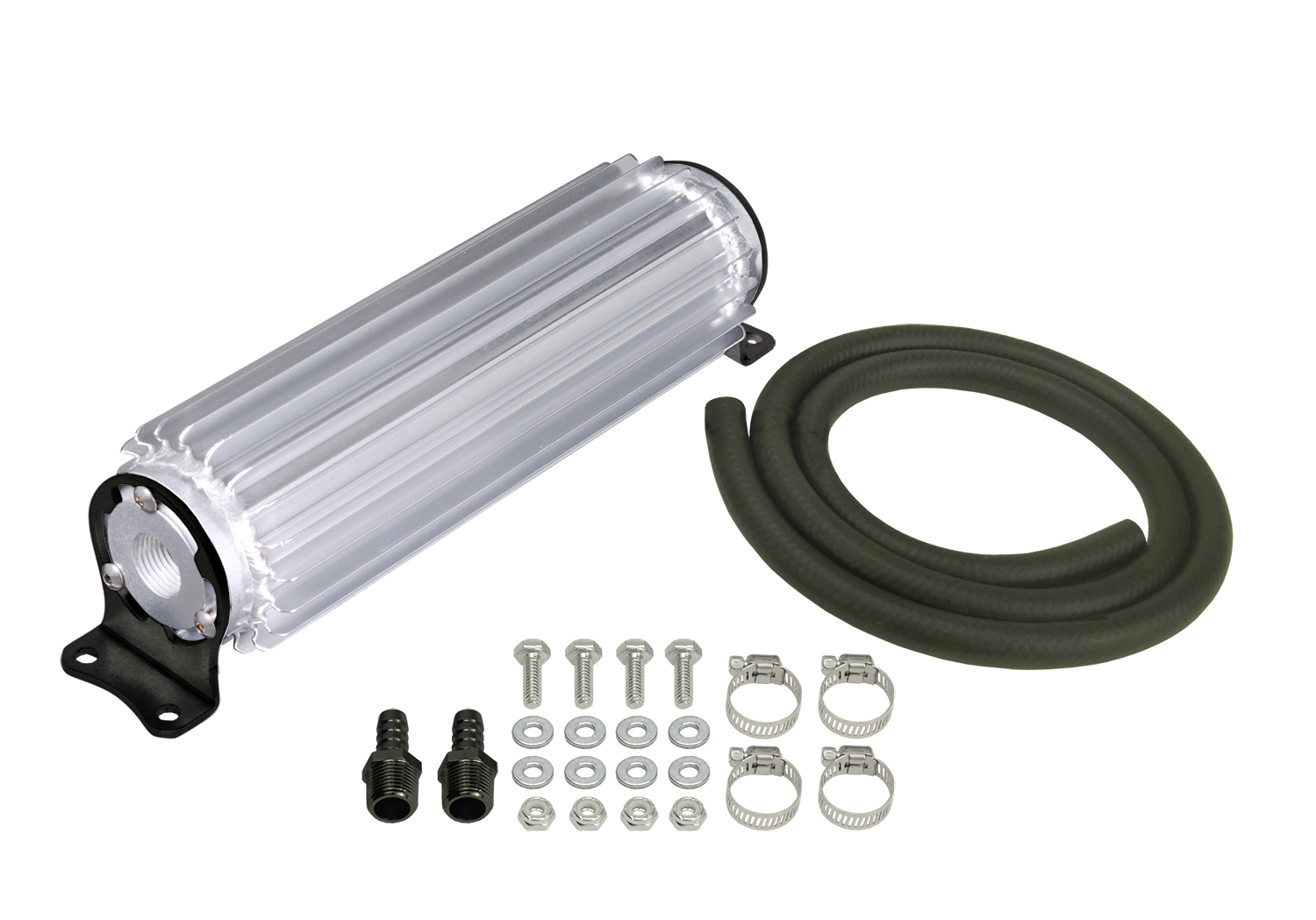

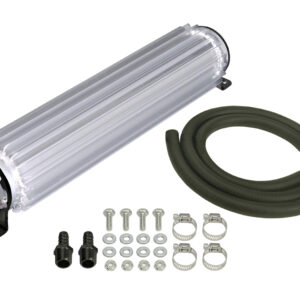

This compact all aluminum Heat Sink cooler uses both external and internal fins to maximize heat transfer. With a 3″ diameter it can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. This small 10″ long cooler is perfect for fuel and power steering applications. Includes hose barbs.
Specifications
- Cooler style: Heat Sink
- Construction: Aluminum
- Inlet size: Single 1/2″ NPT
- Fitting size: 3/8″ barb

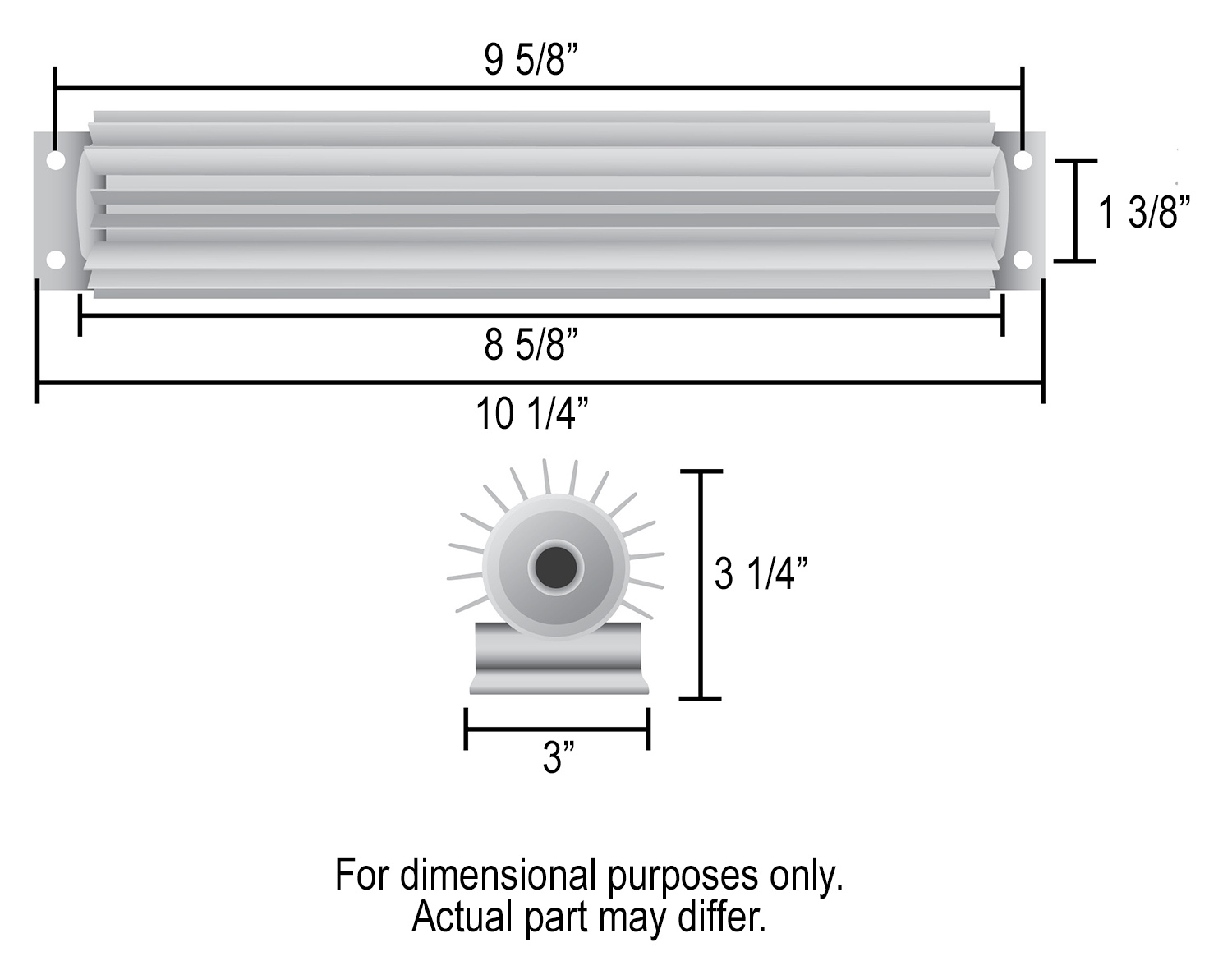

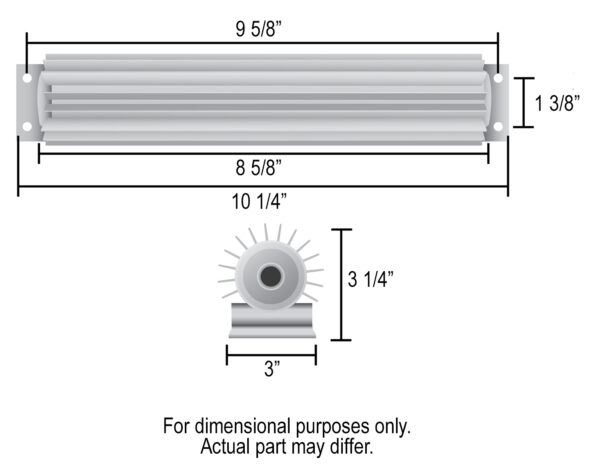

- Length: 10-1/4″
- Core Length: 8-5/8″
- Height: 3-1/4″
- Width: 3″
- Mounting: 9-5/8″ x 1-3/8″
- Capacity: 10 ounces
Features
- Aluminum heat sink design Features internal and external heat dissipating fins for high heat transfer
- Stamped Turbulator has been added for increased efficiency
- Removable brackets allow cooler to be clocked
- Clear anodized finish
- Brackets are black anodized
- Hardware kit includes aluminum hose barbs fittings
- Compact 3″ diameter to fit most frame rails
- Single pass cooler design
- 1/2″ NPT inlets
- 3/8″ hose barb fittings included
- 4′ of 11/32″ hose
- All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
