Description
Heat sink cooler assemblies have removable brackets that allow the cooler to be clocked for easier installation. These Two-pass Heat Sink coolers use both external and internal fins to maximize heat transfer. With their sleek 3” diameter they can be mounted in a variety of locations and the universal design can be used to cool a wide variety of components. Black Anodized coolers are perfect for fuel and power steering applications.

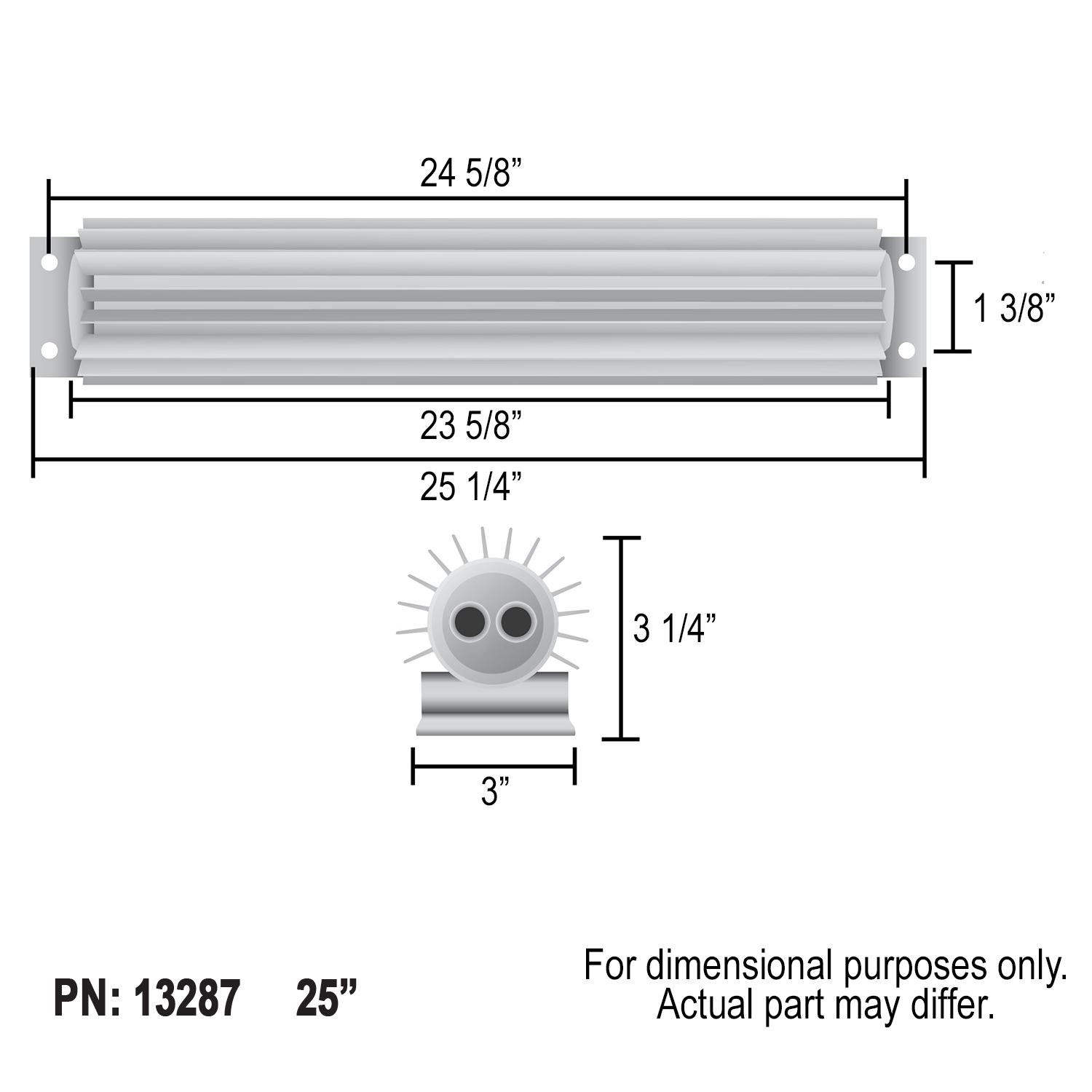

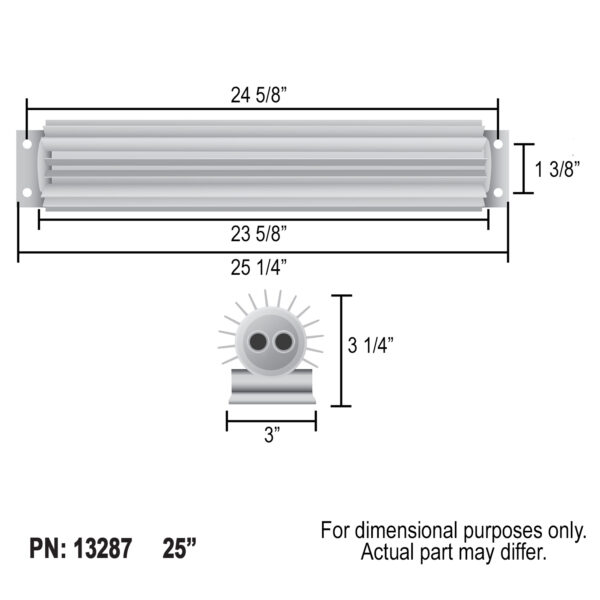

| Length | Part Number | Core Length | Mounting | Fluid Capacity |

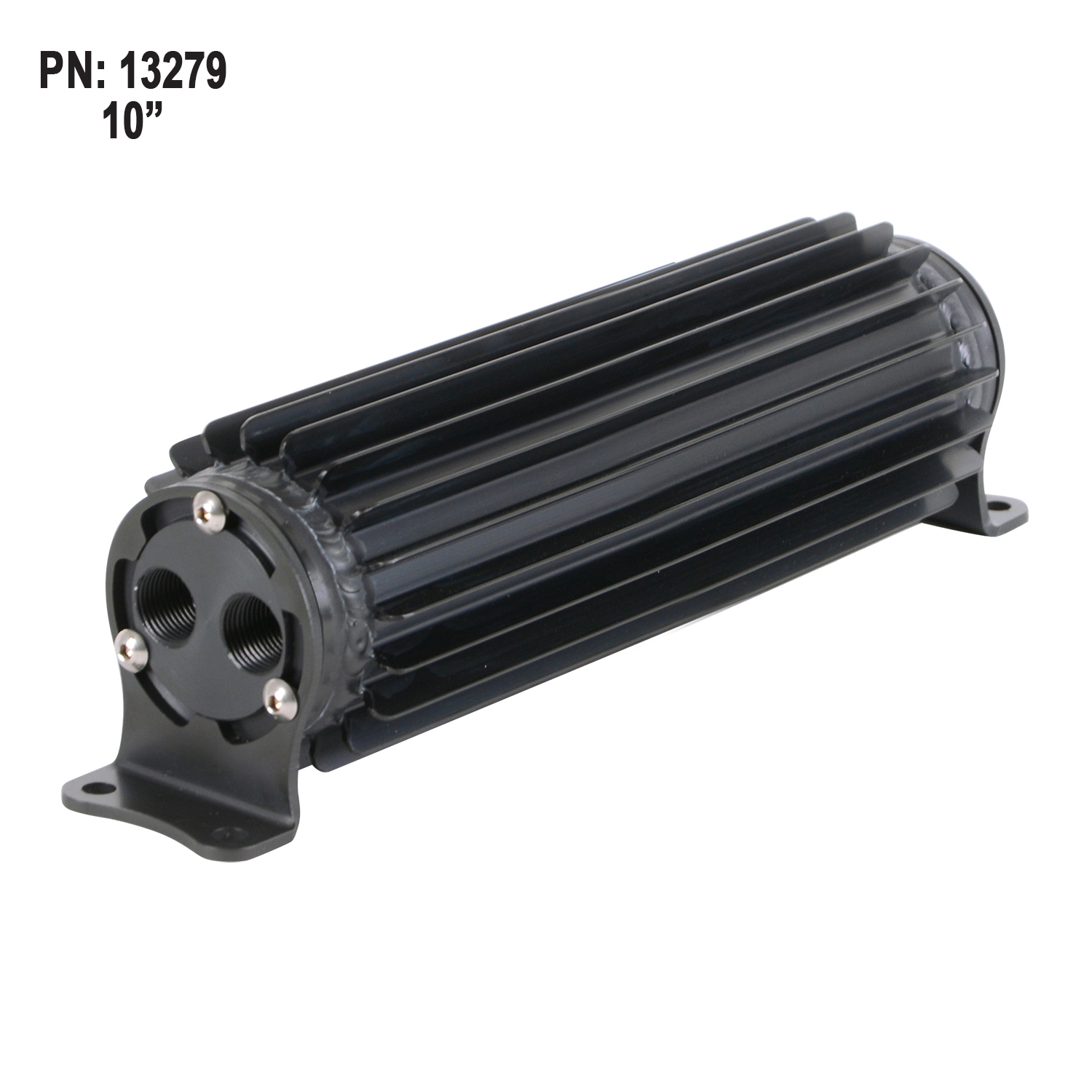

| 10-1/4″ | 13279 | 8 5/8″ | 9-5/8″ x 1-3/8″ | 10 ounces |

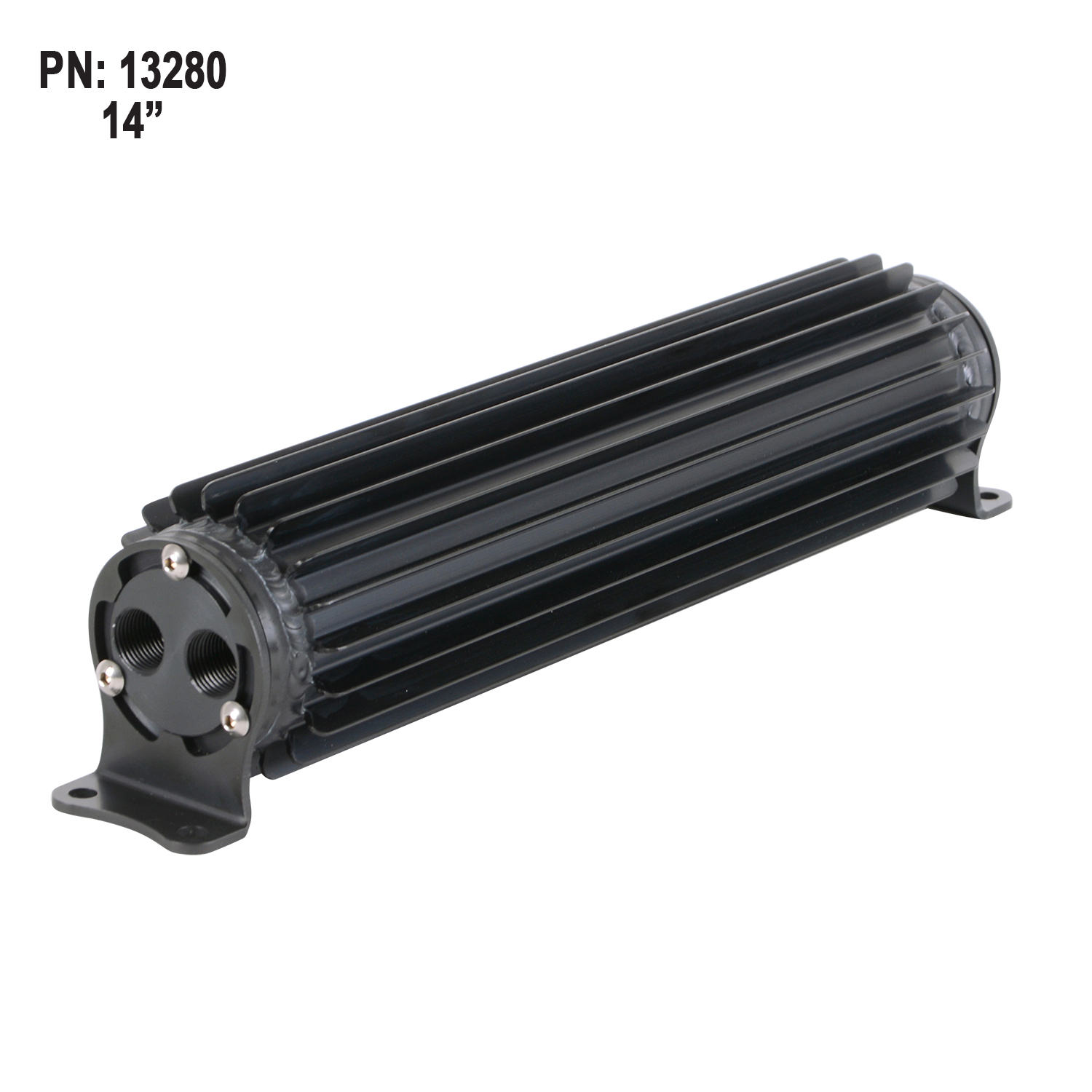

| 14-1/4″ | 13280 | 12 5/8″ | 13-5/8″ x 1-3/8″ | 14 ounces |

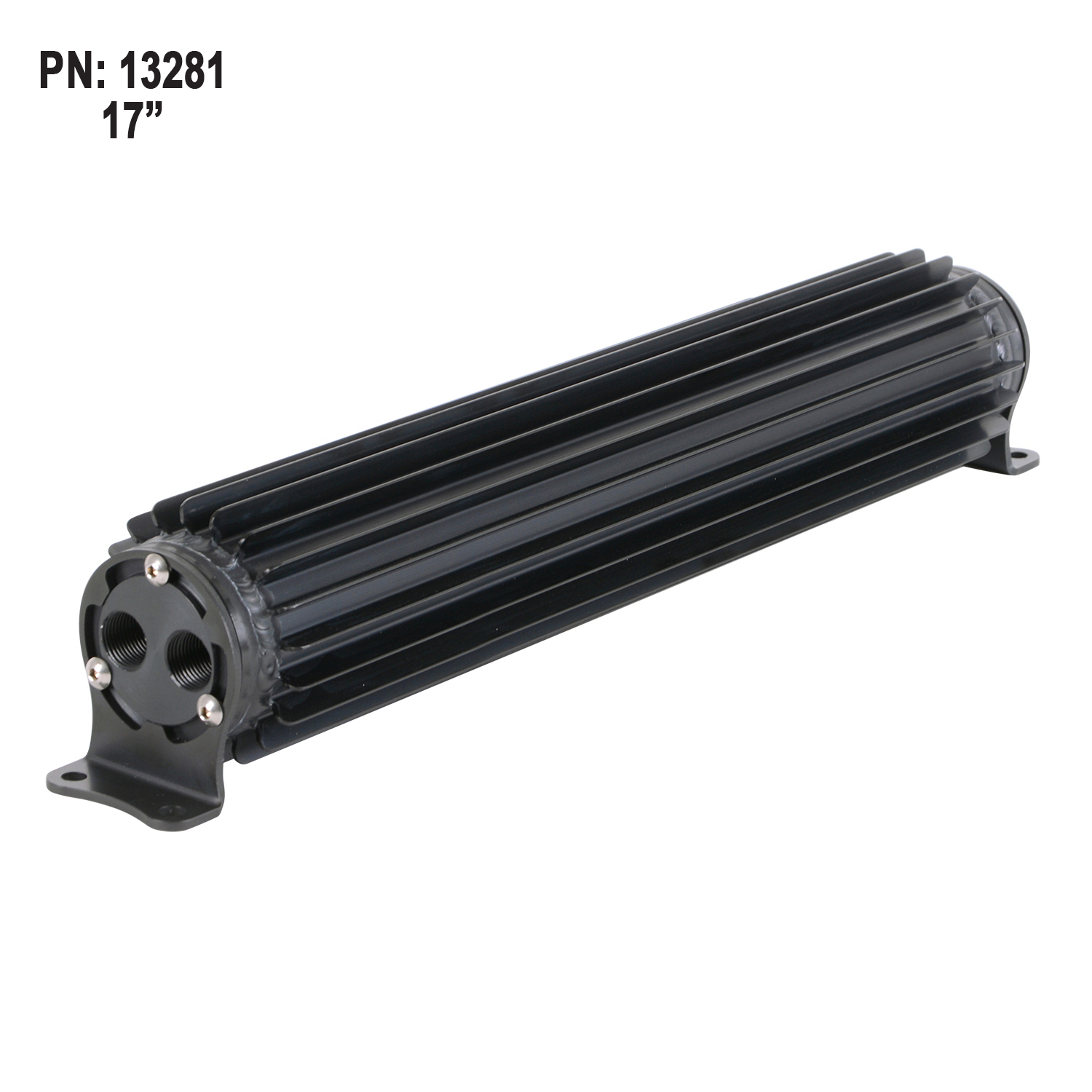

| 17-1/4″ | 13281 | 15 5/8″ | 16-5/8″ x 1-3/8″ | 18 ounces |

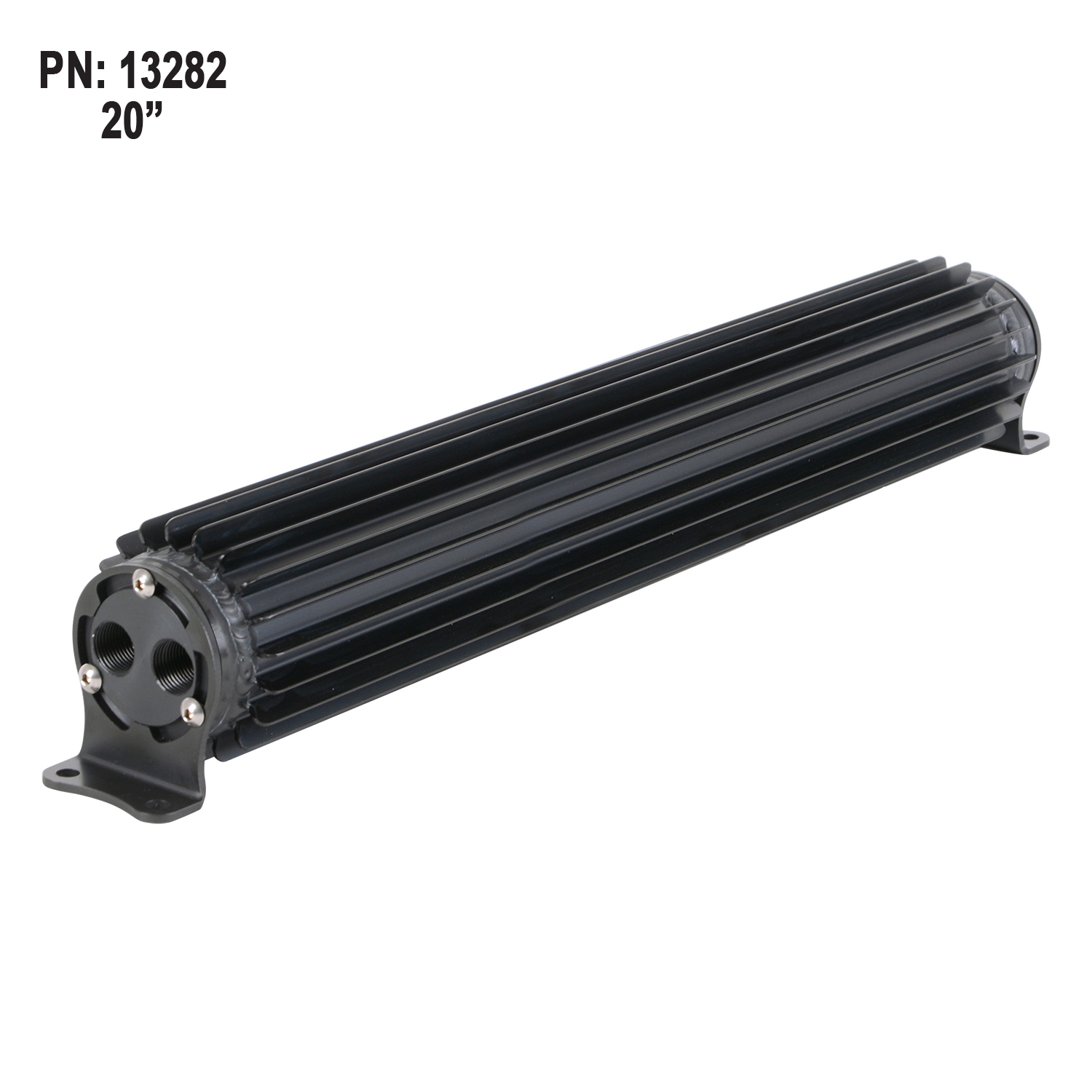

| 20-1/4″ | 13282 | 18 5/8″ | 19-5/8″ x 1-3/8″ | 22 ounces |

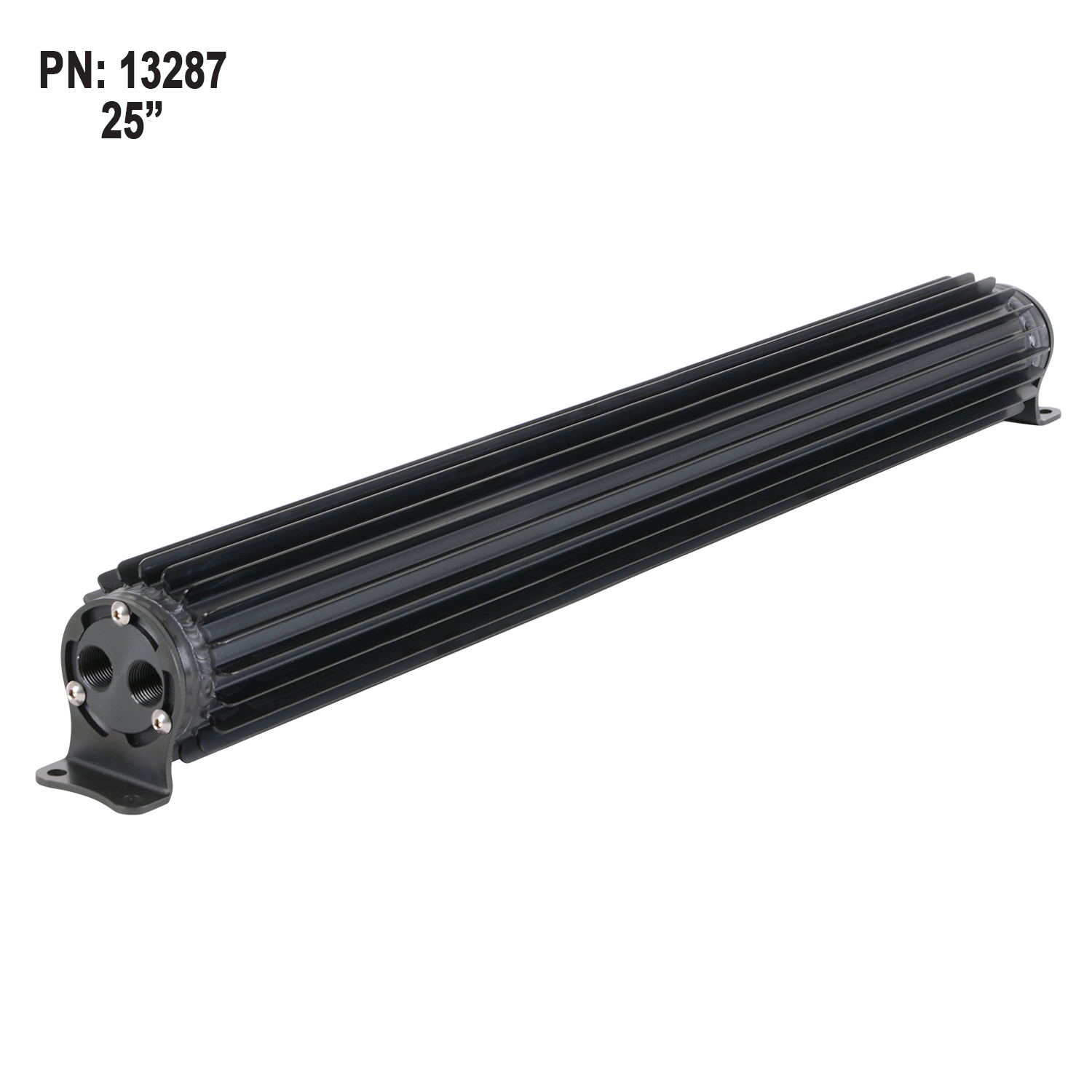

| 25-1/4″ | 13287 | 23 5/8″ | 24-5/8″ x 1-3/8″ | 28 ounces |
Specifications
- Cooler style: Heat Sink
- Construction: Aluminum
- Black Anodized
- Inlet/Outles Port Size: 3/8″ NPT
- Height: 3-1/4″
- Width: 3″
Features
- Aluminum heat sink design Features internal and external heat dissipating fins for high heat transfer
- Stamped Turbulator has been added for increased efficiency
- Removable brackets allow cooler to be clocked
- Black Anodized finish
- Compact 3″ diameter to fit most frame rails
- Dual pass cooler design
- All Derale coolers are rated at 250 psi working pressure, 300 psi burst strength
