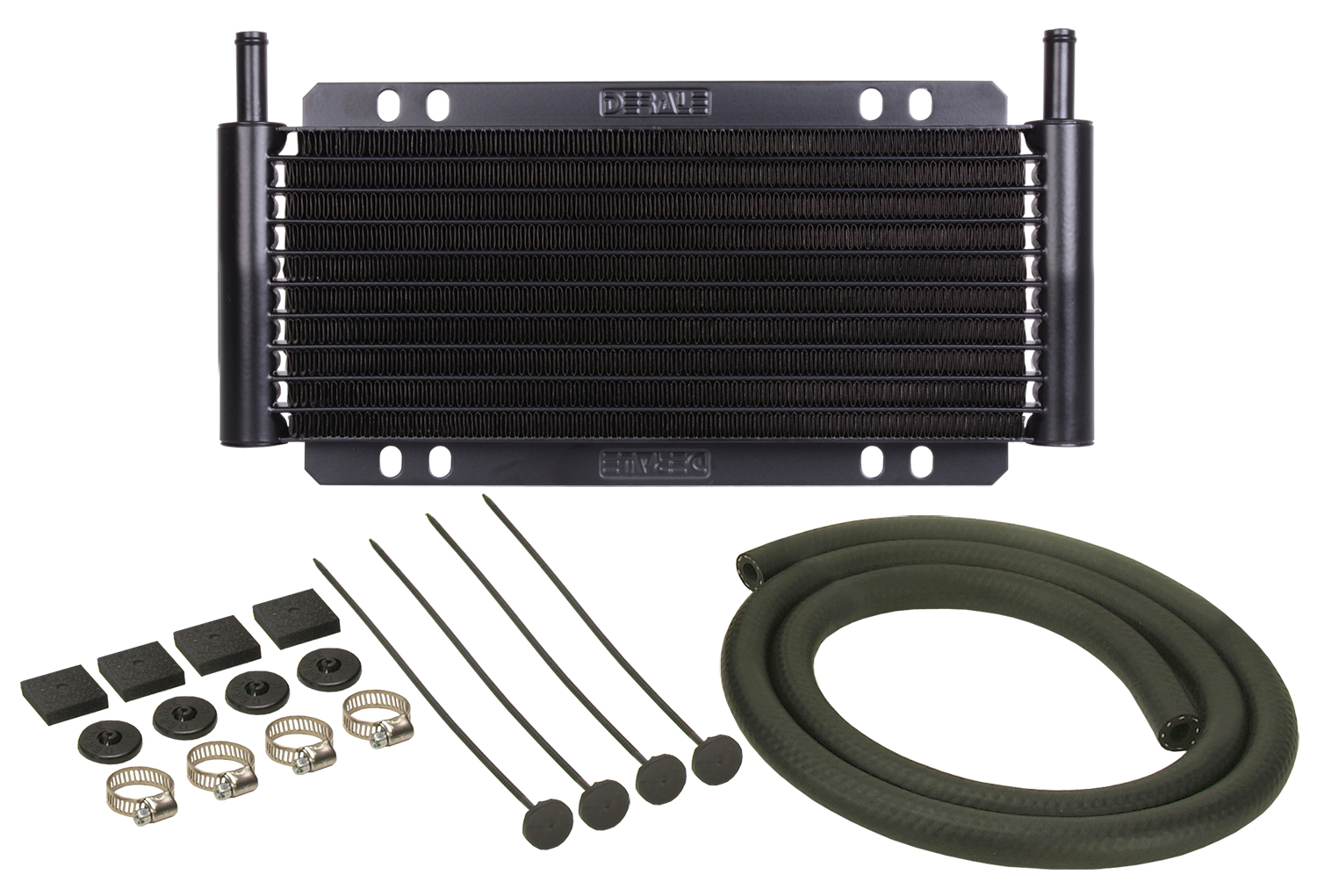

9 Row Series 8000 Plate & Fin Power Steering Cooler Kit

Description

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8″ wide plates, 3/4″ embossed turbulators which maximize heat transfer while also minimizing pressure drop.

Specifications

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 11/32″ barb
• BTU: 11500

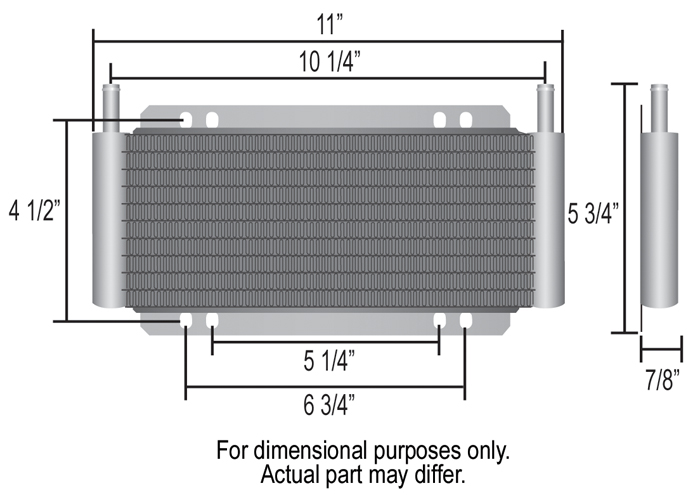

• Width: 11″
• Height: 5-3/4″
• Depth: 7/8″
• Inlet dim: 10-1/4″
• Mounting: 6-3/4″ x 4-1/2″
• Hose size: 11/32″
• Hose length: 4′

Features

• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Sturdy furnace-brazed aluminum construction
• All Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 9 row cooler design
• 3/4″ embossed turbulators maximize cooling & minimize pressure drop
• 11/32″ hose barb inlets
• BTU: 11500
• Complete hardware kit included
• Fluid Capacity: 2.5 oz.
