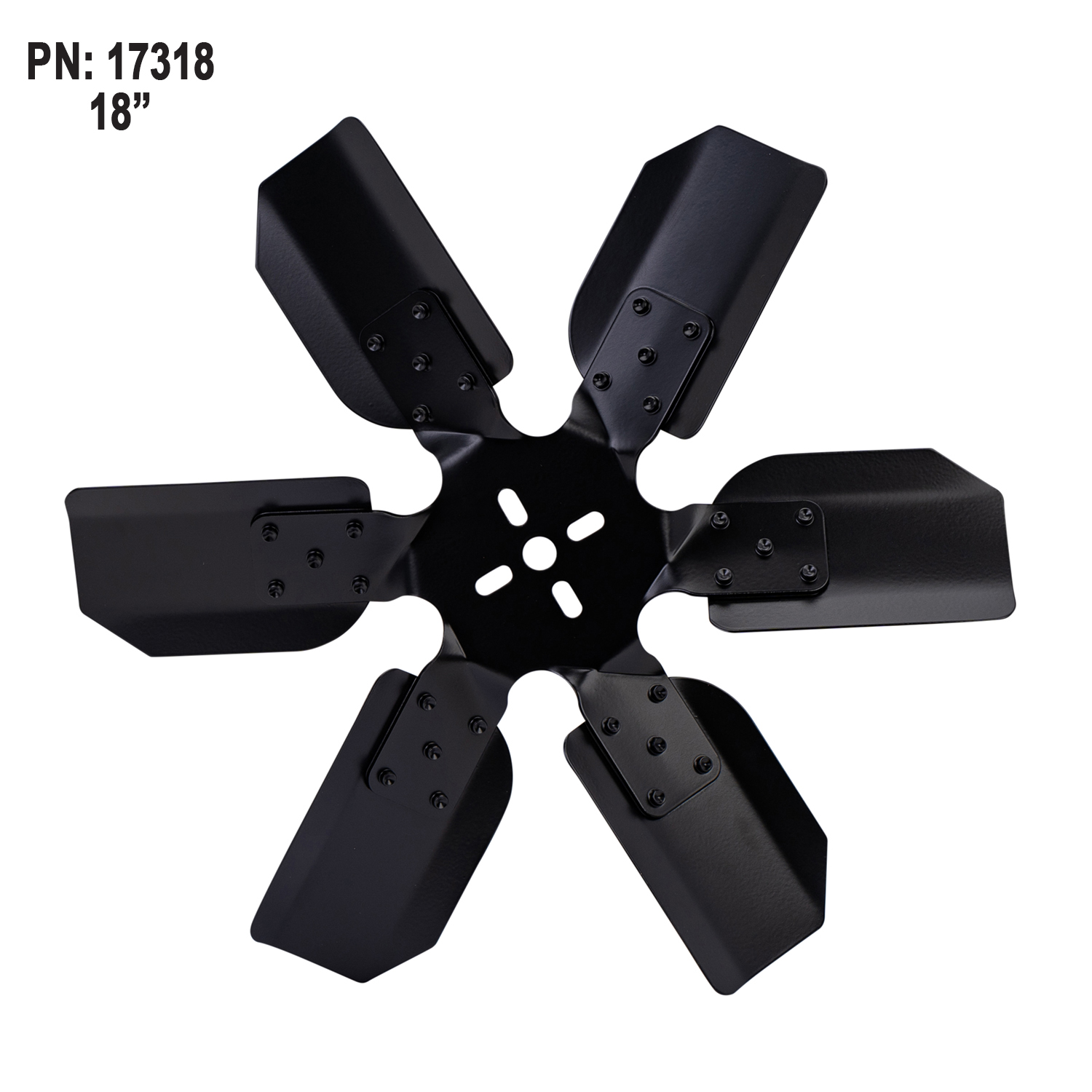

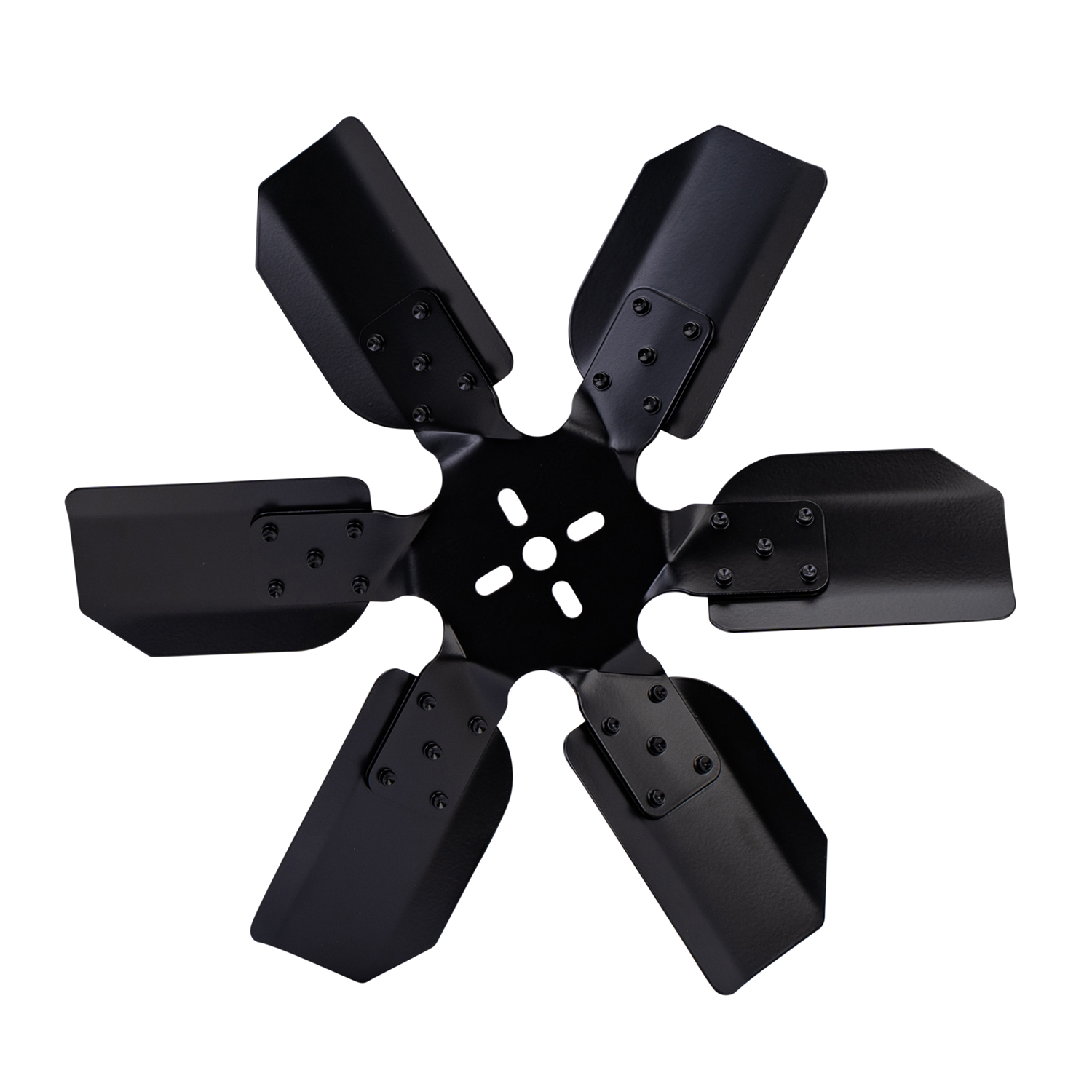

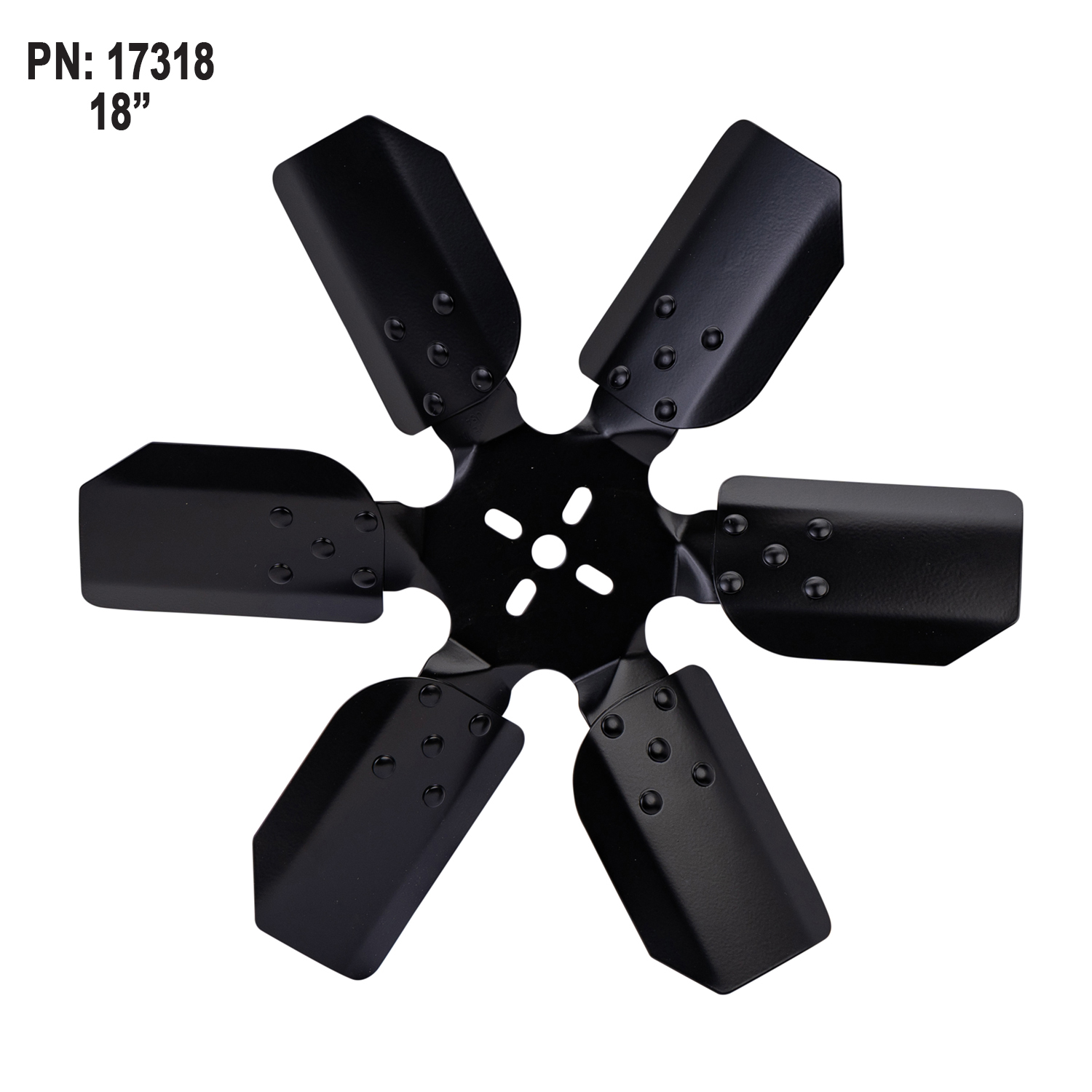

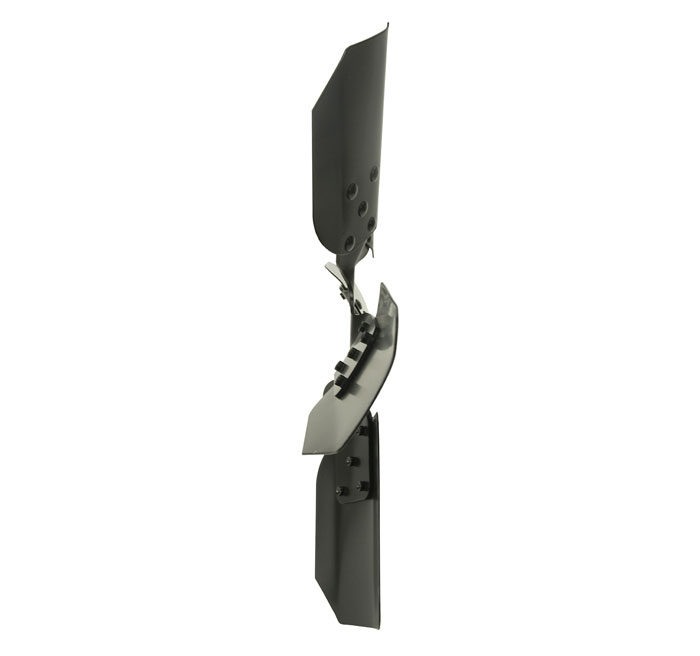

18″ Standard Rotation Rigid Race Fan, Steel Blade

Description

This standard rotation 18″ rigid race fan is designed to provide maximum airflow across the rpm range and features a steel hub and 6 steel blades. Rated up to 8,000 rpm, it comes with a durable black powder coat finish.

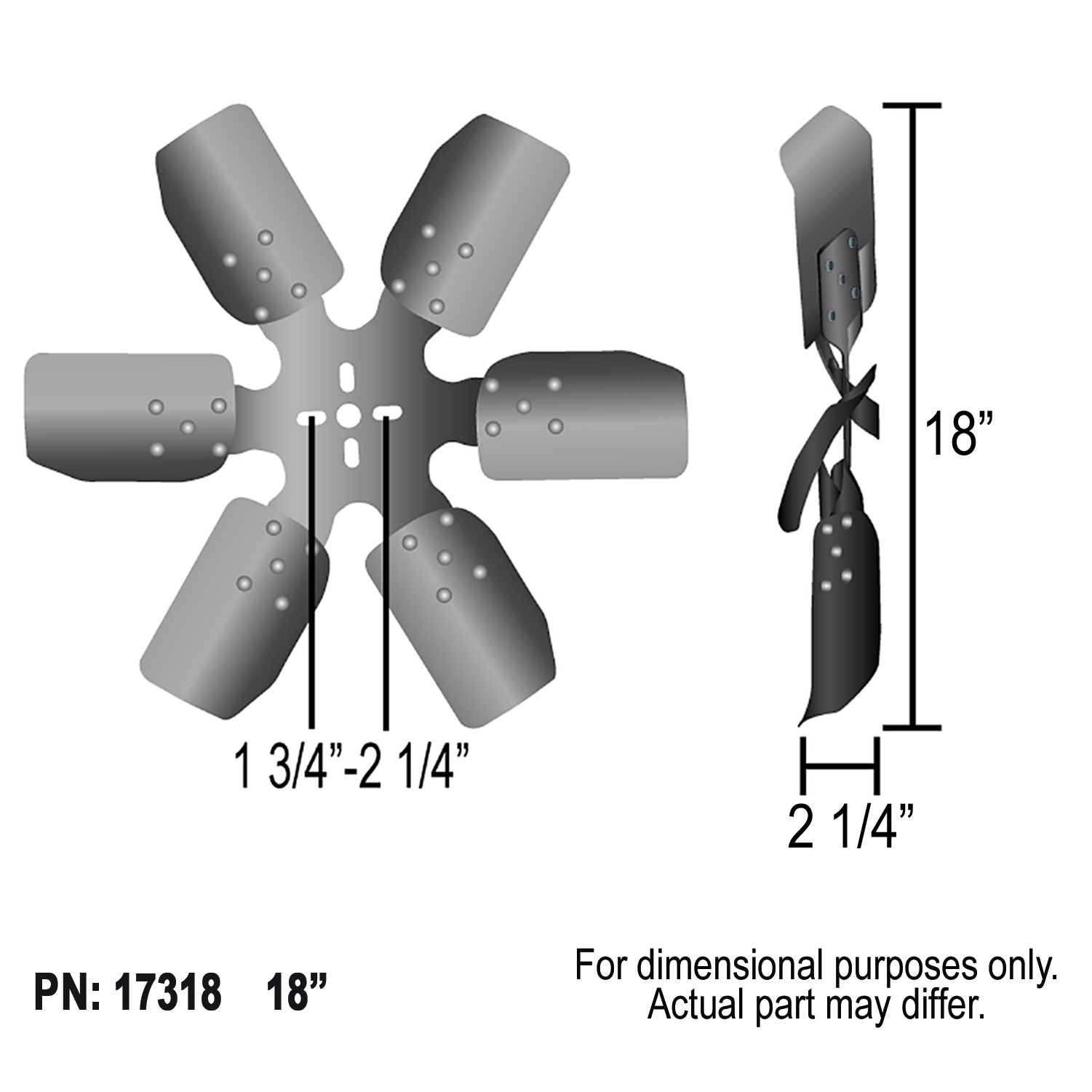

Specifications

• Diameter: 18″
• Flange bolt spacing: 1-3/4″ – 2-1/4″
• Depth: 2-1/4″
• Mounting surface to front: 1-7/16″
• Mounting surface to rear: 13/16″
• Blade pitch: 28°
• Rotation: Standard (clockwise)
• Construction: Powder coated black steel

Features

• Steel fan blades
• Maximum full time airflow
• Rated up to 8,000 RPM
• 18″ standard rotation rigid fan design
