Description
This reliable 9″ straight blade electric fan moves 475 CFM at 0 static pressure, drawing only 6.4 amps. Included in kit: fan, mounting kit, mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.
Specifications
- Fan size: 9″
- CFM: 475
- Amp draw: 5.5

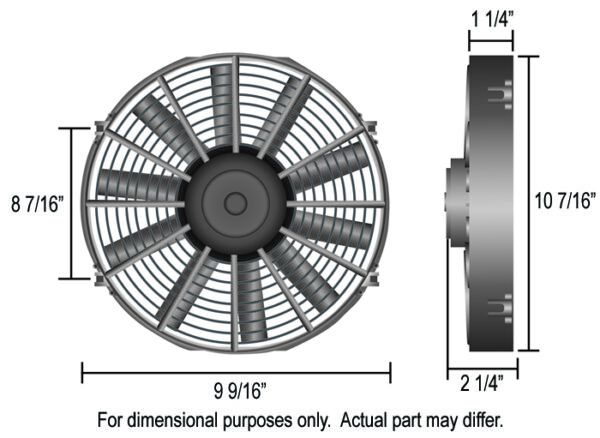

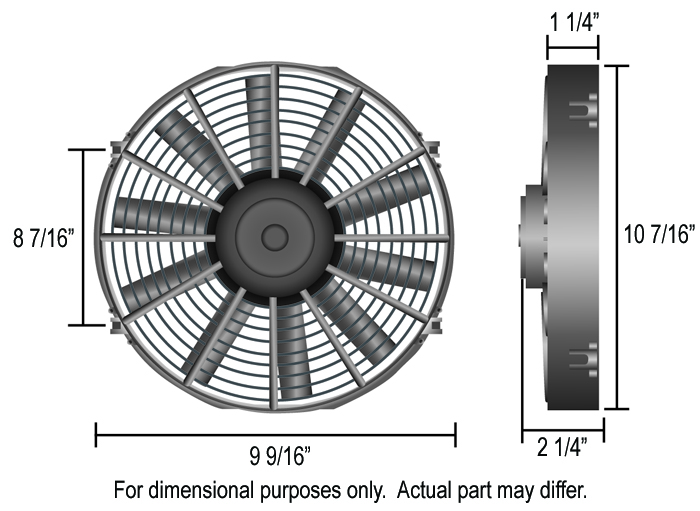

- Width: 9-9/16″
- Height: 10 7/16″
- Depth: 1-1/4″
- Overall depth: 2-1/4″
- Mounting: 4-7/16″
- Airflow: Puller (reversible)
Features
- Ultra low profile design
- Straight fan blades
- 475 CFM
- Reversible design – can be used as a pusher or puller

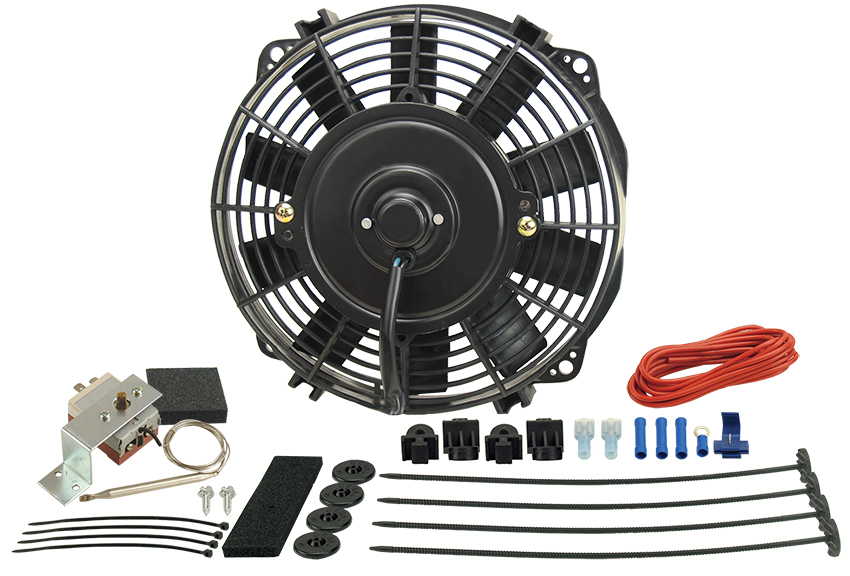

- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections
