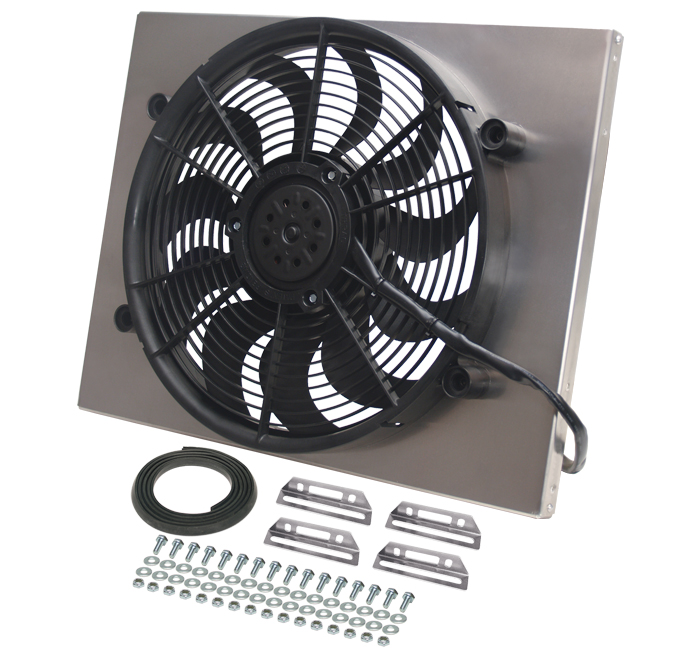

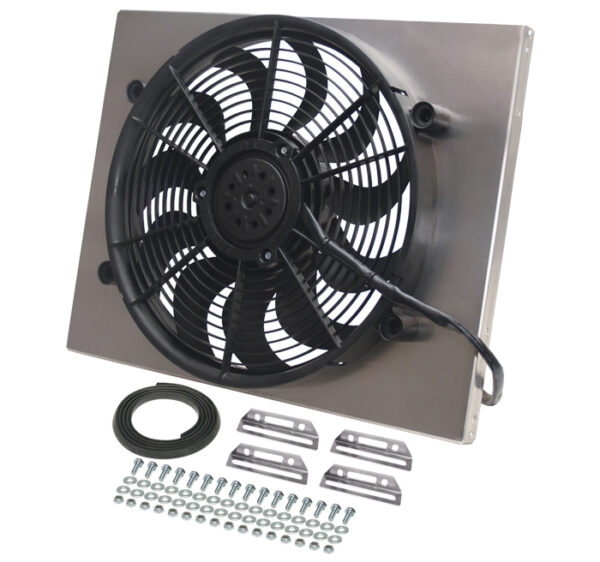

Powerpack – High Output Single 17” Electric RAD Fan/Aluminum Shroud Kit – 22 1/4”W x 17 5/8”H x 3”D

Description

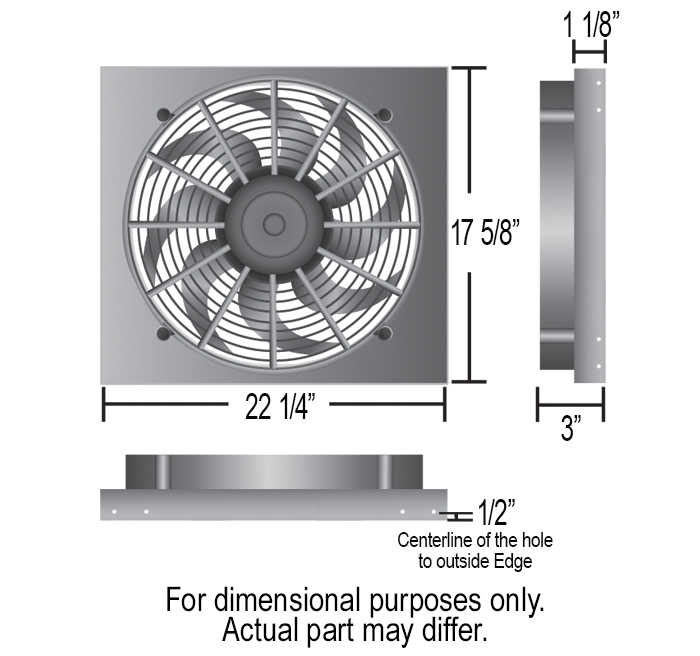

This High Output Single RAD Fan Powerpack is part of the HO Aluminum Shrouded Fan Series designed with popular applications in mind. This assembly measures 22 1/4″ wide by 17 5/8″ top to bottom and only 3″ thick overall to offer a precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 17″ high output two-speed fan is one of the best in our line-up offering 2400 CFM when on high to create the most airflow possible in a compact size.

Specifications

• CFM high/low: 2400/1800
• Amp draw high/low: 23.5/17.4
• Width:22 1/4″
• Height: 17 5/8″
• Depth: 1-1/8″
• Overall depth: 3″
• Mounting Hole(s) center to outside edge: 1/2″

Features

• Designed for primary cooling
• Raw aluminum shroud construction can be polished, painted or anodized
• High Output 265 watt motor
• 2400 CFM
• Ultra-quiet patented skewed blade design
• Puller (engine side) applications only
• Kit includes mounting brackets and complete mounting hardware
