Description
This 12″ straight blade electric fan is a good performer, moving 750 CFM at 0 static pressure, drawing only 9.0 amps. Includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.

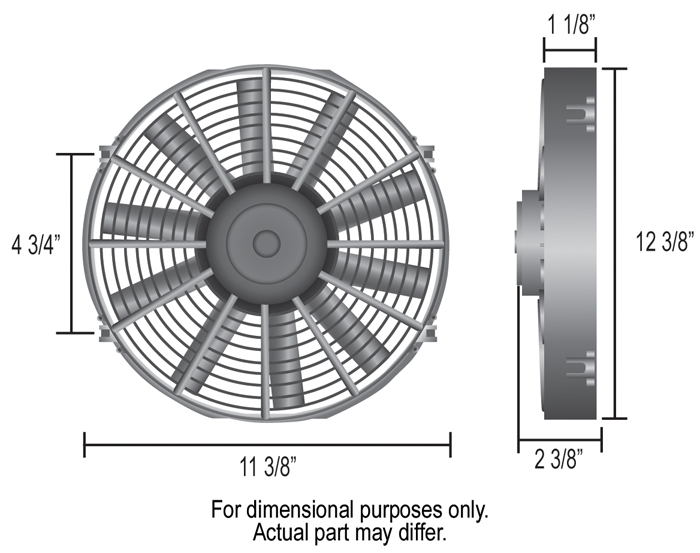

Specifications
- Fan size: 12″
- CFM: 750
- Amp draw: 9.0
- Width: 11-3/8″
- Height: 12-3/8″
- Depth: 1-1/8″
- Overall depth: 2-3/8″
- Mounting: 4-3/4″
- Airflow: Puller (reversible)
Features
- Ultra low profile design
- Straight fan blades
- 750 CFM
- Reversible design – can be used as a pusher or puller

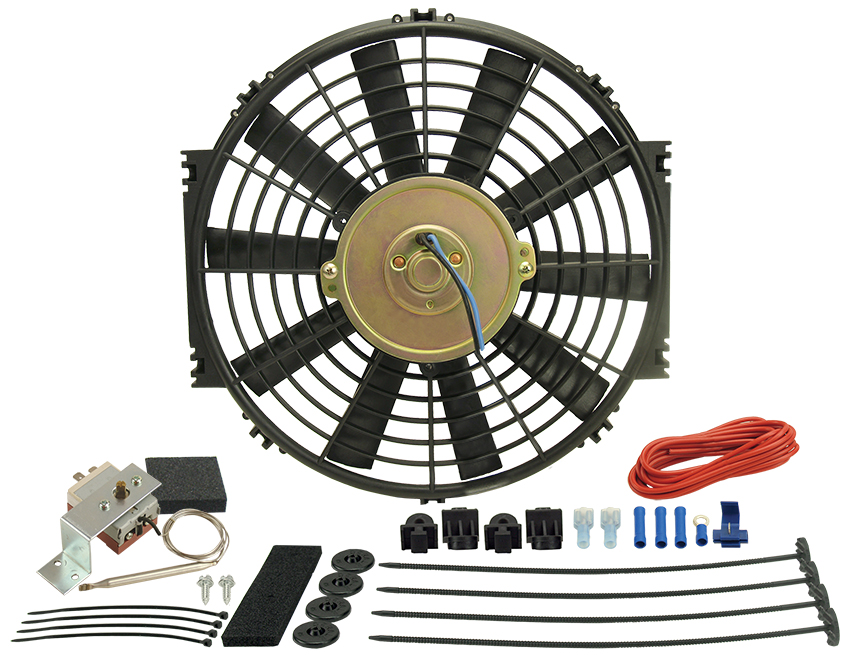

- Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections
