10″ Dyno-Cool Electric Fan and Mechanical Fan Controller Kit, Premium

Description

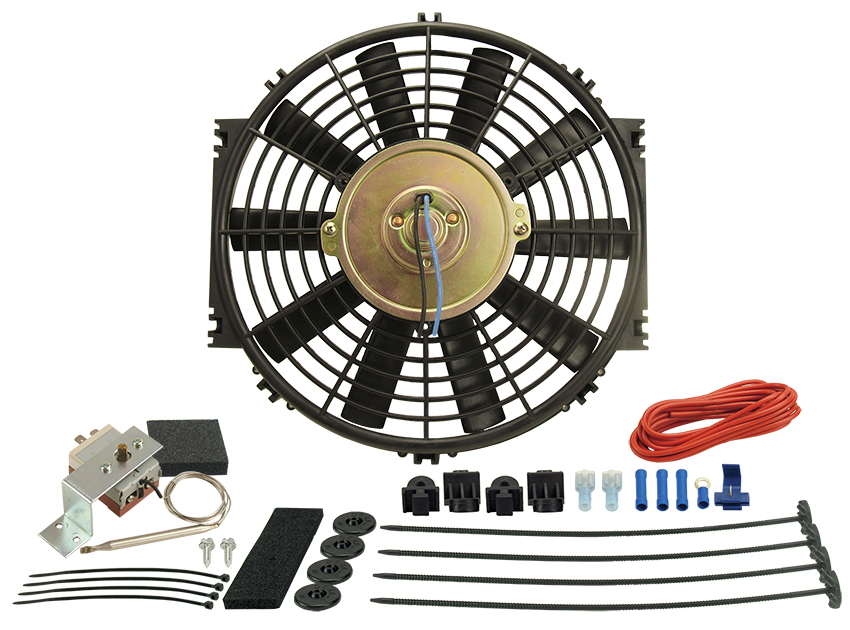

Our 10″ straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.

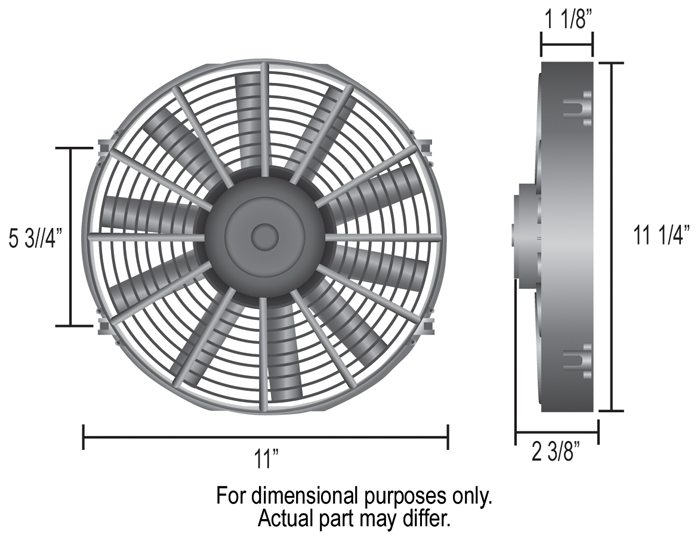

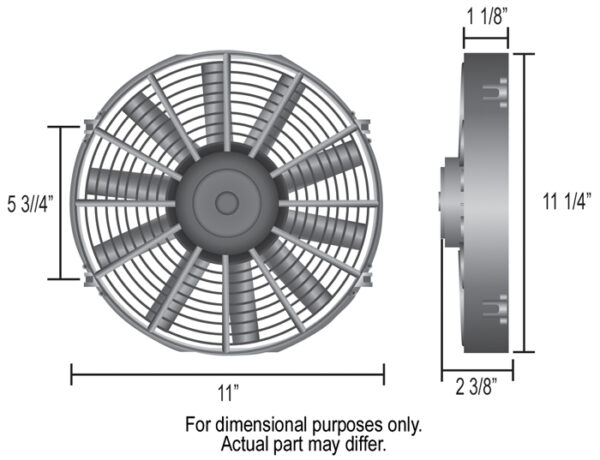

Specifications

• Fan size: 10″
• CFM: 500
• Amp draw: 6.4
• Width: 11″
• Height: 11-1/4″
• Depth: 1-1/8″
• Overall depth: 2-3/8″
• Mounting: 5-3/4″
• Airflow: Puller (reversible)

Features

• Ultra low profile design
• Straight fan blades
• 500 CFM
• Reversible design – can be used as a pusher or puller
• Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections
