14” H.O. Single RAD Pusher/Puller Fan with Premium Mount Kit – 14-1/2”W x 14-1/2”H x 2-5/8”D

Description

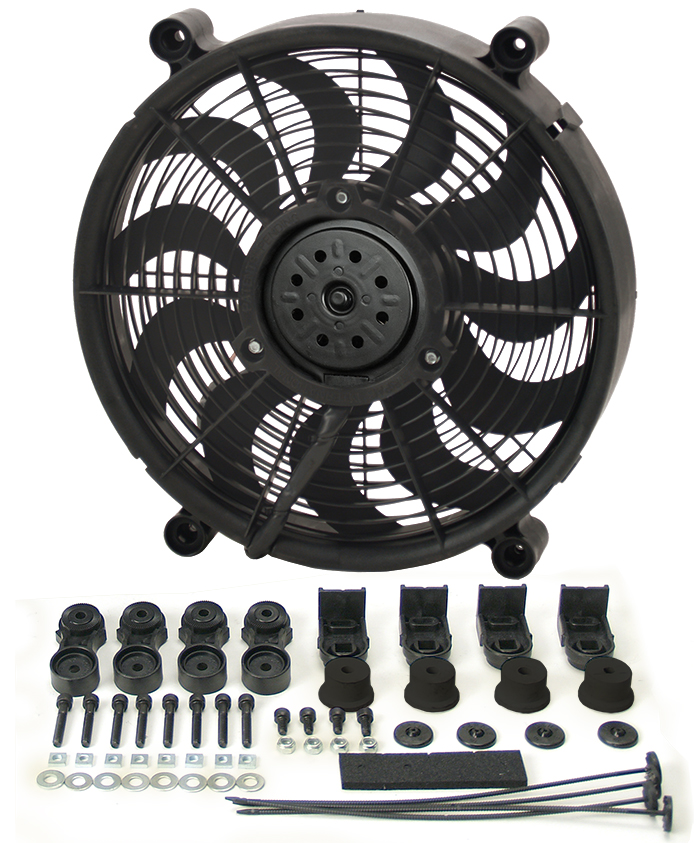

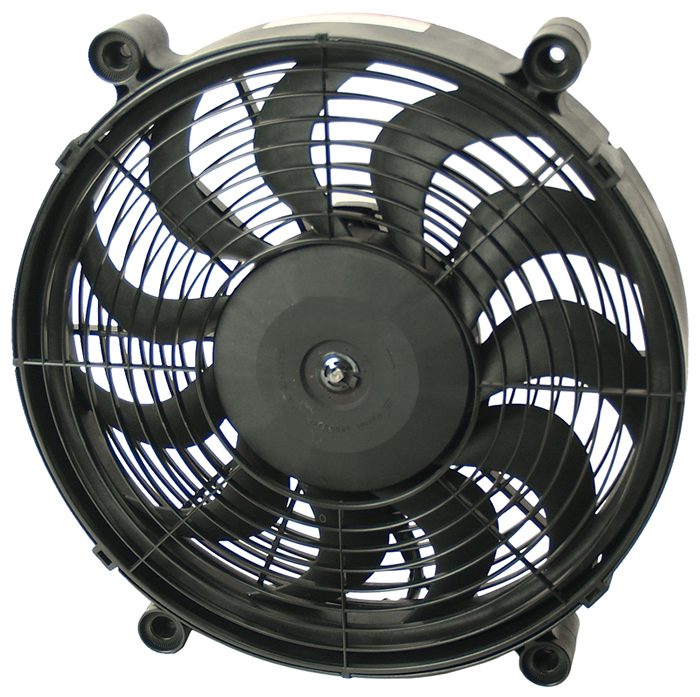

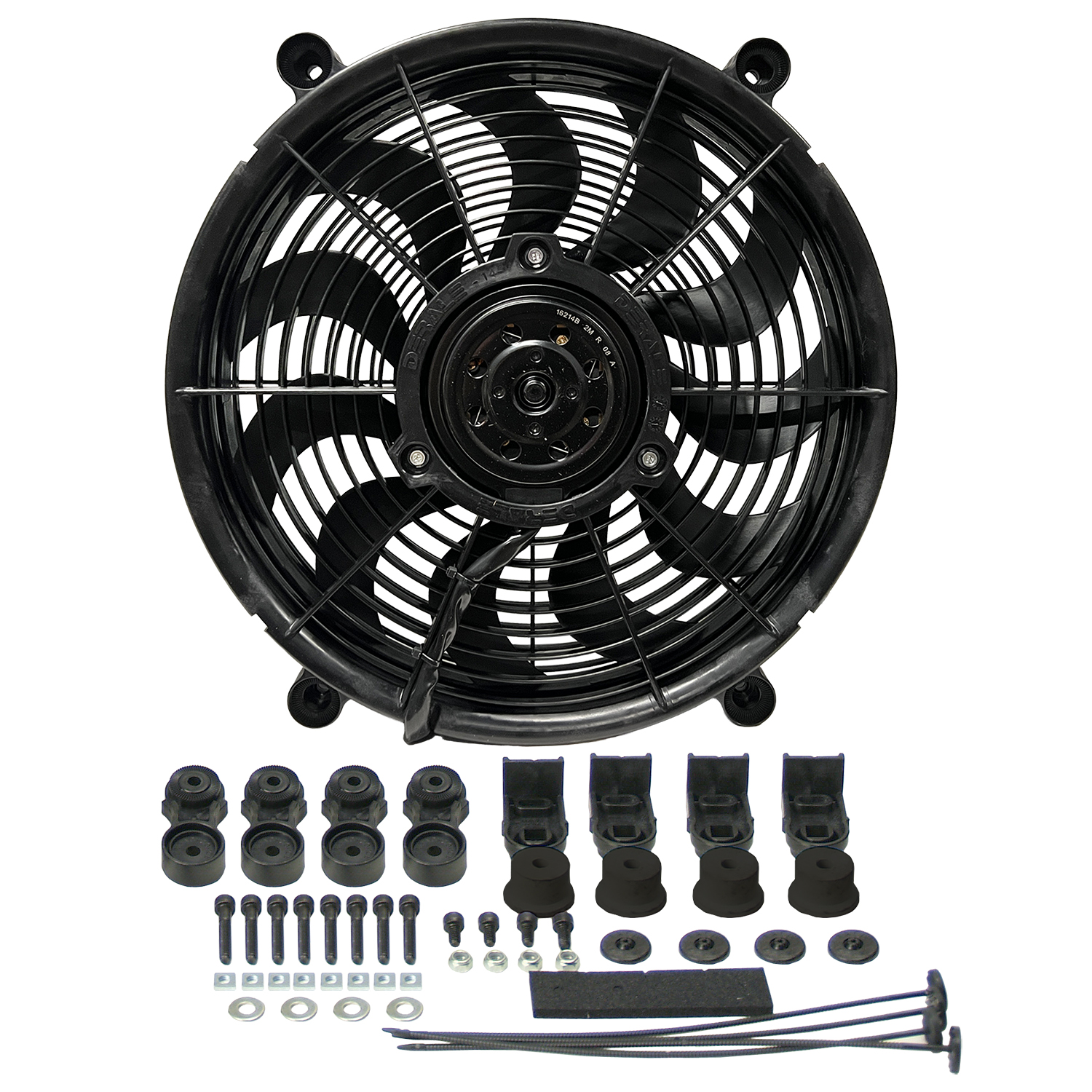

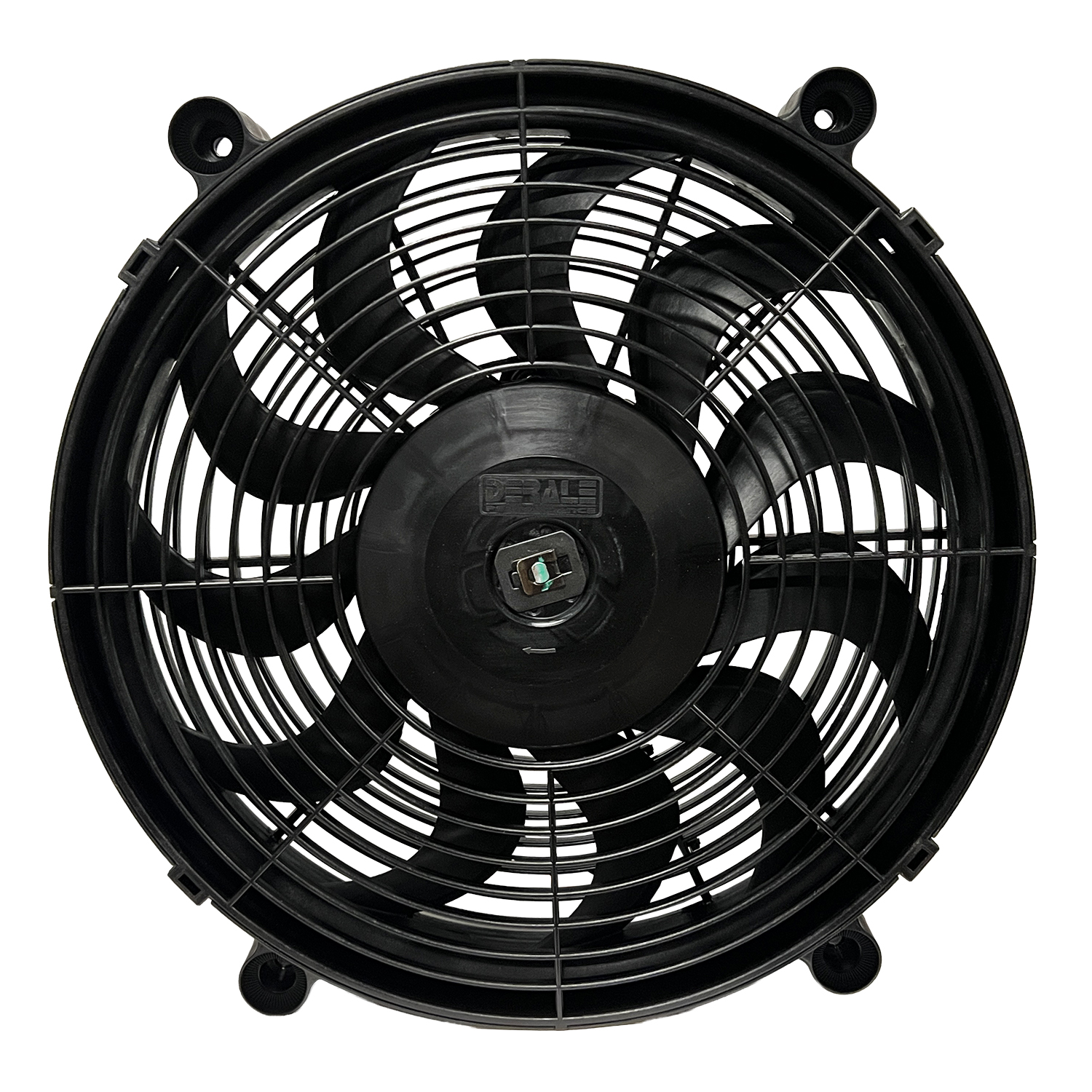

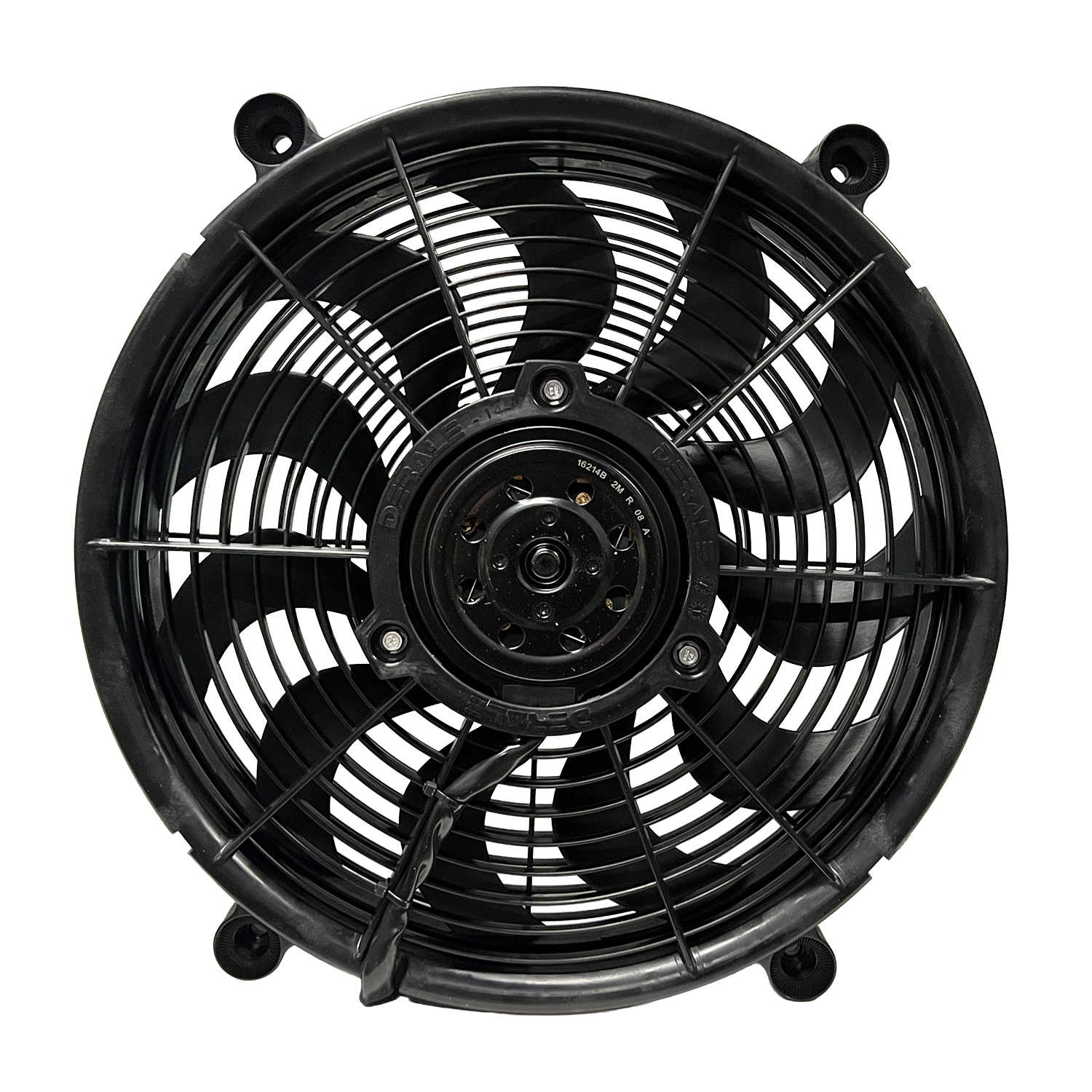

A very popular primary cooling fan, this 14″ High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades,  Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps. Includes a patented ratchet mounting system for a professional installation.

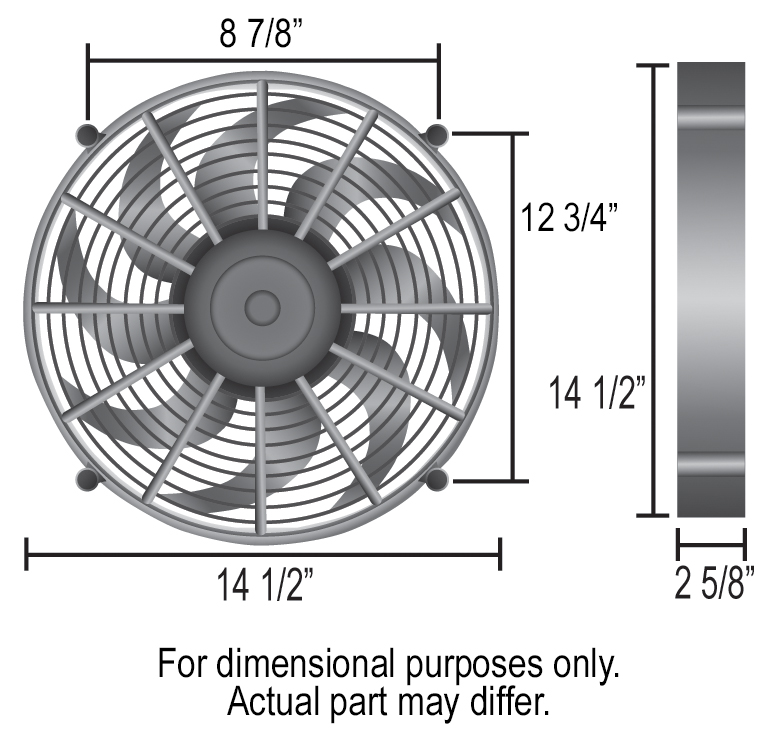

Specifications

• CFM high/low: 2100/1500
• Amp draw high/low: 22/16.2
• Width: 14-1/2″
• Height: 14-1/2″
• Depth: 2-5/8″
• Mounting: 8-7/8″ x 12-3/4″

Features

• Mounts as a Pusher or Puller without flipping blade or switching motor leads

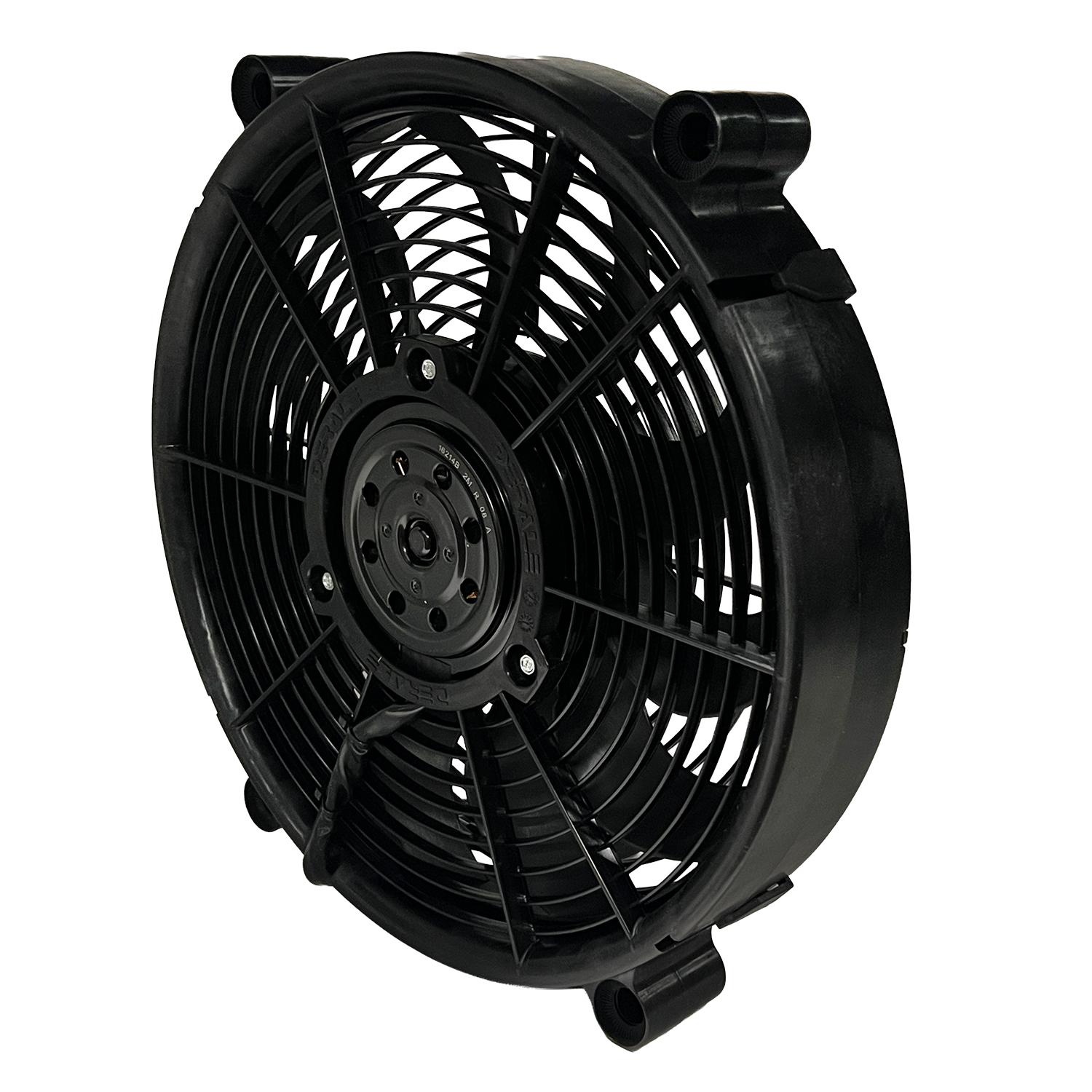

• State-of-the-art symmetrical design
• High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
• 2100 CFM on high speed / 1500 CFM on low speed
• Ultra-quiet patented skewed blade design

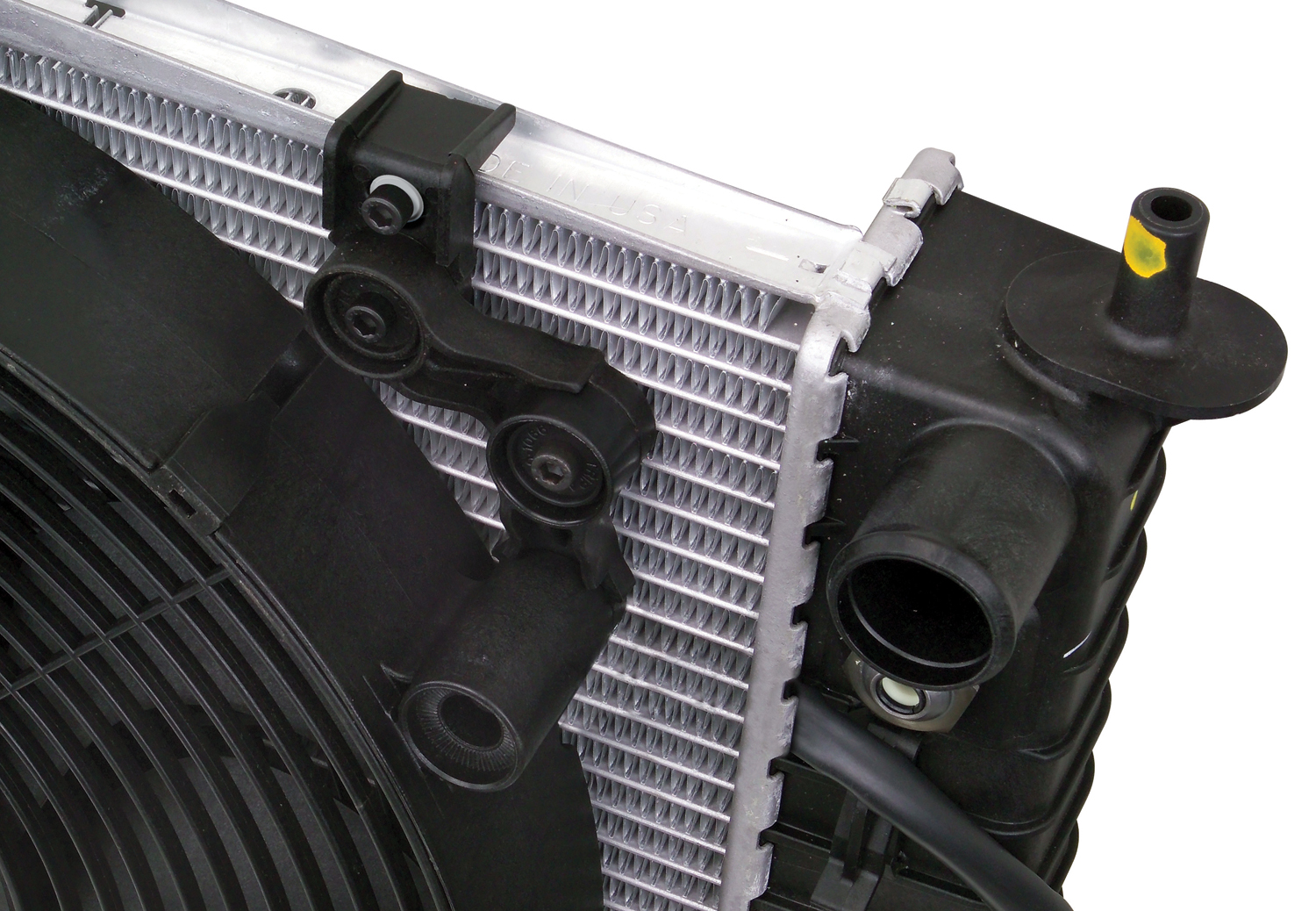

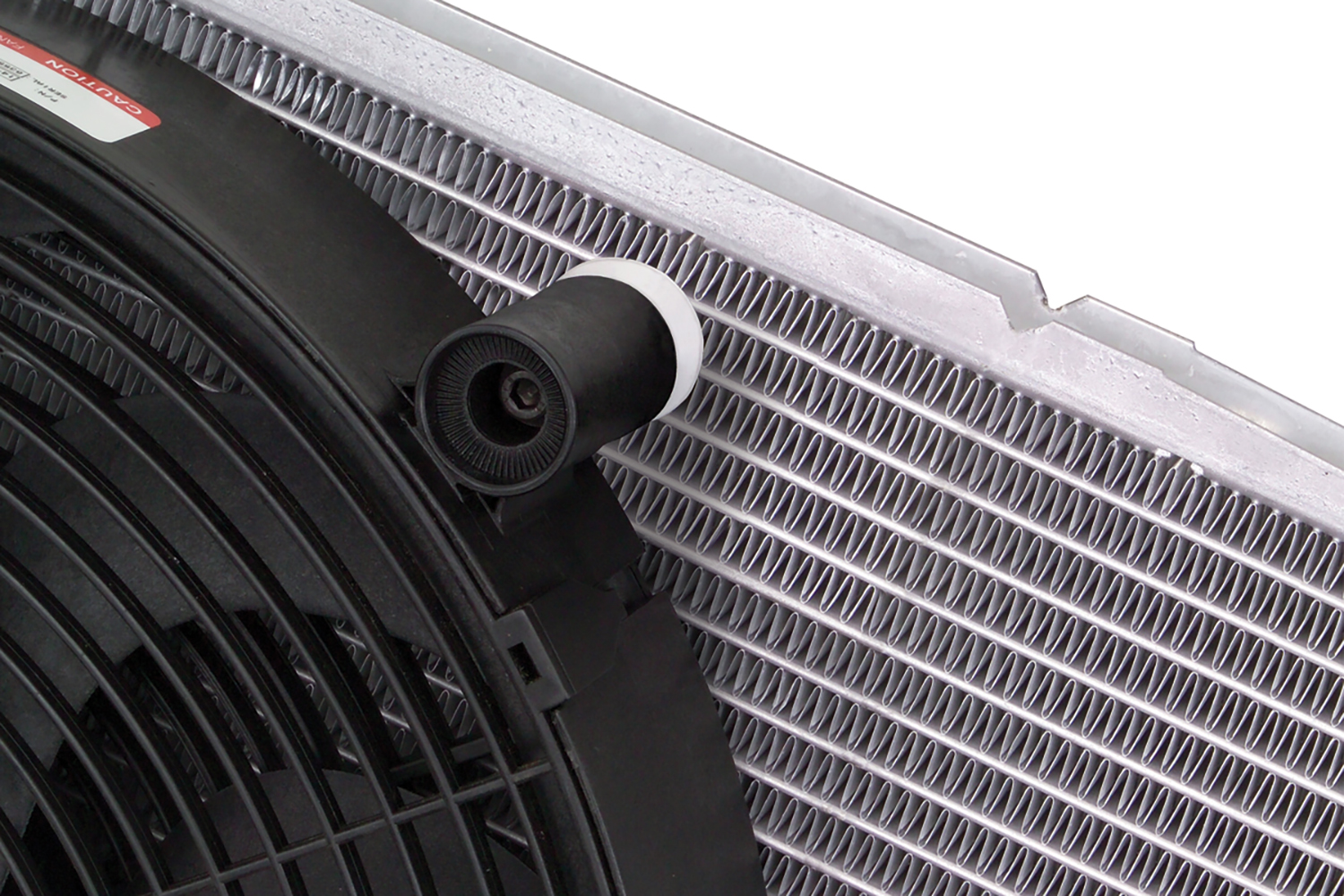

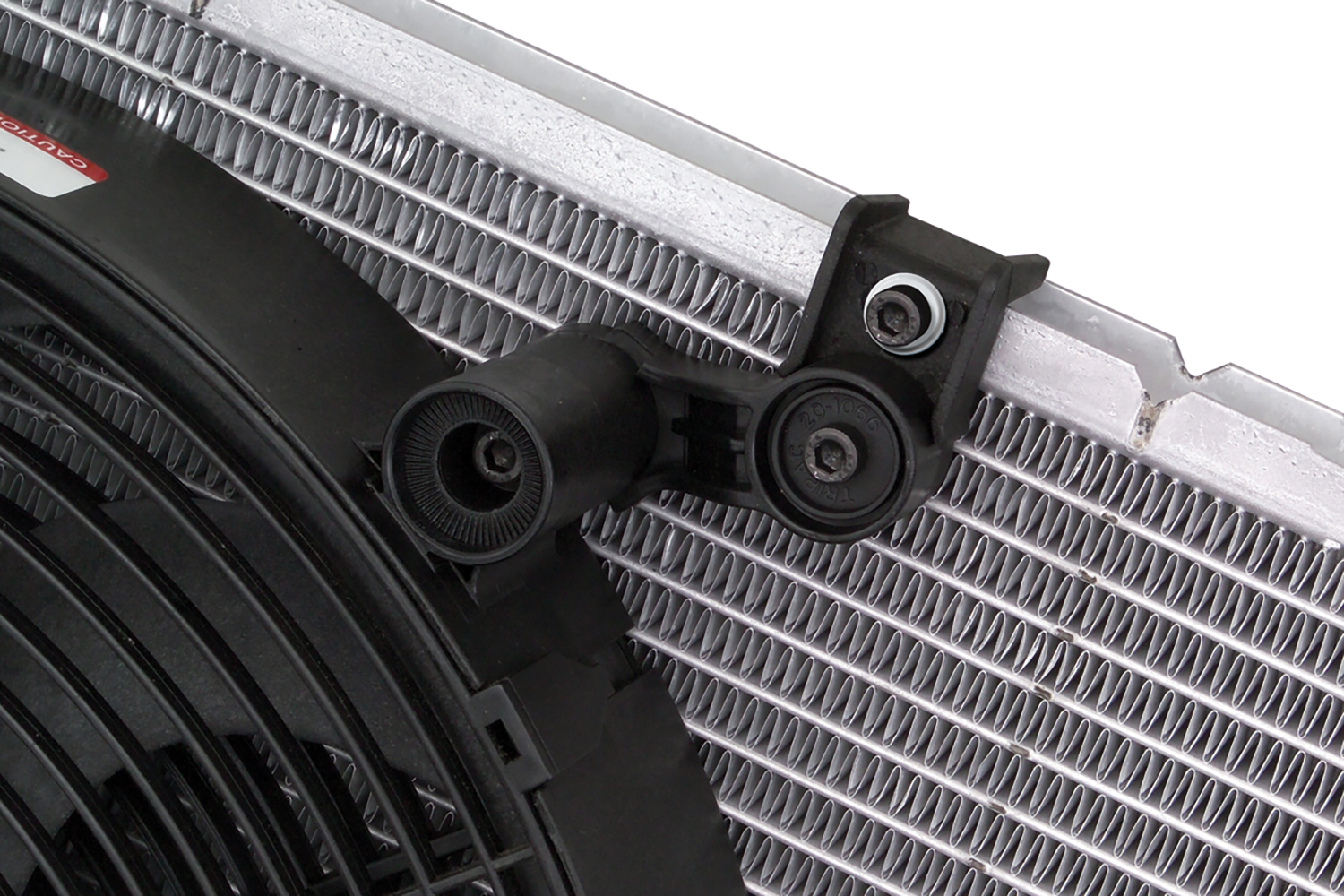

• Patented ratchet mounting system
