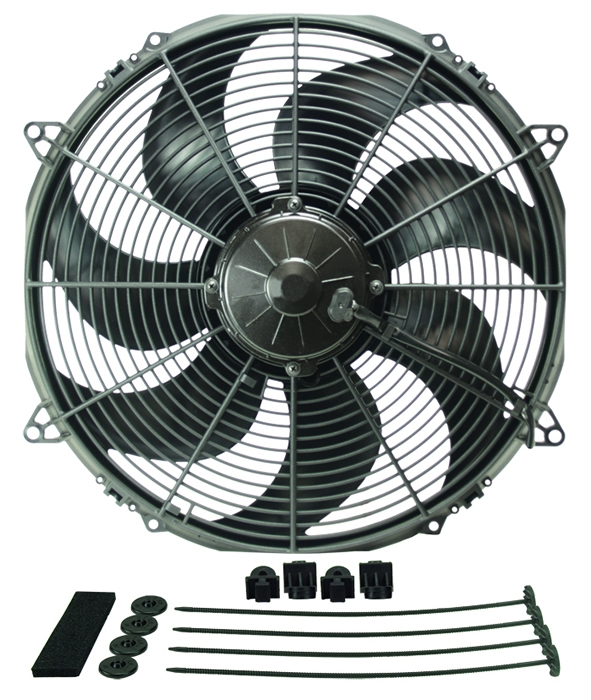

16″ High Output Paddle Blade IP68 Electric Puller Fan

Description

This powerful 16″ diameter unit uses 7 thick curved blades to pull large volumes of air in the toughest environments. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.

Specifications

• CFM: 1918
• Amp Draw: 25.4

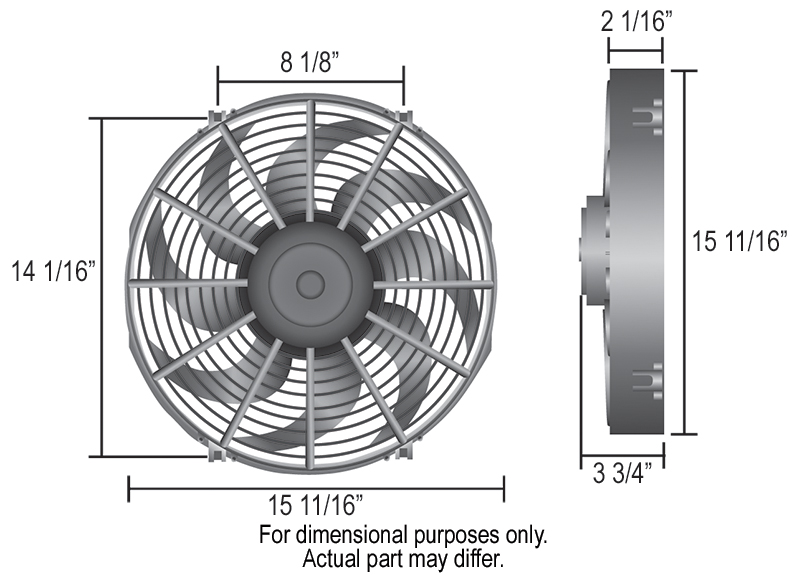

• Width: 15-11/16″
• Height: 15-11/16″
• Depth: 3-3/4″
• Mounting: 8-1/8″ x 14-1/16″

Features

• Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
• 7 thick curved blades pull large volumes of air in the toughest environments
• Designed for maximum performance at high static pressure loads for more effective cooling.
• Long lasting, sealed IP68 certified waterproof & dustproof motor
• 1918 CFM
• Includes mounting kit and illustrated installation instructions
• Puller only (engine side)
