15 Row Atomic Cool Plate & Fin Remote Transmission Cooler Kit, -8AN

Description

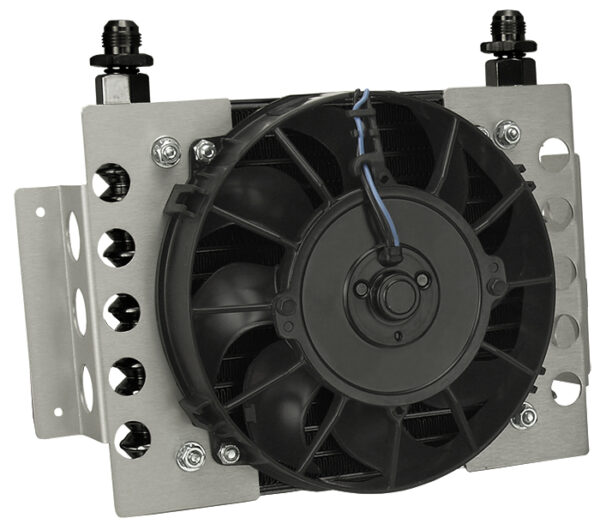

A step up from Tube & Fin type coolers, this popular remote cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 1/2″ transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Atomic-Cool is designed for heavy duty towing and hauling, and can add years to the life of your transmission. Made in the USA.

Specifications

• Cooler style: Plate & Fin
• Inlet size: 5/8″-18 o-ring female x -8AN male
• Fan size: 8″
• CFM: 500
• Amp draw: 4.8
• Width: 12-3/4″
• Height: 9-3/8″
• Depth: 4-5/16″
• Inlet dim: 8-9/16″
• Mounting: 11-15/16″ x 4″
• Hose size: 1/2″
• Hose length: 10′
• 22,000 BTU/Hr

Features

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency OEM style Plate & Fin cooler
• Clear anodized aluminum shroud
• 500 CFM reversible Tornado electric fan
• -8AN inlet size
• Cooler capacity is an additional 17oz

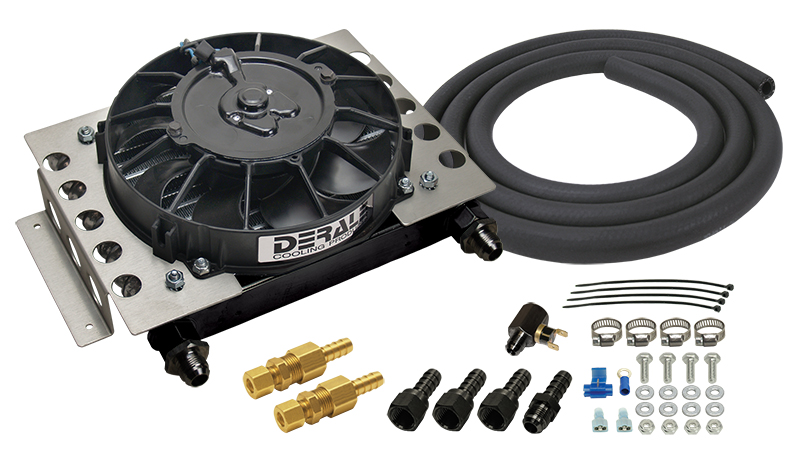

• Transmission cooler kit includes fan mounted cooler, two -8AN fittings hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, two 1/2″ compression fittings, and mounting hardware


  ---
