Ford E4OD, 4R100, 5R110 & 5R110W Transmission Cooling Pan

Description

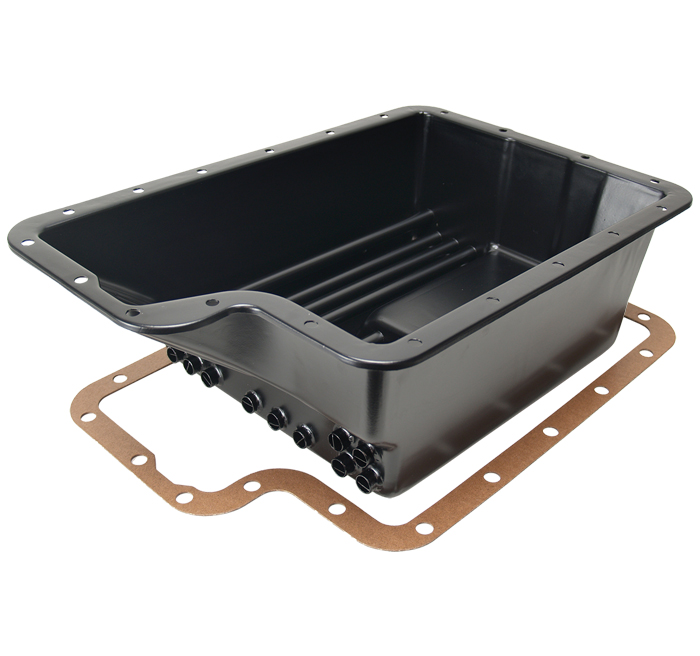

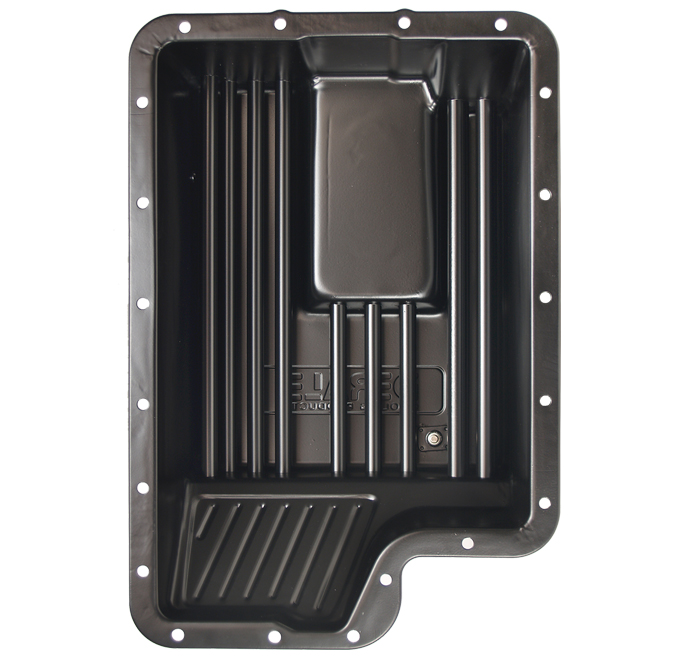

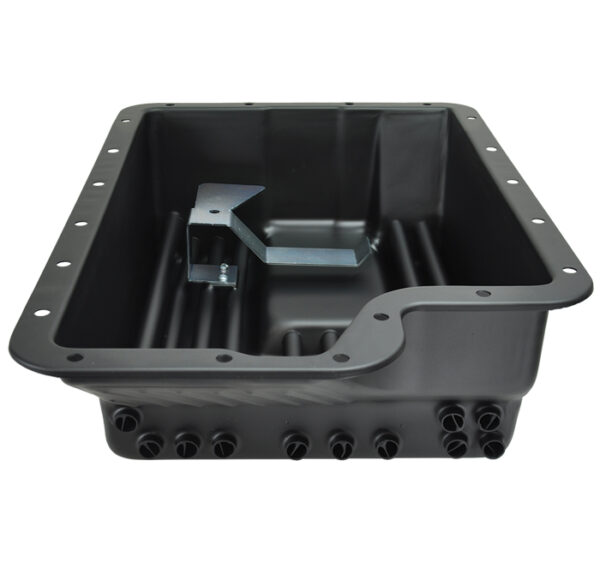

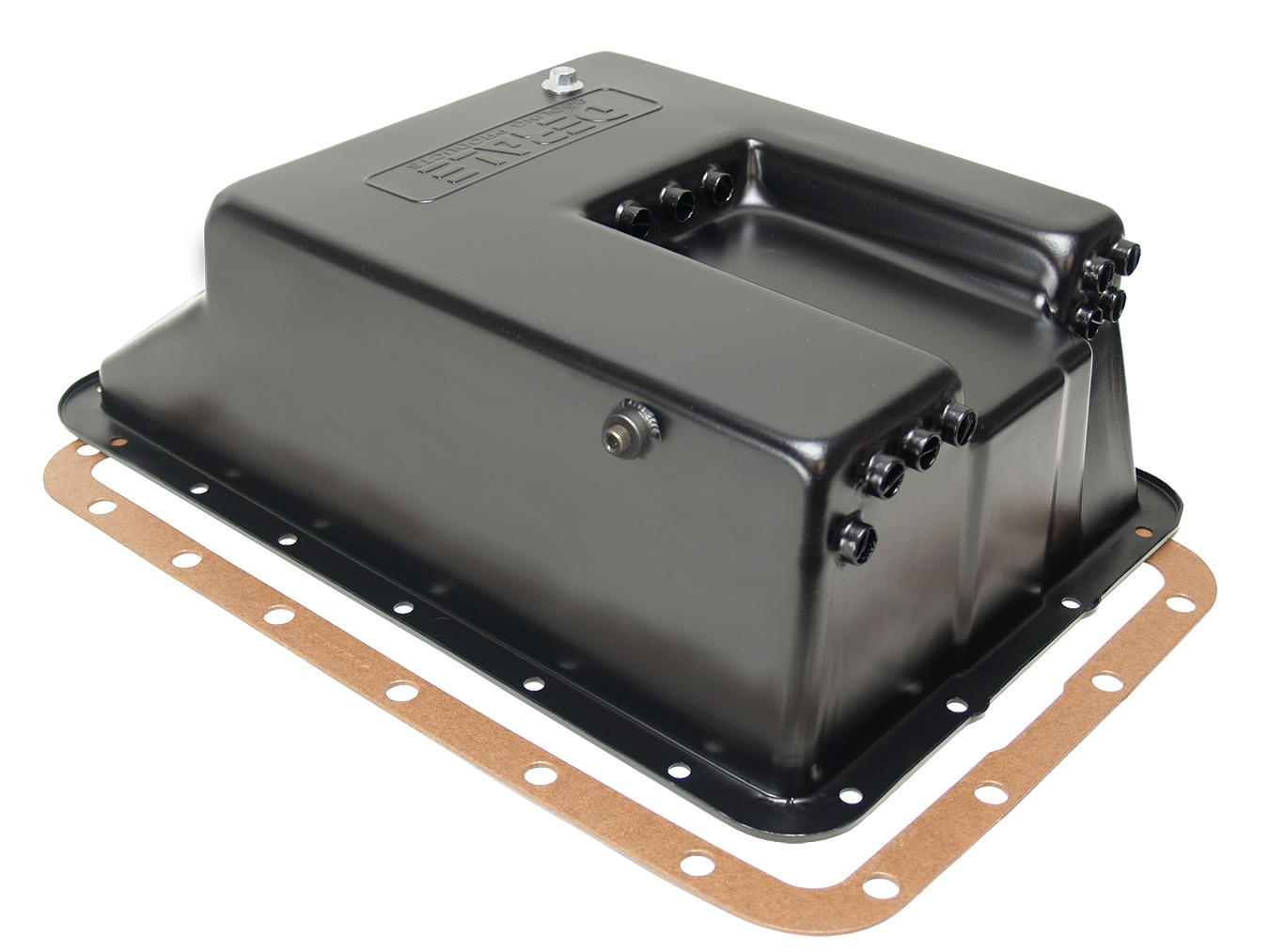

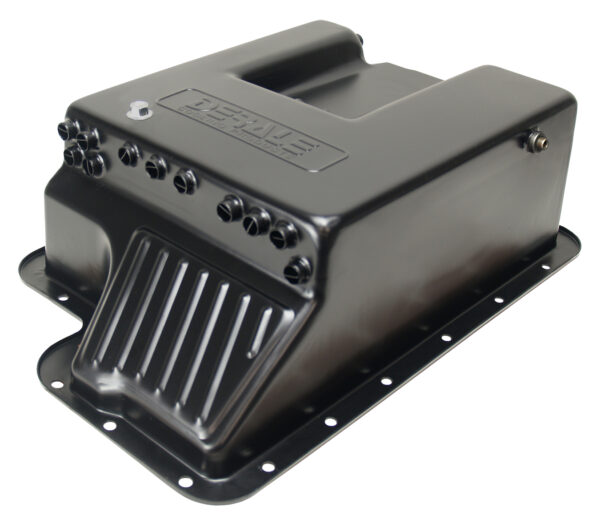

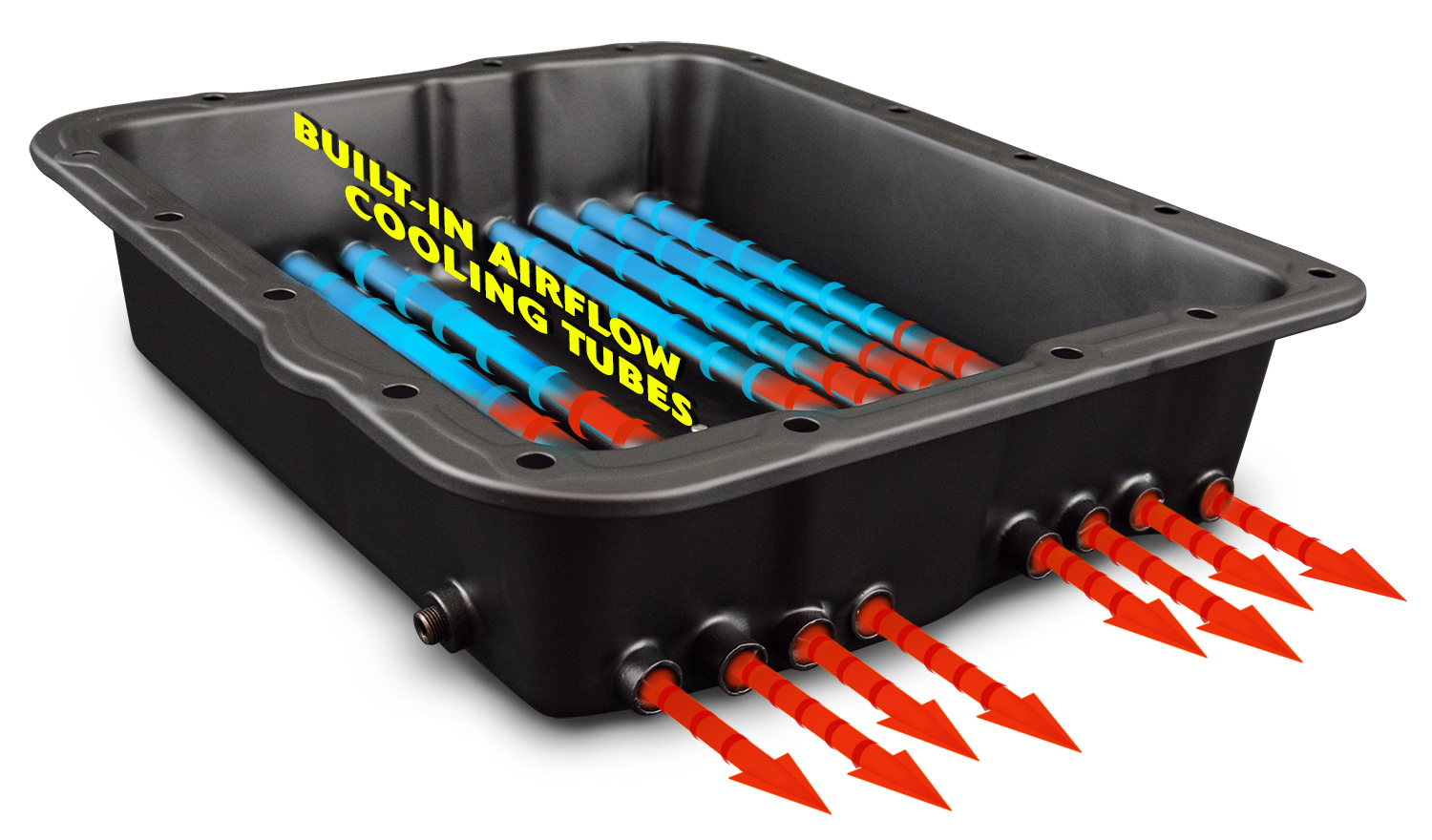

Derale’s Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford’s E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We’ve included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8″ NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8″ NPT temperature sender plug.

Specifications

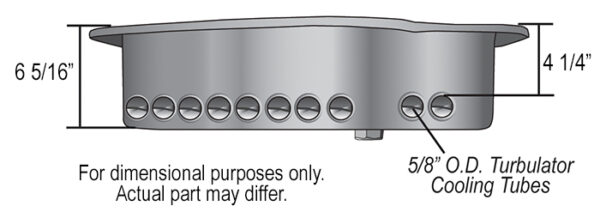

• Pan Dimensions: 20 3/8″ Length x 13 3/4″ Width x 6 5/16″ Height
  Drain plug adds 1/4″ to height
• Tube depth: 4-1/4″
• Temp bung size: 1/8″ NPT
• Drain plug size 1/2″-20
• Replacement drain plug Derale 14000

Features

• Heavy gauge stamped steel construction
• Two stage heat dissipating black finish
• 1/8″ NPT temperature sender port
• Reduces fluid temperatures up to 50°F
• Increases fluid capacity by 7 qts. 30 oz.

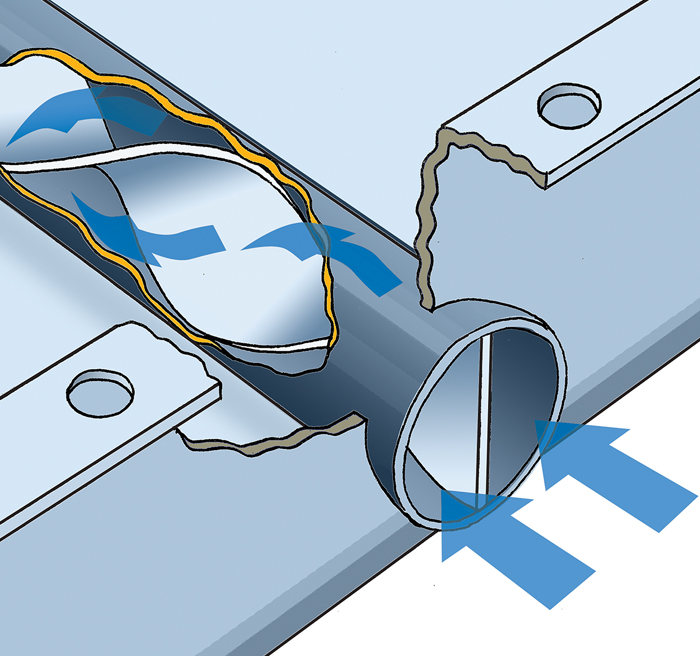

• Patented turbulator cooling tubes add heat transfer capability
• Magnetic drain plug with increased magnetic strength and rubber/steel washer
• Uses OEM filter with no filter extension required


  ---

  Part No. 14208 Transmission Cooling Pan
