Description

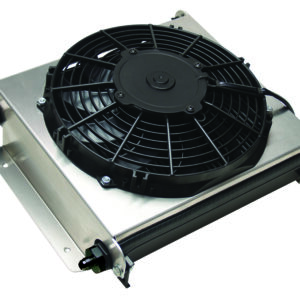

Equipped with our top of the line 25 row stacked plate cooler, this new remote cooler can literally be mounted almost anywhere. Making it a popular addition for performance cars, hot rods, muscle cars and trucks. Our Stacked Plate cooler coupled with a Tornado fan and aluminum shroud, this kit comes with a complete installation kit to install easily on all vehicles with 5/16″ or 3/8″ transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Hyper-Cool is perfect for extreme duty towing and hauling and can add years to the life of your transmission.
Specifications
- Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8″-14 o-ring female x -6AN male
- Fan size: 8″
- CFM: 500
- Amp draw: 4.8

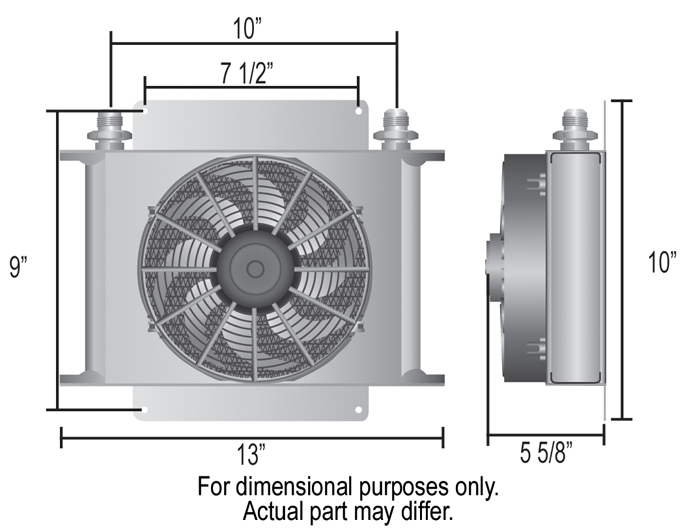

- Width: 13″
- Height: 10″
- Depth: 5-5/8″
- Inlet dim: 10″
- Mounting: 7-1/2″ x 9″
- Hose size: 3/8″
- Hose length: 10′
- 46,000 BTU’s Per Hour
- 16oz. Additional Fluid Capacity
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency Stacked Plate 10000 Series cooler
- Clear anodized aluminum shroud
- 500 CFM Tornado electric fan
- -6AN inlet size
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength

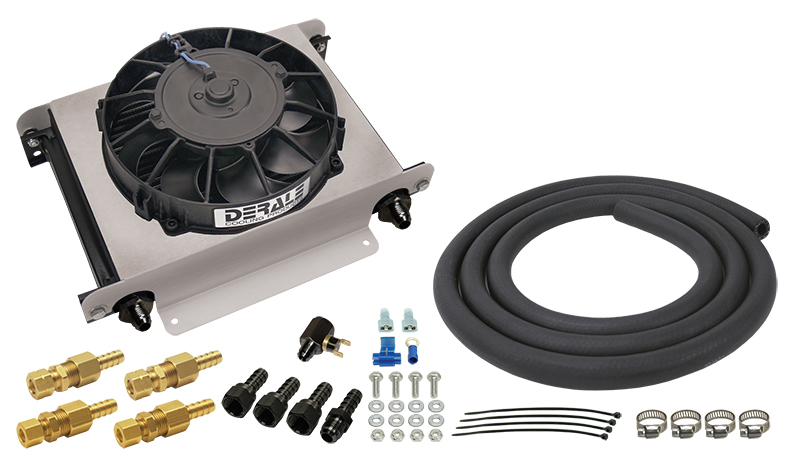

- Transmission cooler kit includes fan mounted cooler, two -6AN fittings hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16″ and 3/8″ compression fittings, and hardware
