15 Row Atomic Cool Plate & Fin Remote Cooler, -6AN and -8AN

Description

A step up from our Electra-Cool and Econo-Cool Tube & Fin type coolers, the popular Atomic-Cool remote cooler can literally be mounted anywhere available space permits, making it a popular addition for performance cars, hot rods, muscle cars and trucks. Featuring a heavy duty yet compact plate and fin cooler coupled with an 8″ High Output electric fan and aluminum brackets. Includes 2 each -6AN male fittings and -8AN male fittings. The Atomic-Cool is perfect for heavy duty towing and hauling to provide a durable, trouble-free way to add years to the life of your transmission. Also recommended for engine, power steering and fuel cooling.

Specifications

• Cooler style: Plate & Fin
• Inlet size: 5/8″-18 o-ring female x -6AN male
• Fan size: 8″
• CFM: 366
• Amp draw: 5.5

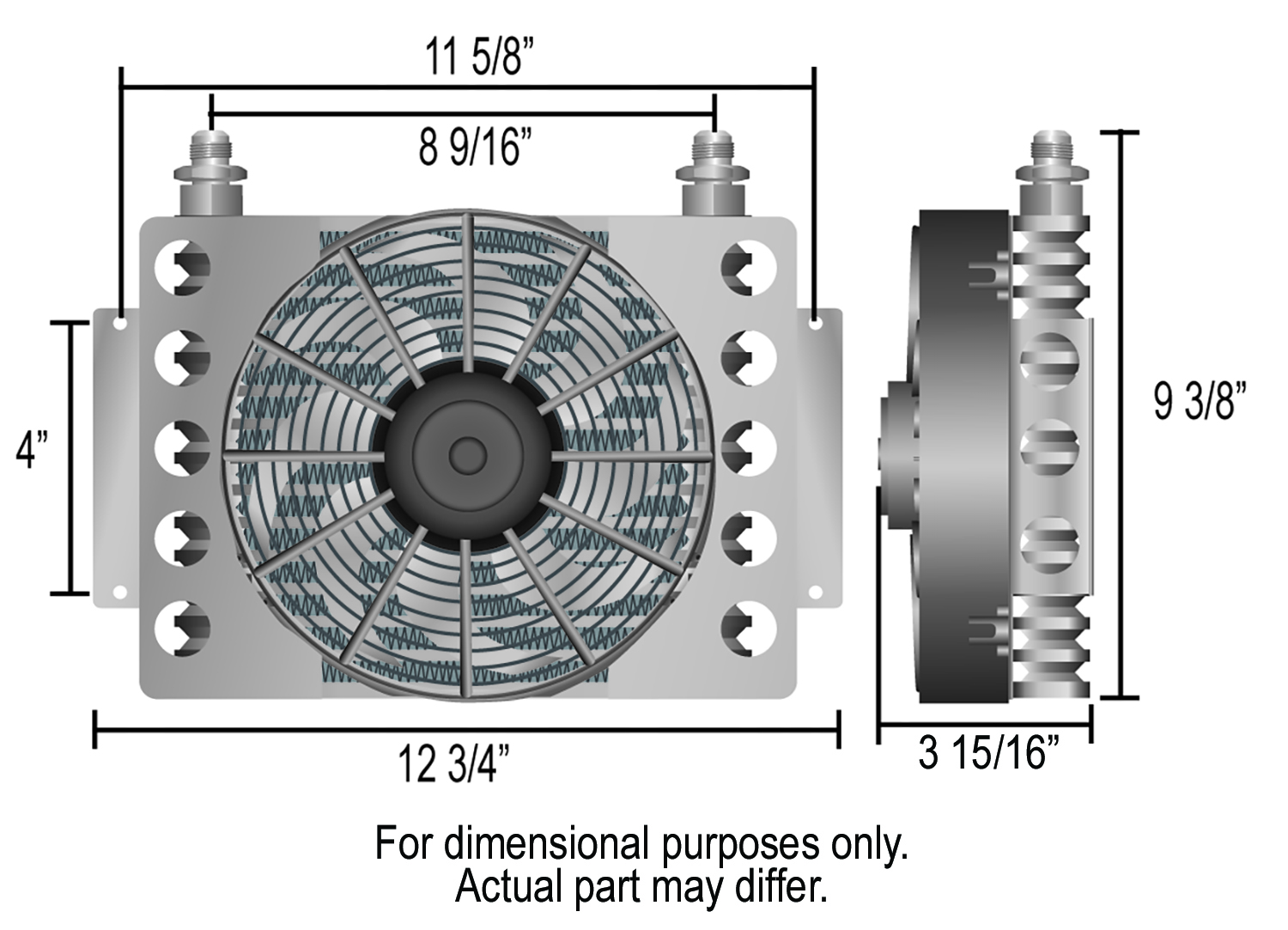

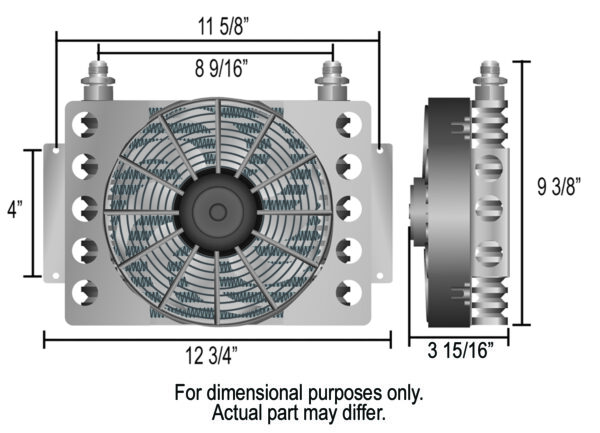

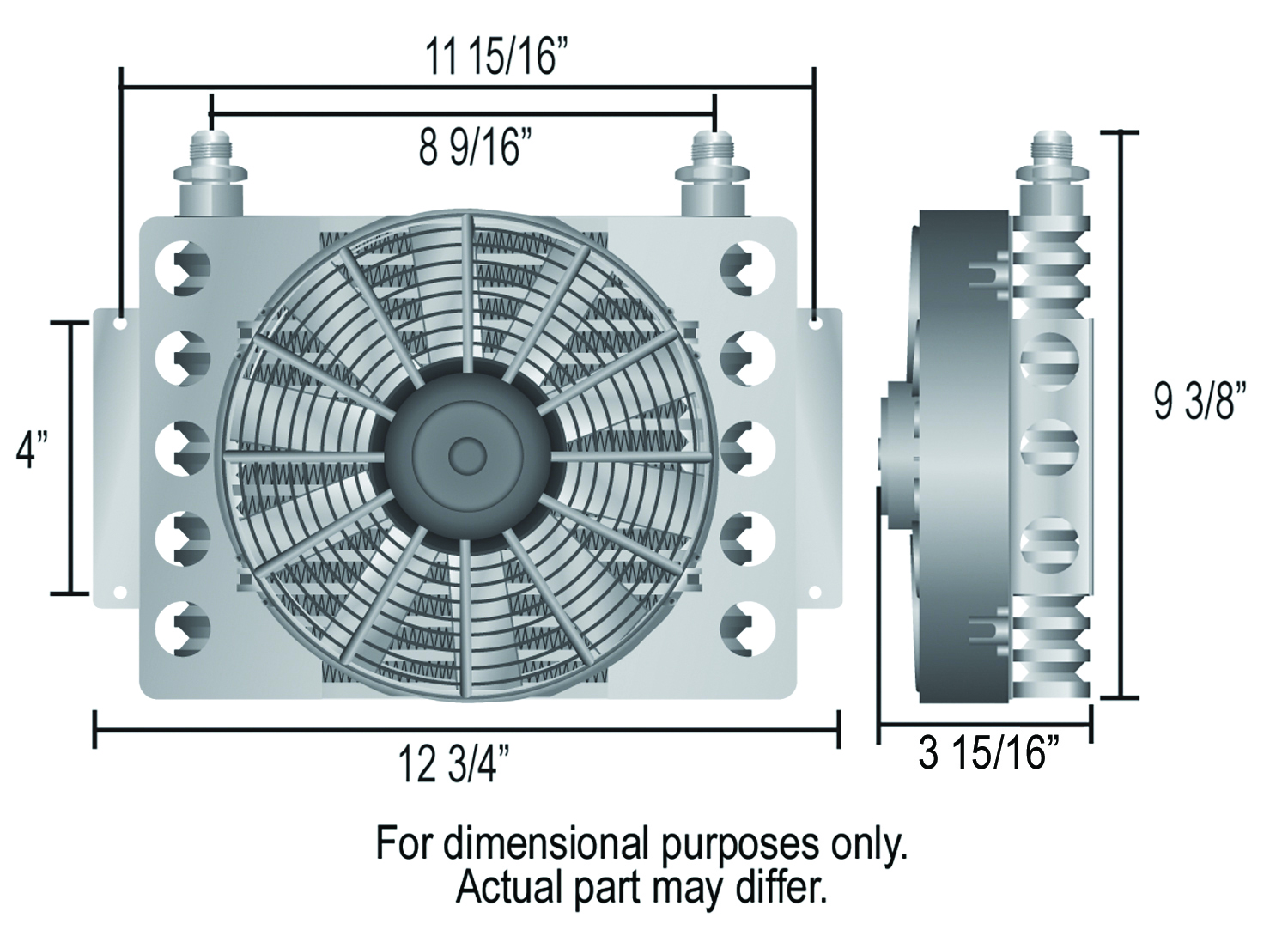

• Width: 12-3/4″
• Height: 9-3/8″
• Depth: 3-15/16″
• Inlet dim: 8-9/16″
• Mounting: 11-5/8″ x 4″
• 22,000 BTU/Hr

Features

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• High efficiency OEM style Plate & Fin cooler
• Clear anodized aluminum shroud
• 366 CFM water/dust proof IP68 fan for use as a puller
• -6AN or -8AN inlet size
• Cooler capacity is an additional 17oz

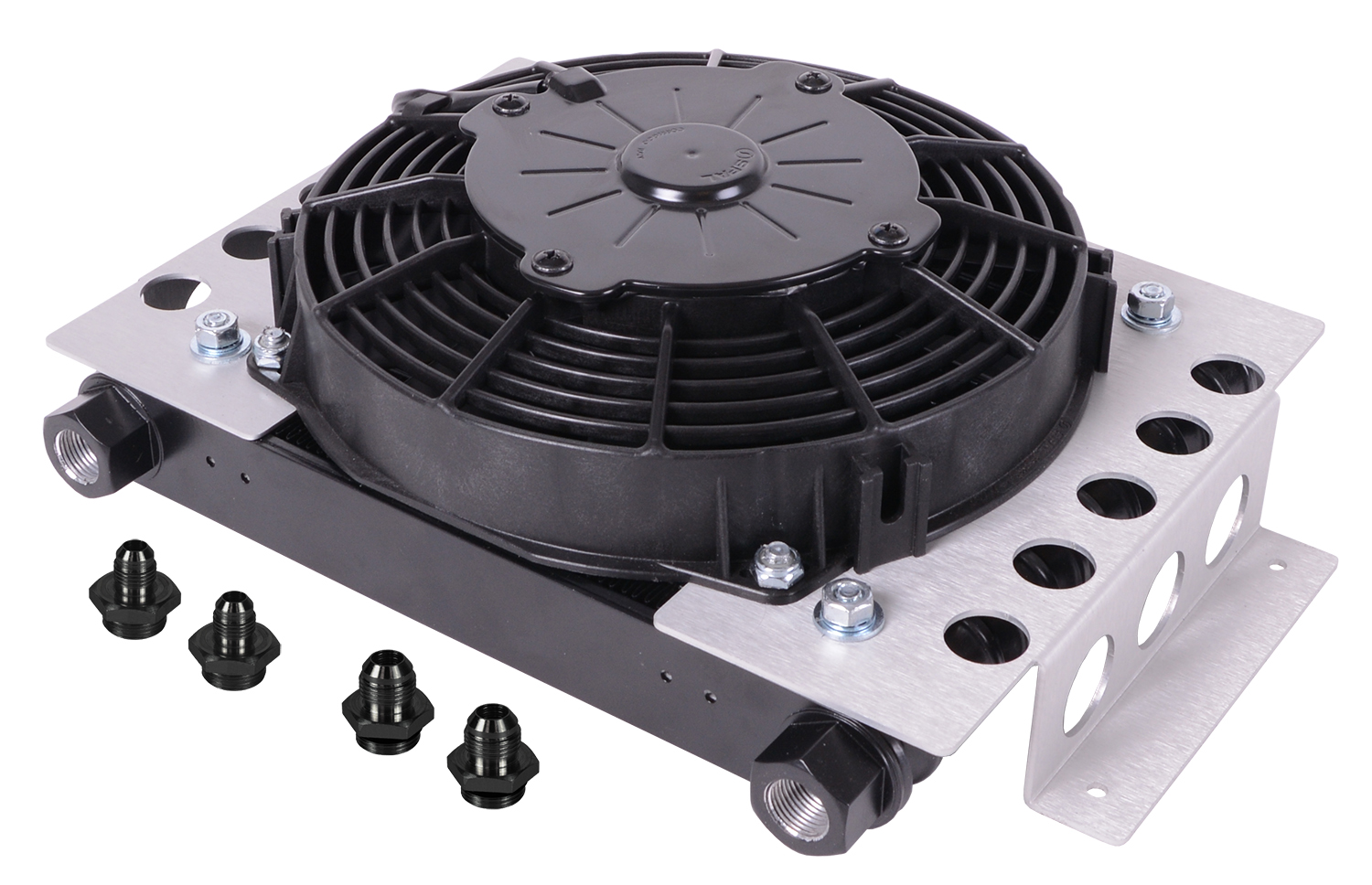

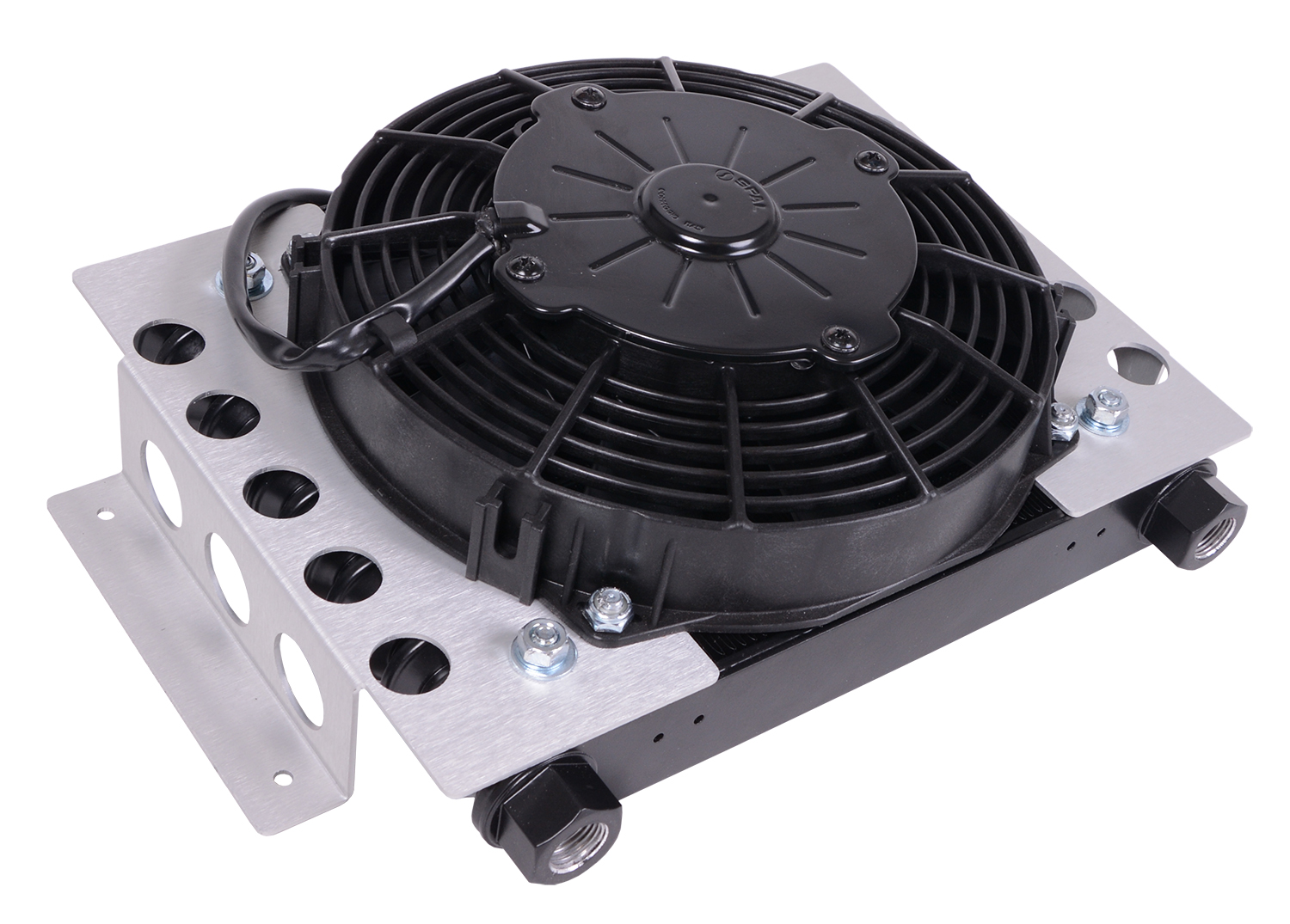

• Cooler assembly includes fan mounted cooler, two Anodized Black -6AN fittings and two -8AN fittings


  ---
