Single Mount 3/8” NPT Ports Up Remote Transmission Filter Kit, Standard

Description

Our universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. Another benefit is the increased fluid capacity which effectively cools fluid temperatures moderately and help extend the life of the transmission.

Specifications

• Nominal Micron Rating: 21
• By-Pass Valve Setting-PSI: 8-11
• Anti-Drain Back Valve: Yes
• Burst Pressure-PSI: 340
• Max Flow Rate: 7-9 GPM
• Filter Dimensions: 3-1/2″ OD x 3-7/8″
• Filter thread size: 3/4″-16
• Filter landing: 2-1/2″ to 3-1/2″
• Inlet size: 3/8″ NPT
• Barb size: 3/8″
• Hose size: 3/8″
• Hose length: 4′

Features

• Extends life of transmission
• Filters out contaminants more efficiently than OE screen type filters
• Universal – fits all automatic transmissions
• Increases fluid capacity

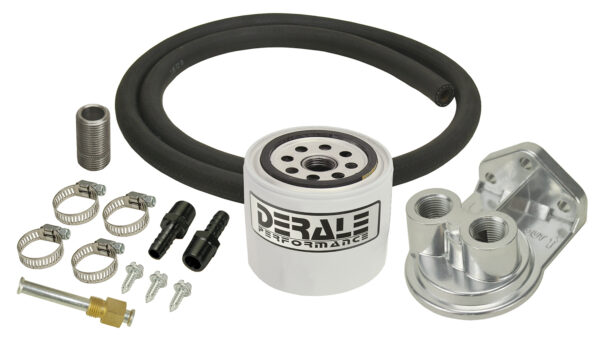

• Standard kit includes all remote filter mount, 4′ hose, filter and mounting hardware
