8 Pass 14” Dyno-Cool Remote Mount Cooler, -6AN

Description

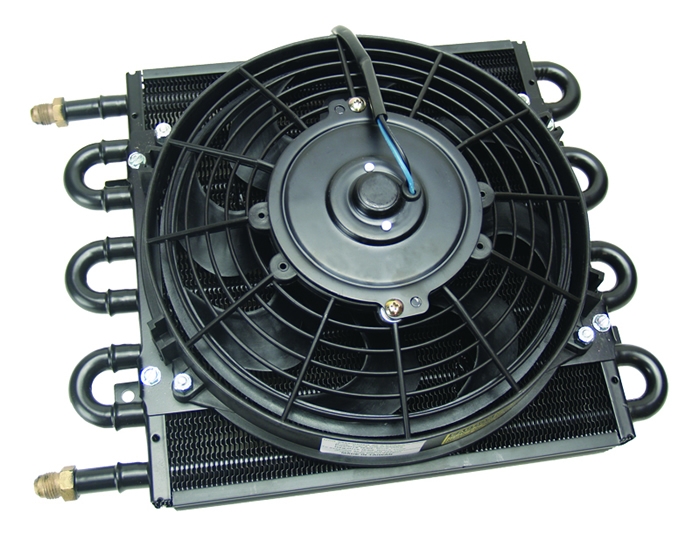

The Dyno-Cool Universal Remote Cooler can be mounted anywhere space permits, using a highly efficient copper tube/aluminum fin cooler and a curved blade fan to provide airflow and extend transmission life. Perfect for medium duty use. Mounting kit not included.

Specifications

• Cooler style: Tube & Fin
• Inlet size: -6AN male
• Fan size: 10″
• CFM: 625
• Amp draw: 6.4

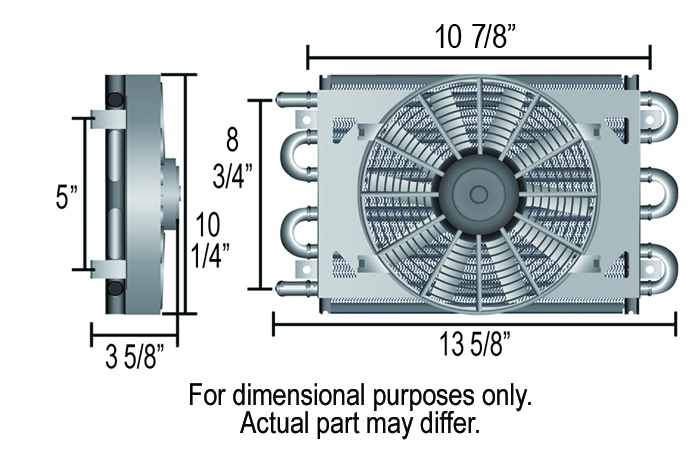

• Width: 13-5/8″
• Height: 10-1/4″
• Depth: 3-5/8″
• Inlet dim: 8-3/4″
• Mounting: 10 7/8″ x 5″
• Airflow: Puller (reversible)
• Recommended for transmissions, power steering, and fuel

Features

• Efficient copper/aluminum tube & fin 8 pass cooler
• -6AN inlets
• 625 CFM reversible Dyno-Cool Straight Blade electric fan
• 8 pass cooler design
• Cooler assembly only
• Cooler is rated at 250psi working pressure and 300psi burst strength
• 10oz. Additional Fluid Capacity
• 7,500 BTU/ Hr
