Cooler Only

Descripción

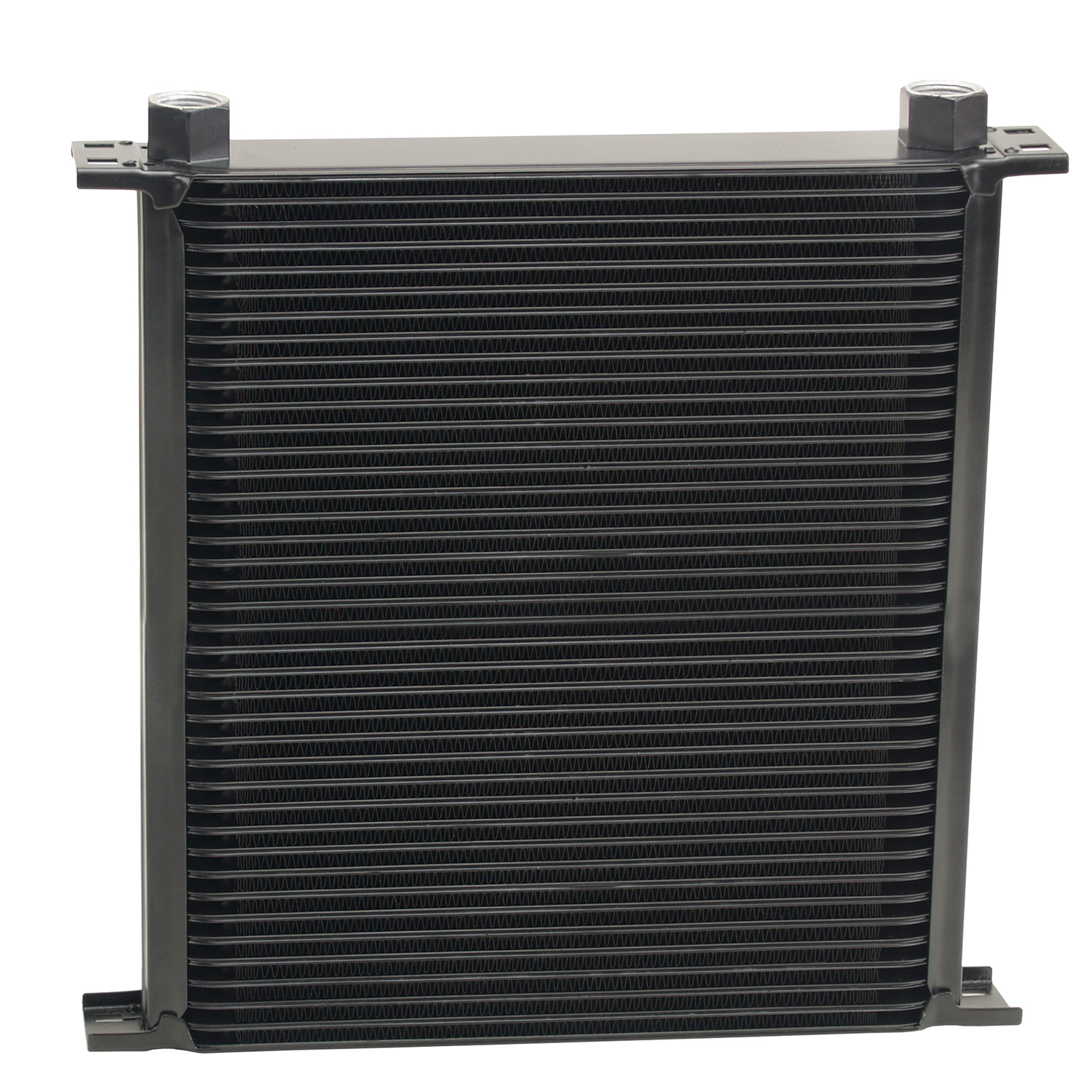

Our most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2″ deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.

Características

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 40 row cooler design
• Female -10AN (7/8-14) UNF O-ring inlets

  Derale Bracket Mounting Kits

Presupuesto

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN UNF o-ring female
• Width: 13″
• Height: 12-3/4″
• Depth: 2″
• Inlet dim: 10″
• Mounting: 12-1/4″ x 12″
• 67,000 BTU’s Per Hour
