Cooler Only

Descripción

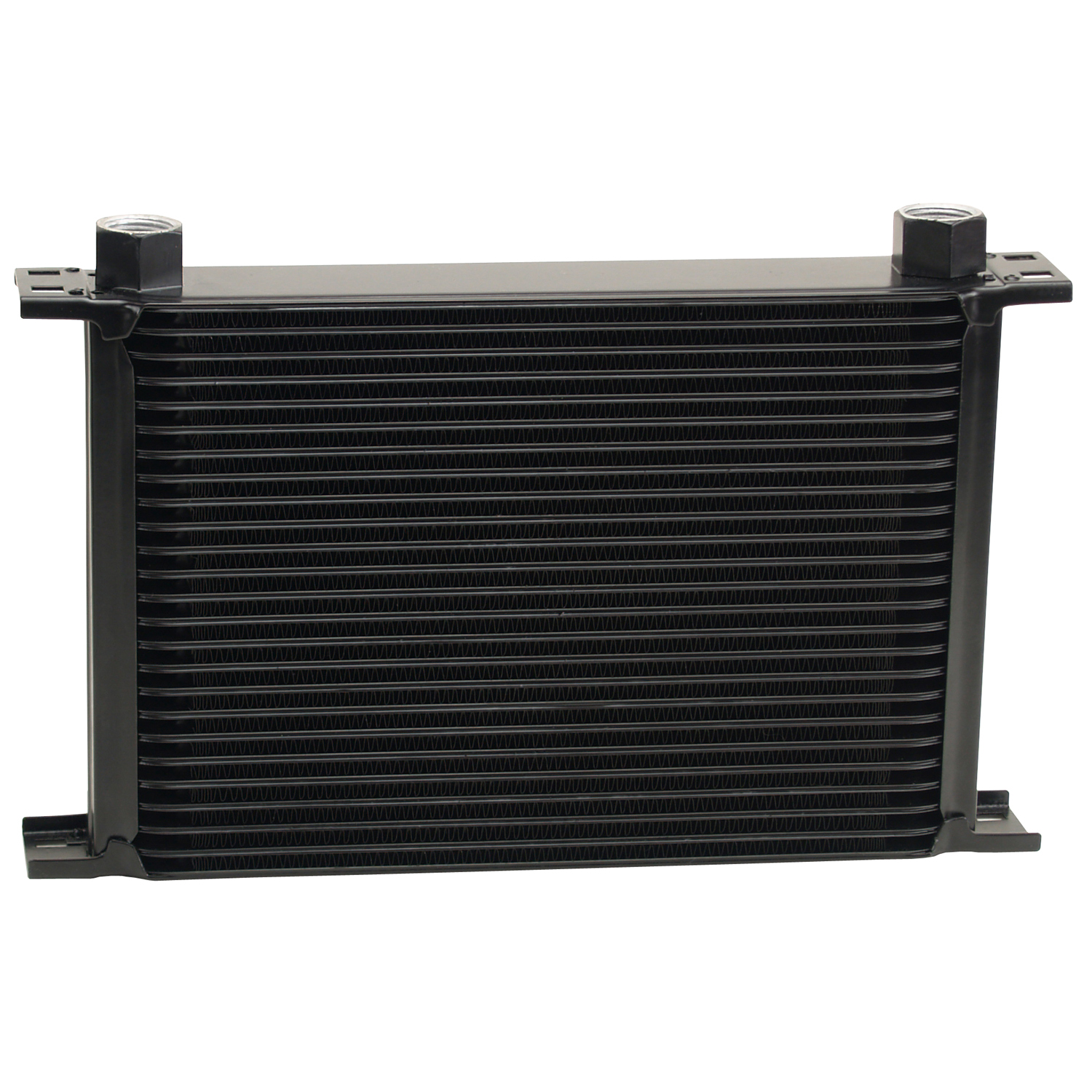

Our most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2″ deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.

Características

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 25 row cooler design

  Derale Bracket Mounting Kits

Presupuesto

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN UNF o-ring female

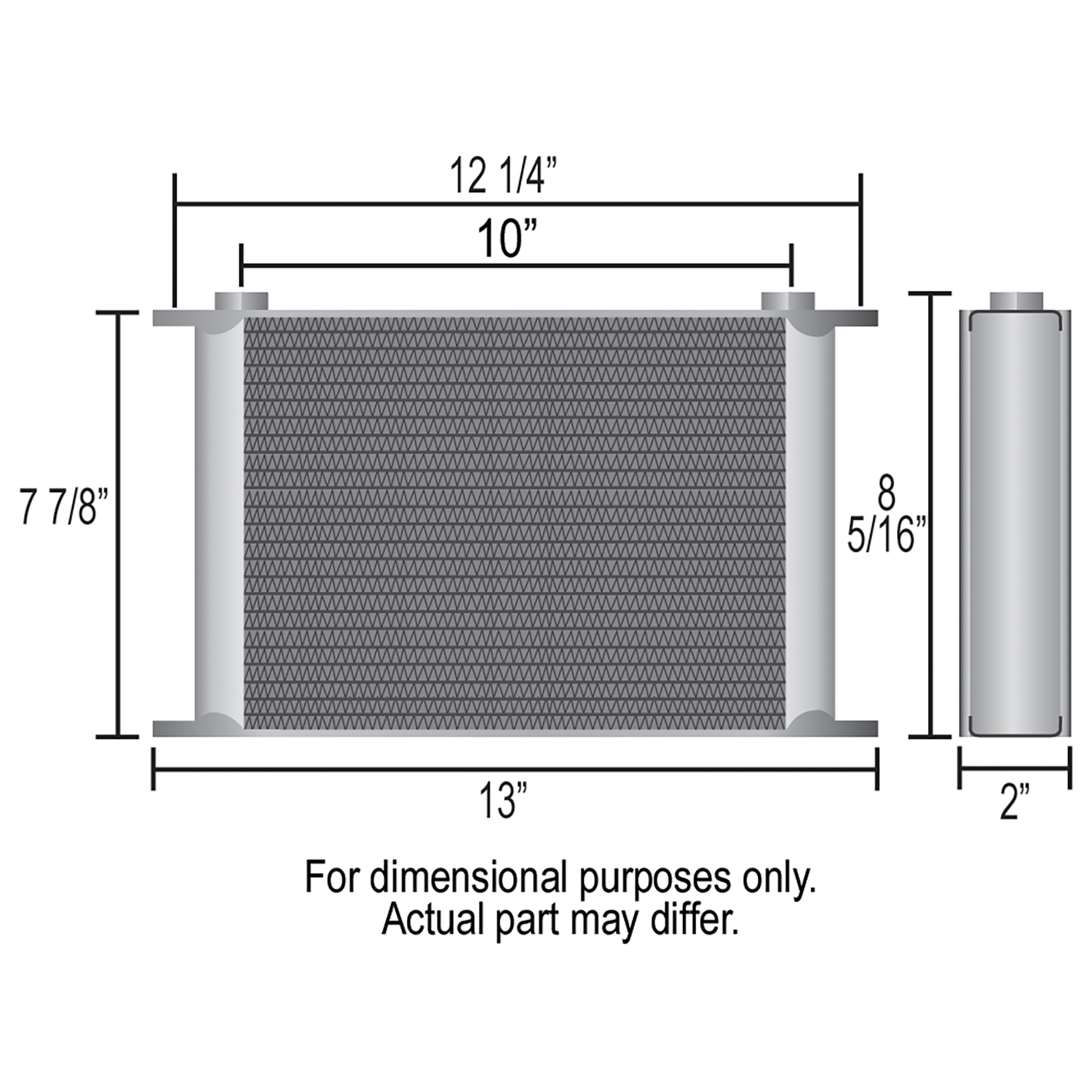

• Width: 13″
• Height: 8-5/16″
• Depth: 2″
• Inlet dim: 10″
• Mounting: 12-1/4″ x 7-5/8″
• 46,000 BTU’s Per Hour
