90° Swivel (7/8-14 ORB -8AN)

Descripción

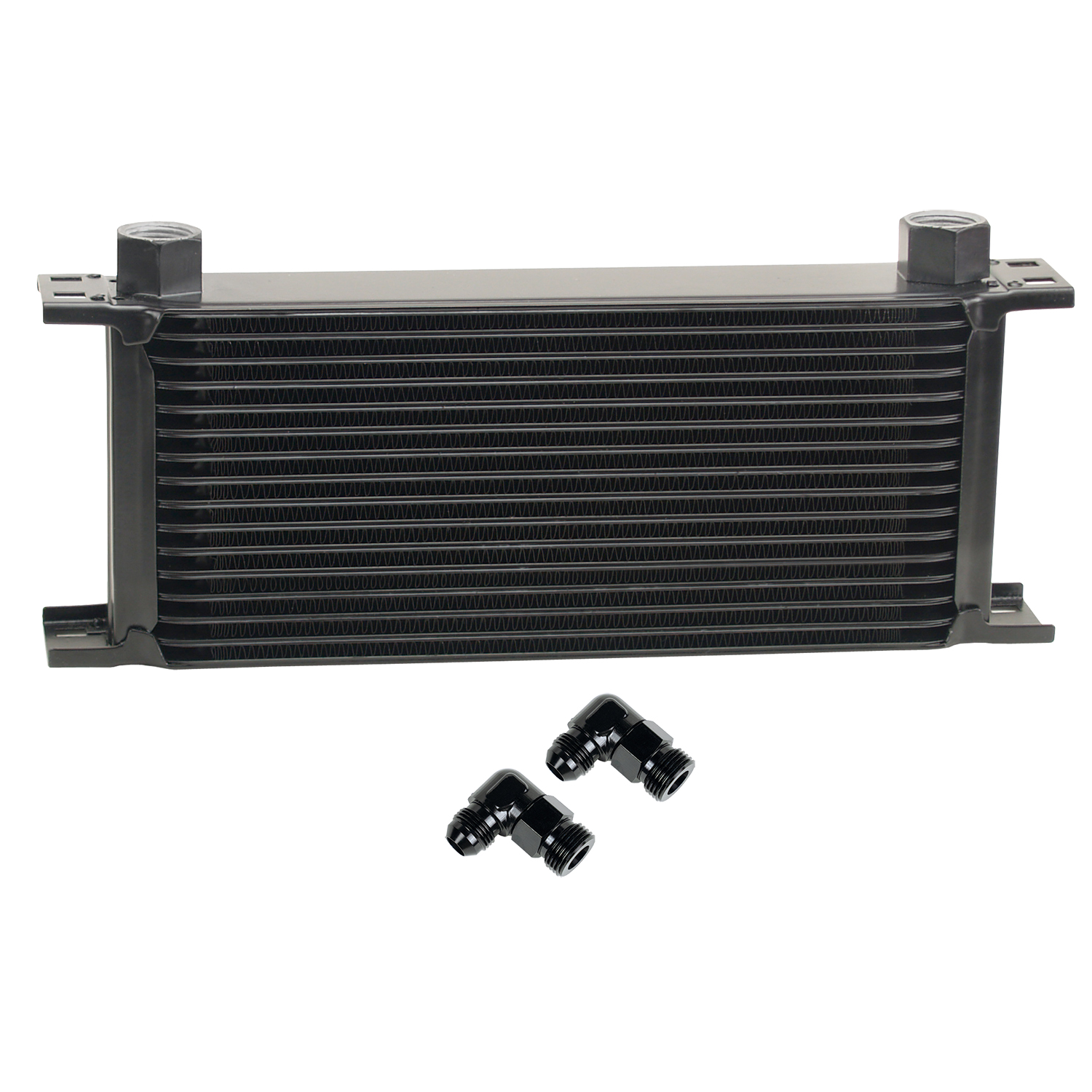

Our most efficient heat exchanger, the all aluminum 16 row Stacked Plate cooler features sturdy furnace brazed construction, full 2″ deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum 90° Swivel (7/8-14 ORB -8AN) male adapter fittings.

Features

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 16 row cooler design
• Male 90° Swivel (7/8-14 ORB -8AN) Aluminum fittings
• 32,000 BTU’s Per Hour

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Fitting size: 90° Swivel (7/8-14 ORB -8AN)
• Width: 13″
• Height: 5-9/16″
• Depth: 2″
• Inlet dim: 10″
• Mounting: 12-1/4″ x 4-7/8″
• 32,000 BTU’s Per Hour
