40 Row Series 10000 Stack Plate Cooler, -8AN

Descripción

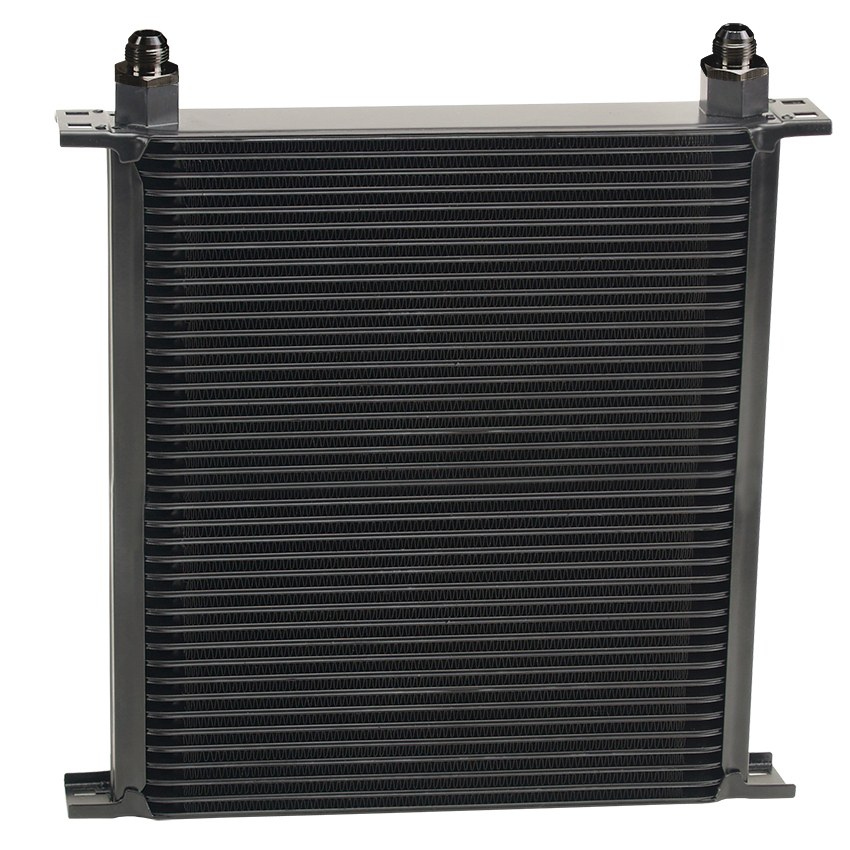

Our most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2″ deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -8AN male adapter fittings.

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -10AN male

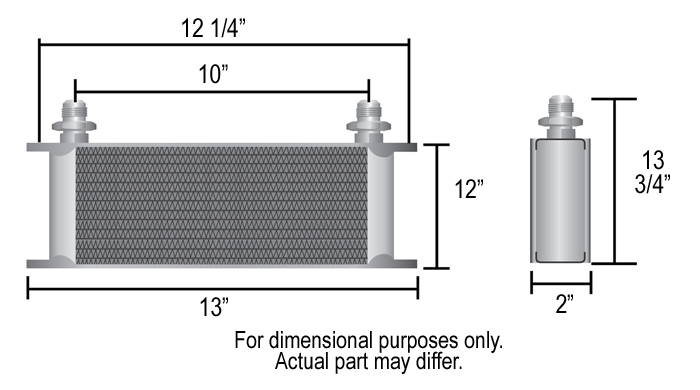

• Width: 13″
• Height: 13 3/4″
• Depth: 2″
• Inlet dim: 10″
• Mounting: 12 1/4″ x 12″
• 26oz additional fluid capacity

Features

• Designed for engine and transmission cooling
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• High efficiency Stacked Plate 40 row cooler
• Male -8AN aluminum O-ring inlet fittings
• 67,000 BTU’s Per Hour
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
