18 Row Series 8000 Plate & Fin Cooler with Inverted Flare Inlets

Descripción

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8″ wide plates, 3/4″ embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This is a cooler only.

Presupuesto

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 1/2″-20 Inverted Flare
• BTU: 20000

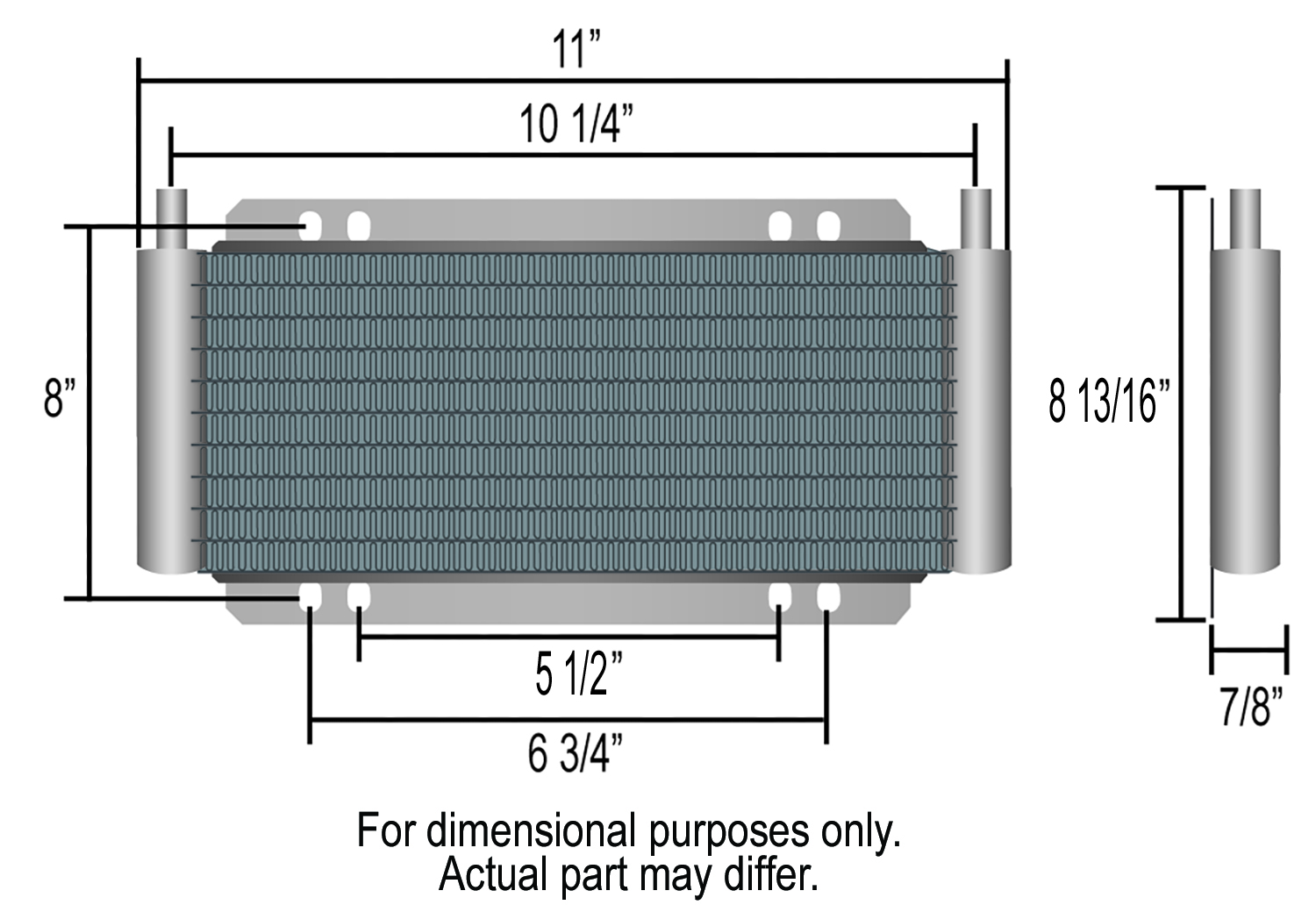

• Ancho: 11″
• Height: 8-13/16″
• Depth: 7/8″
• Inlet dim: 10-1/4″
• Mounting: 6-3/4″ x 8″

Características

• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Improves transmission performance
• Sturdy furnace-brazed aluminum construction
• All Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 18 row cooler design
• 3/4″ embossed turbulators maximize cooling & minimize pressure drop
• 20000 BTU
• Fluid Capacity: 5.5 oz
• Cooler Only
