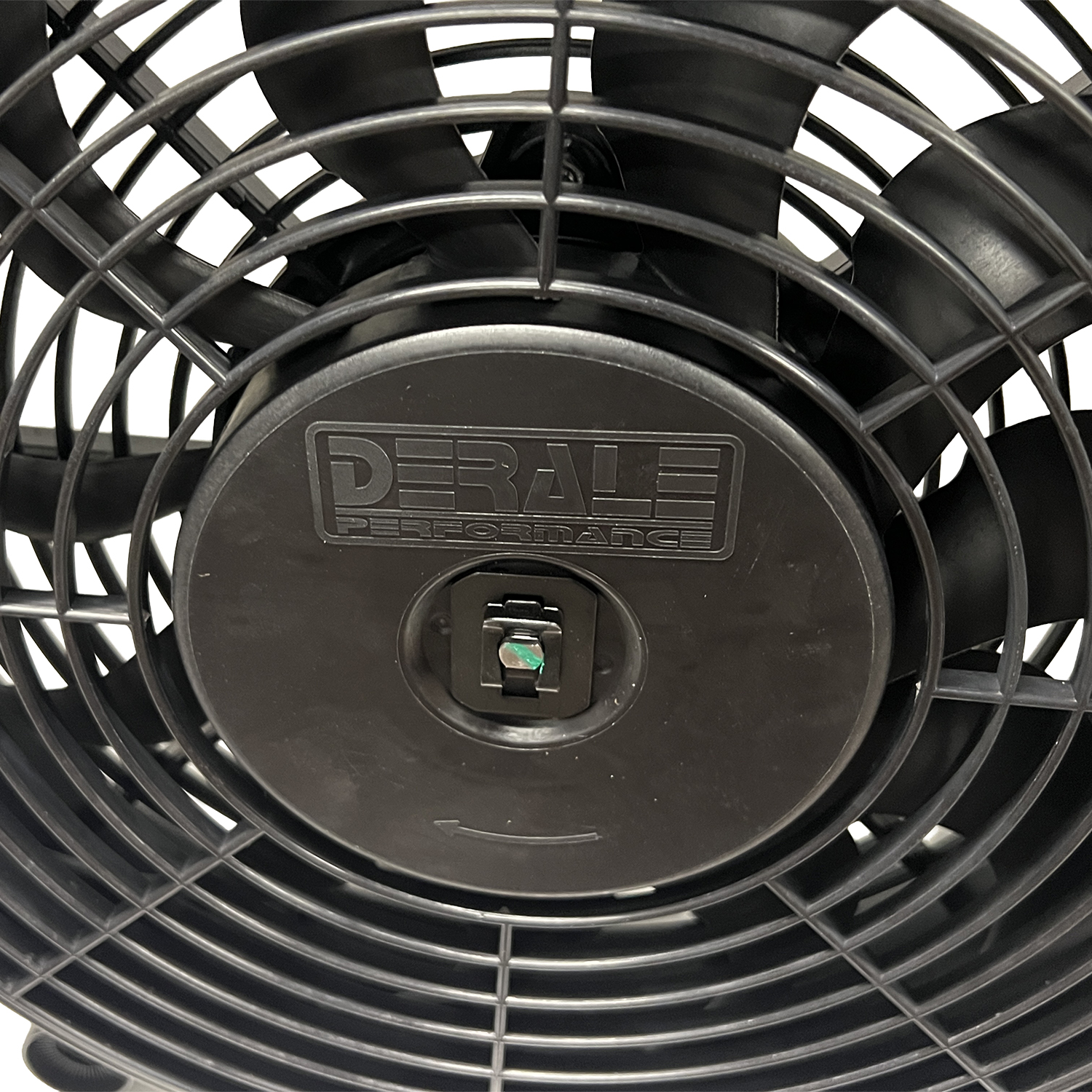

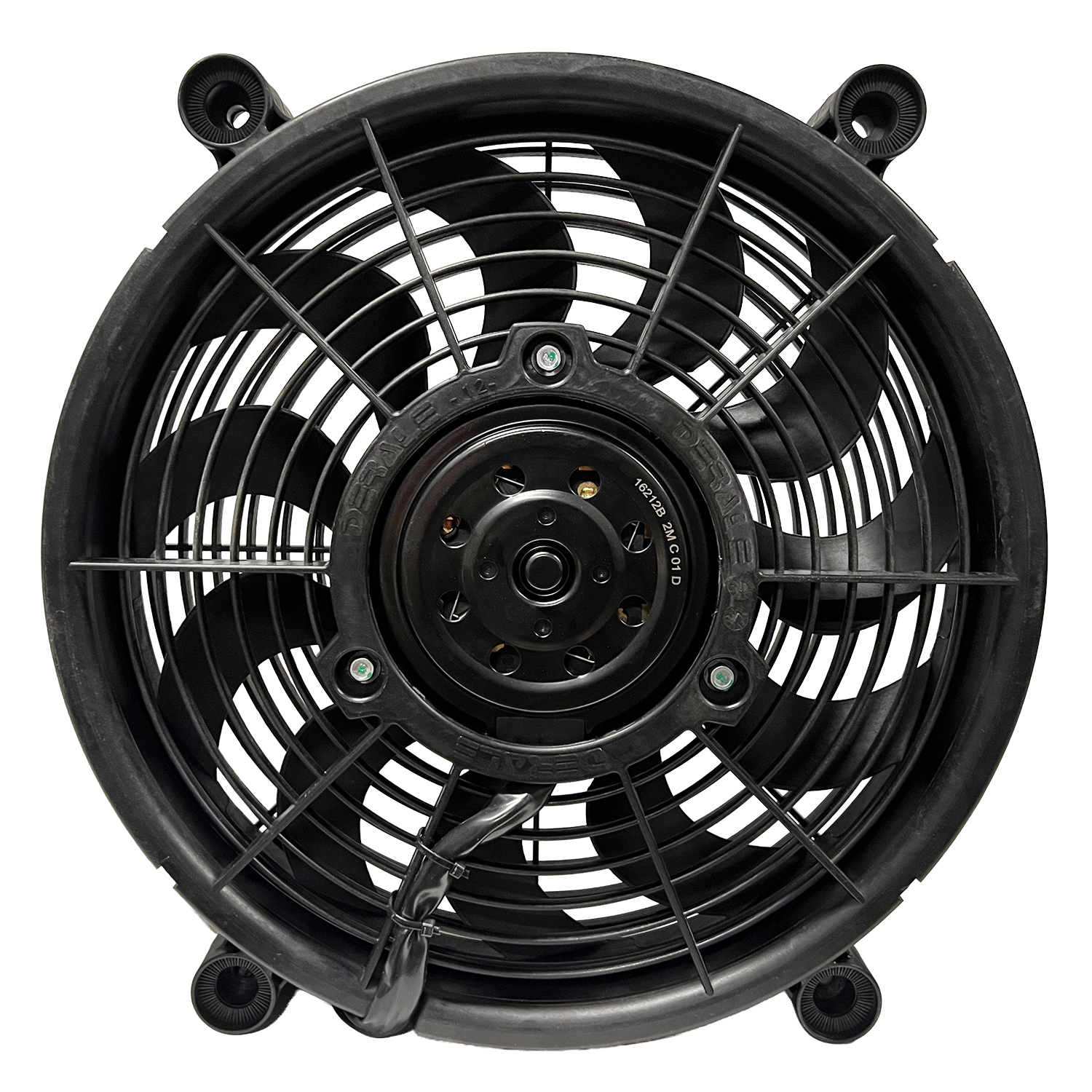

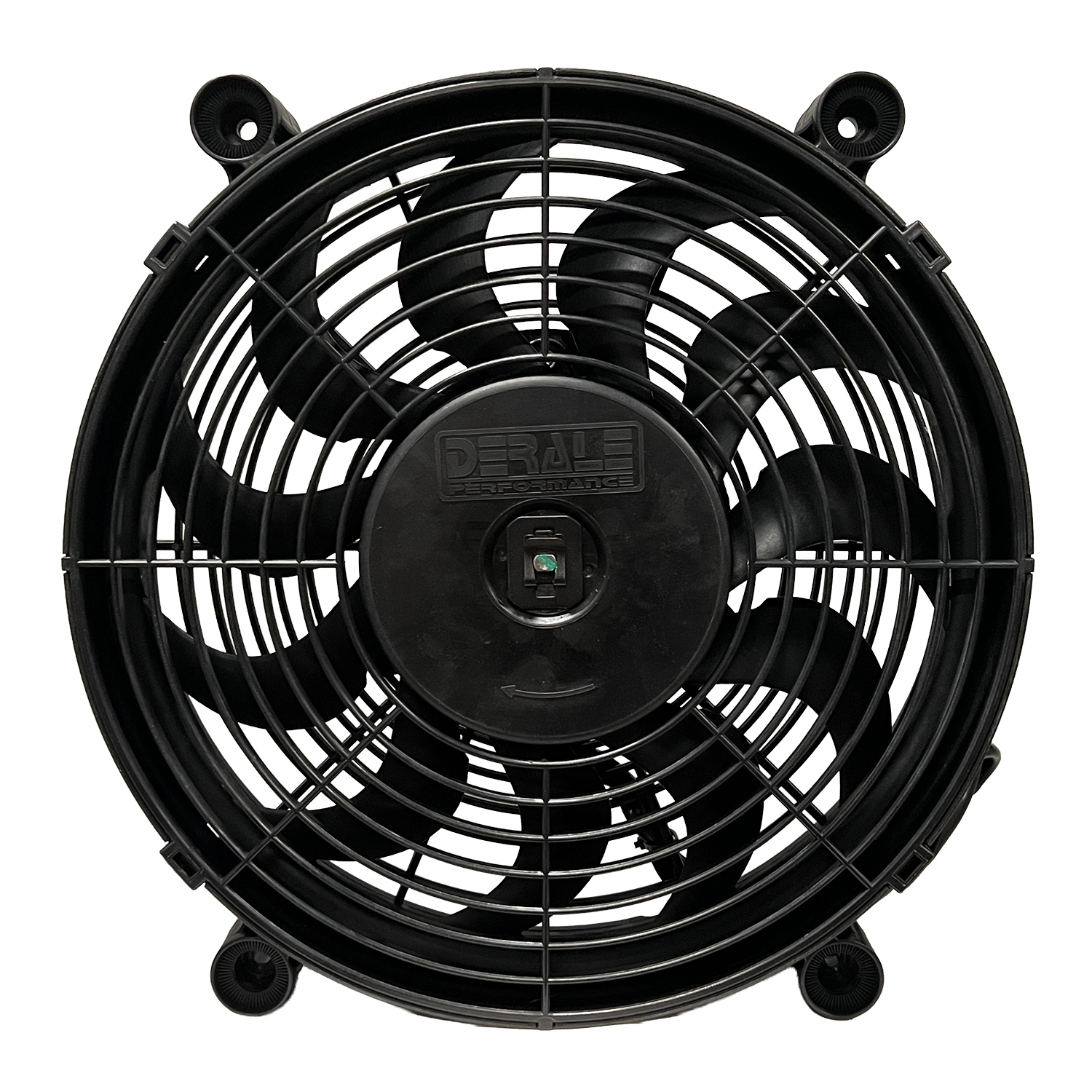

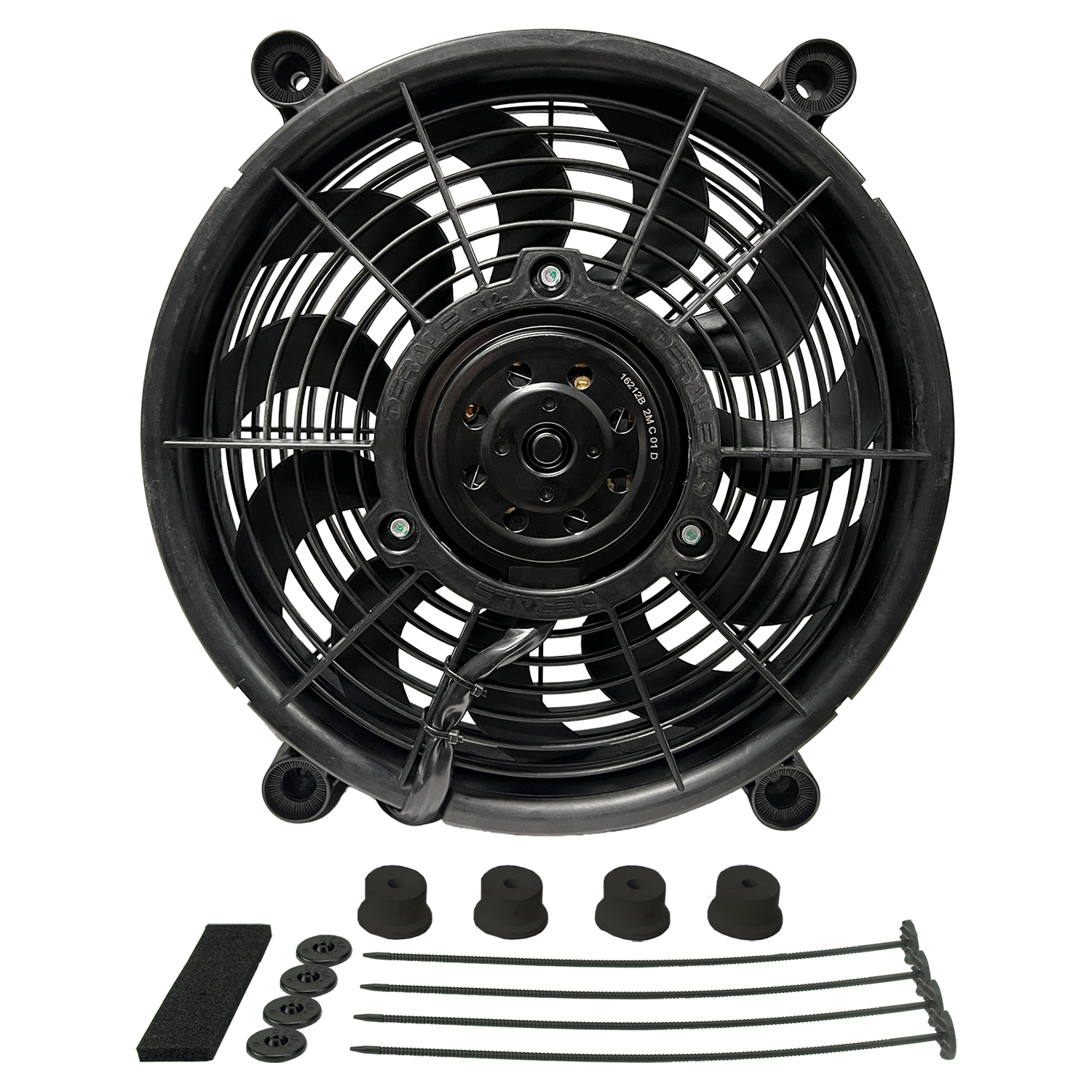

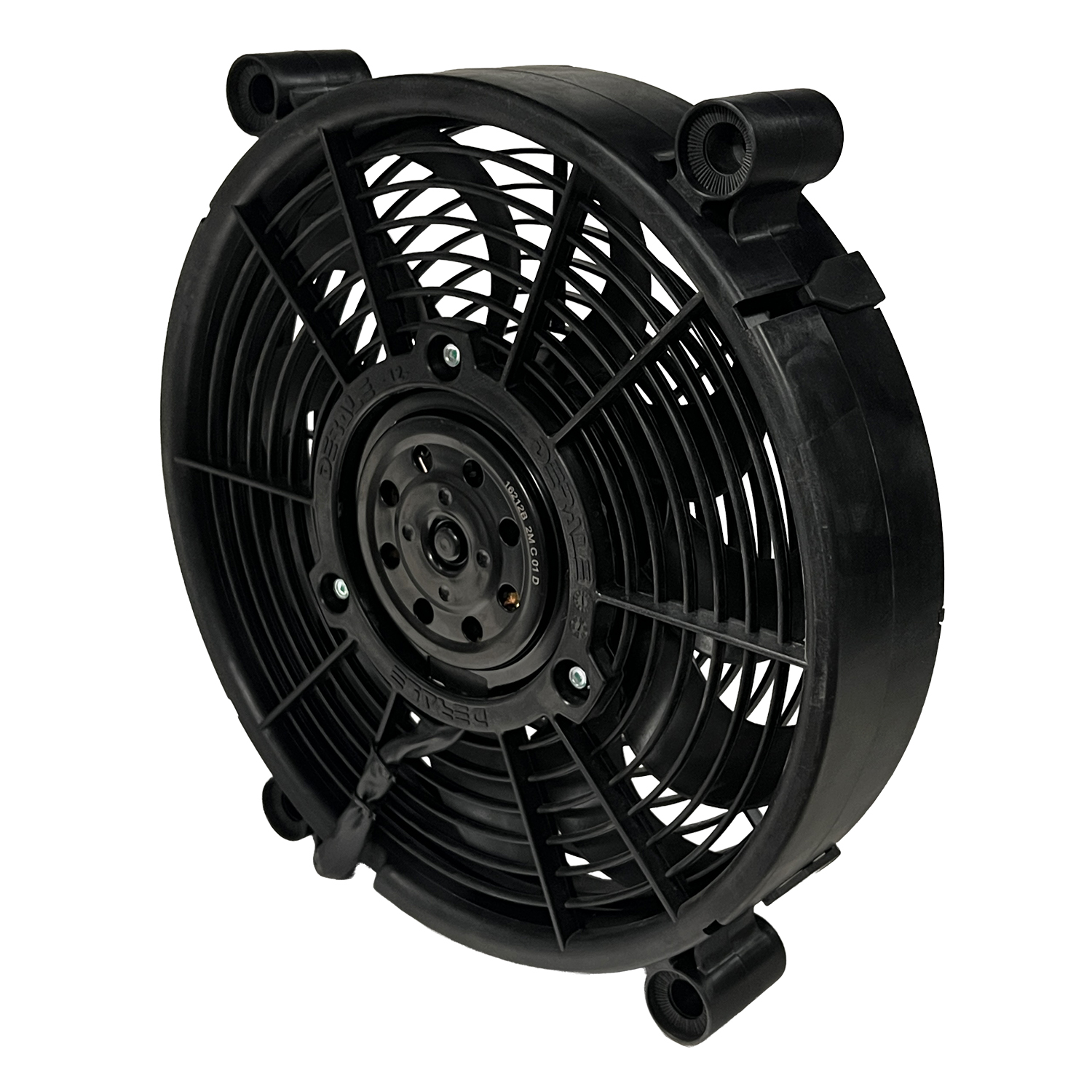

12” H.O. Single RAD Pusher/Puller Fan with Standard Mount Kit

Description

Our most compact version in our High Output Single RAD fan series, this 12″ fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 1450 CFM while drawing up to 21 amps.

Specifications

• CFM high/low: 1450/1000
• Amp draw high/low: 21/15
• Width: 12-3/4″
• Height: 12-3/4″
• Depth: 2-5/8″
• Mounting: 8-1/4″ x 11-5/8″

Features

• Mounts as a Pusher or Puller without flipping blade or switching motor leads
• State-of-the-art symmetrical design
• High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
• 1450 CFM on high speed / 1000 CFM on low speed
